HVAC
6
SR
NO.

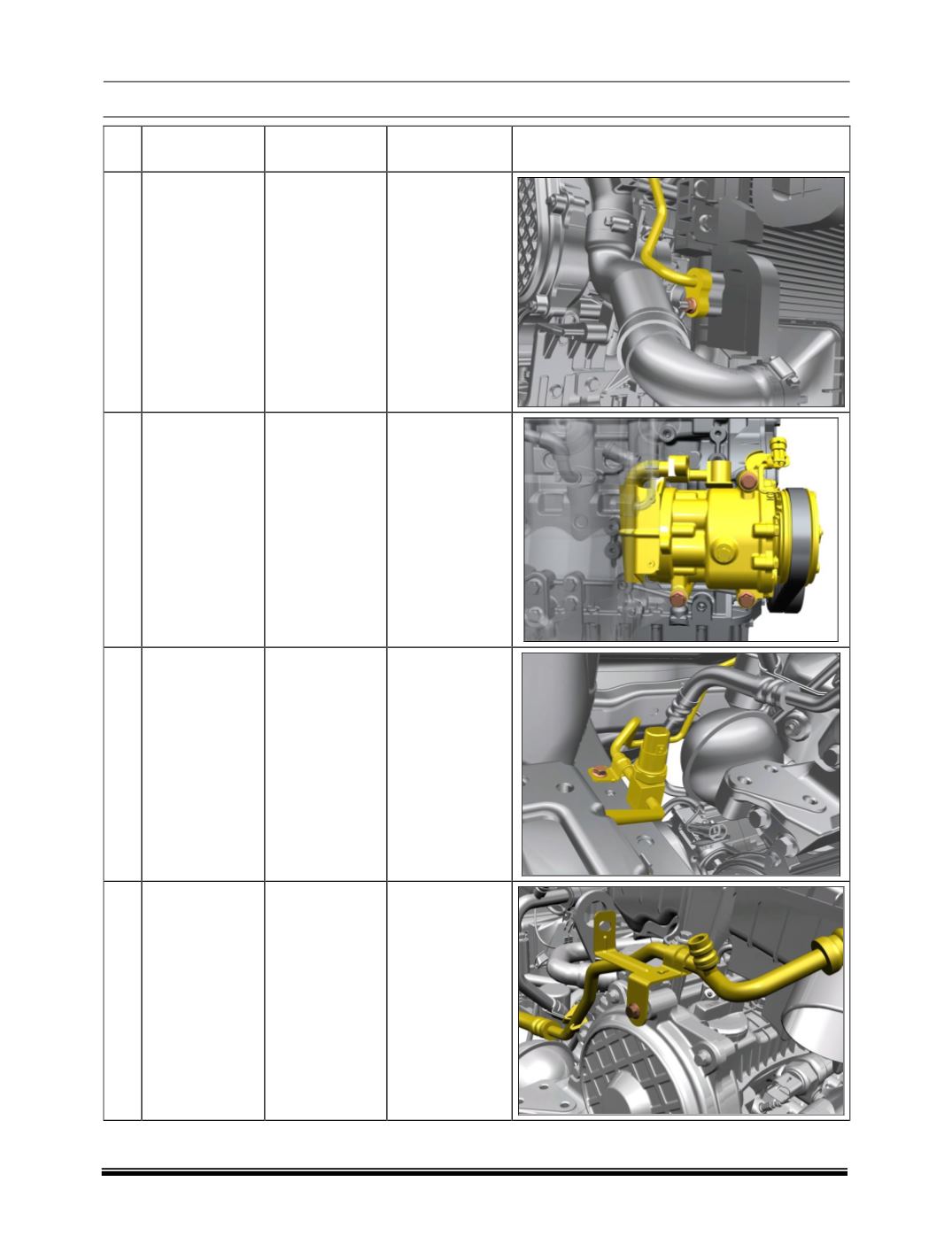

DESCRIPTION
FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
4B
Refrigerant line
on
condenser
outlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 – 8
5
Compressor
mounting
M8 X 95
30
6A
TUBE
ASSY,LIQUID
LINE
M6 X 16
6 - 8
6C
DISCHARGE
HOSE ASSY -
1.5L
M6 X 20
6 - 8
