TRANSAXLE TA6300 AMT

49

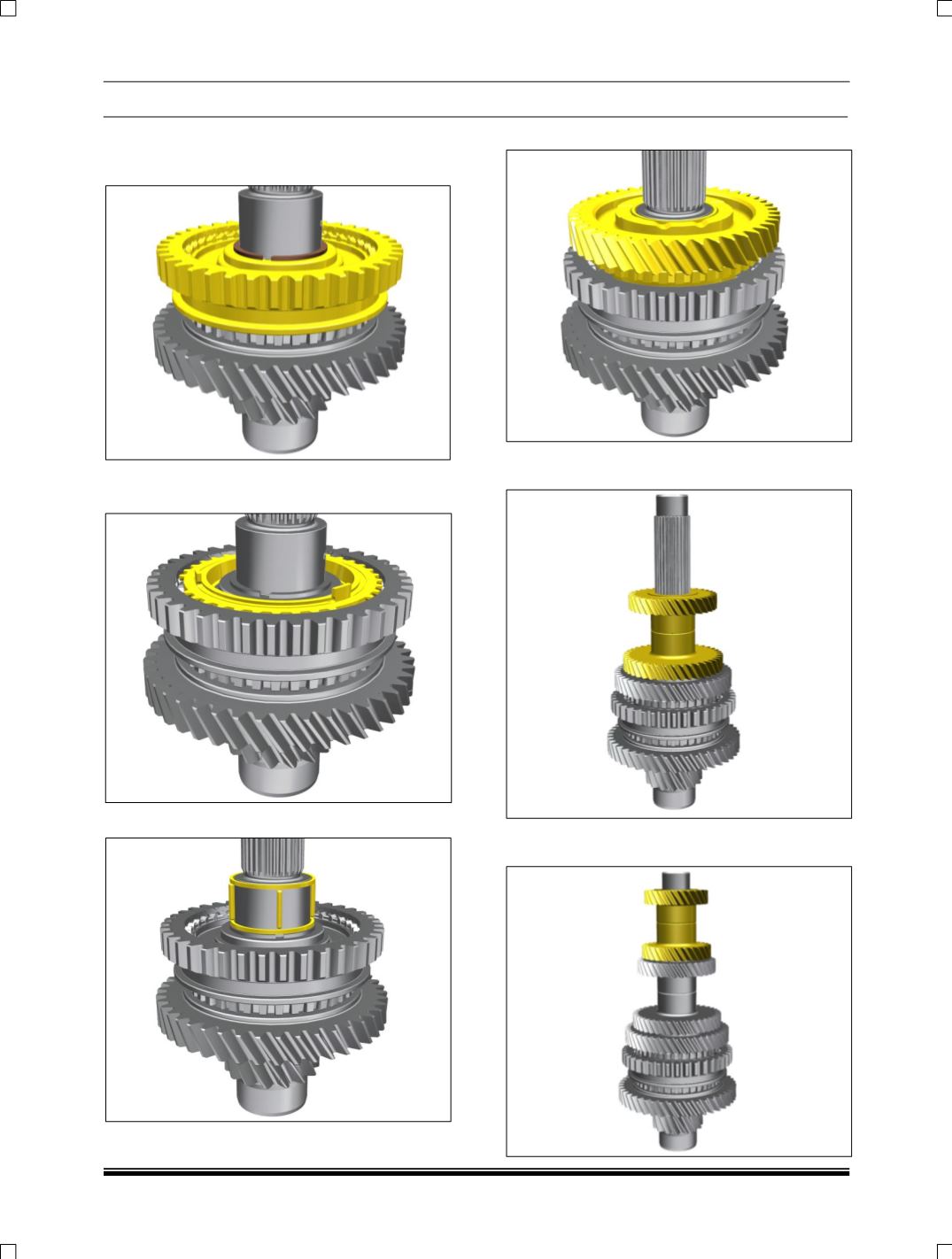

4. Place the engaging gear assembly 1st and

2nd such that the reverse gear tooth over it is

towards the 2nd gear. Lock the snap ring.

5. Place Assy twin cone 1

st

/2

nd

on engaging

gear.

6. Place Needle Cage

7. Place the 2nd Gear on ring.

8. Place sub-assembly 3

rd

& 4

th

gear on lay

shaft.

9. Place sub-assembly 5

th

& 6

th

gear on lay

shaft.
