1.5L REVOTORQ BS VI ENGINE

162

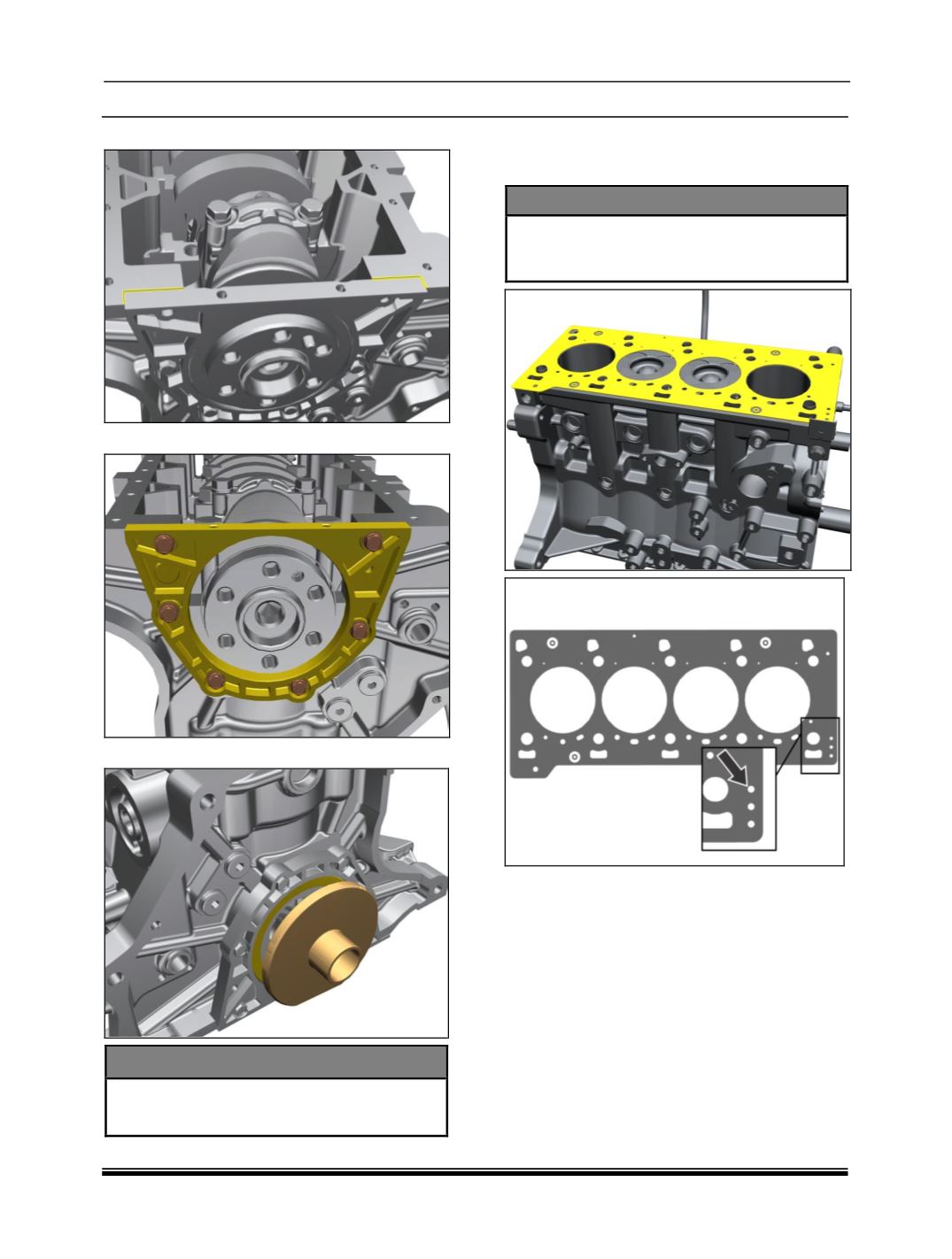

13. Apply sealant to the cover as shown.

14. Install the crankshaft oil seal cover.

15. Fit the crankshaft oil seal.

SPECIAL TOOL



Drift crankshaft rear cover oil seal -:

2702 5890 06 08

iv. FITMENT OF CYLINDER HEAD ON

CYLINDER BLOCK

1. Place the Cylinder Head gasket as shown.

NOTE



Ensure that the "TOP" mark on the gasket

is facing towards the intake manifold side

of the block.

Refer ‘Assembly Clearances’ section for selection

table.
