1.2L REVOTRON ENGINE
181

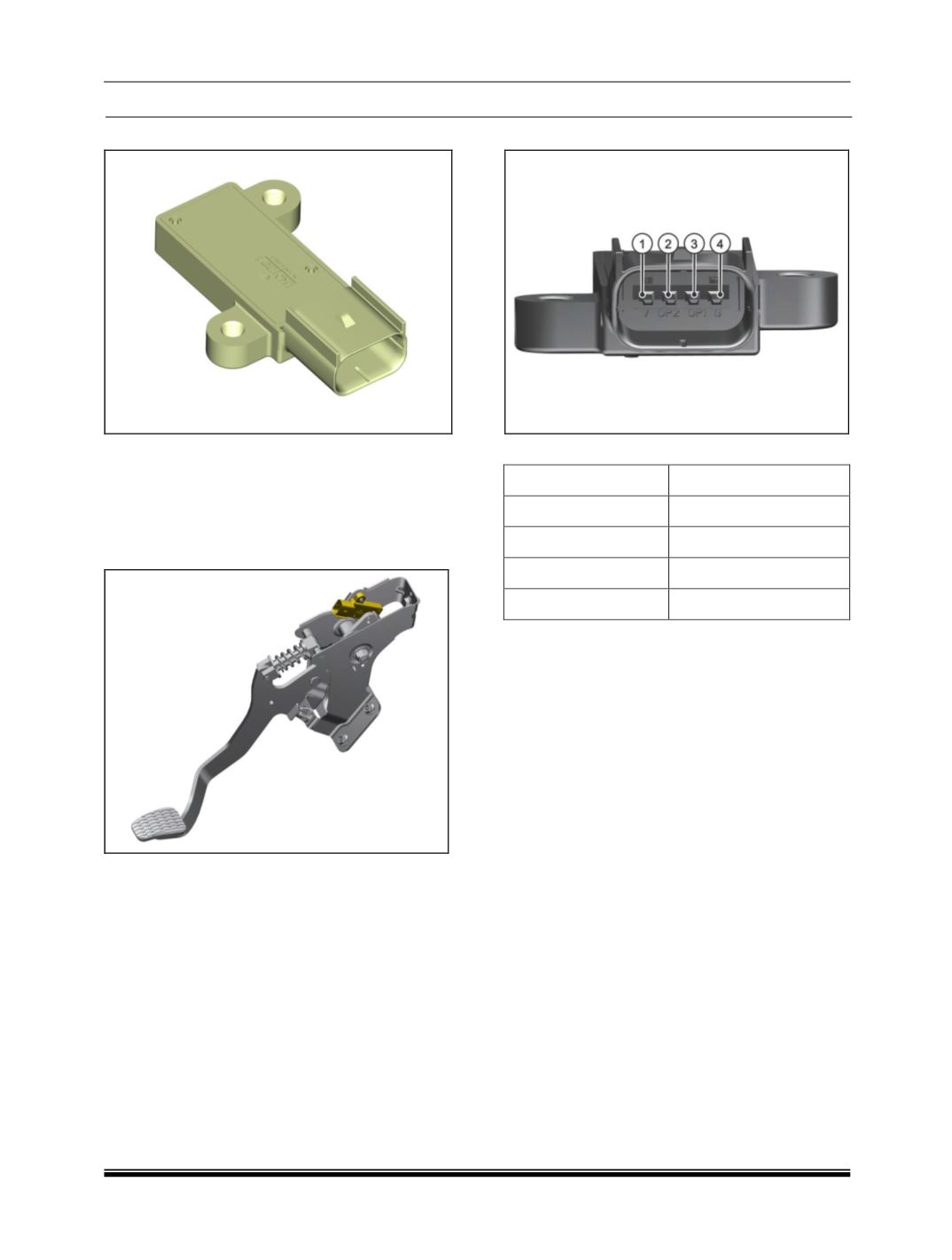

III. CLUTCH SWITCH
COMPONENT DETAILS
It provides information to ECU before the gear
change, which helps in faster gear change
detection. Based on this input the ECU maintains
optimum fuel supply.
COMPONENT LOCATION
Principle of Operation :
Hall Effect Based
Position Sensing
Output Type :
Open Collector, Active Low
Sensor Type :
Non Contact Type
Operating Voltage Range :
6V to 18V
Operating Current :
25mA Max
Operating Temperature :
-30
0
C to 85
0
C
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
+ VE
2
O/P - 2
3
O/P - 1
4
- VE
