NEXON BSVI - SERVICE MANUAL

1.2L REVOTRON ENGINE

146

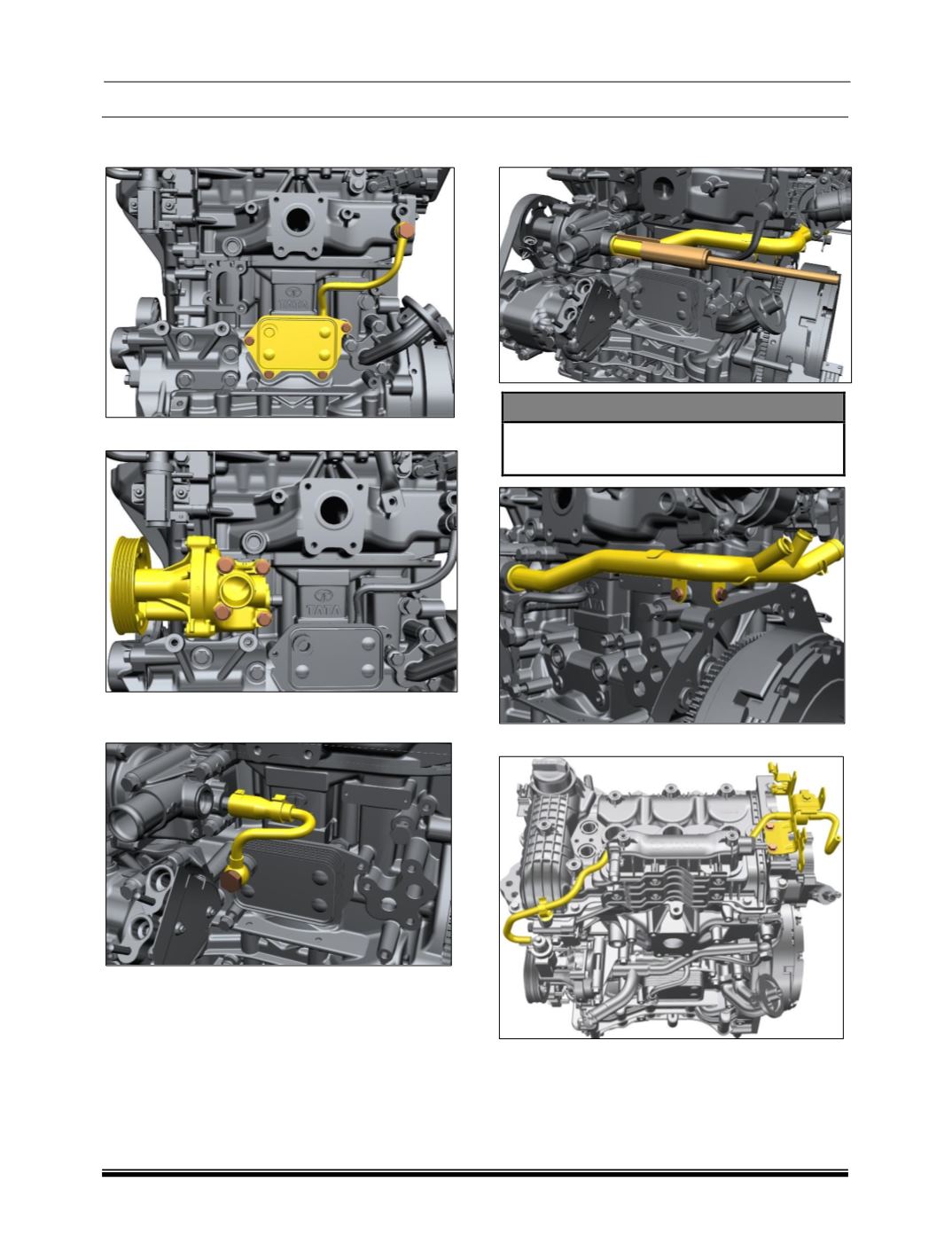

7. Install oil cooler assembly along with the oil

cooler outlet hose.

8. Install the water pump assembly.

9. Connect the oil cooler inlet hose between

water pump and oil cooler.

10. Install the water bypass tube using special

tool.

SPECIAL TOOL



Tool-Water pipe installation:-

5424 5890 20 02

11. Install the EVRV hose and its support bracket.
