1.2L REVOTRON ENGINE
110

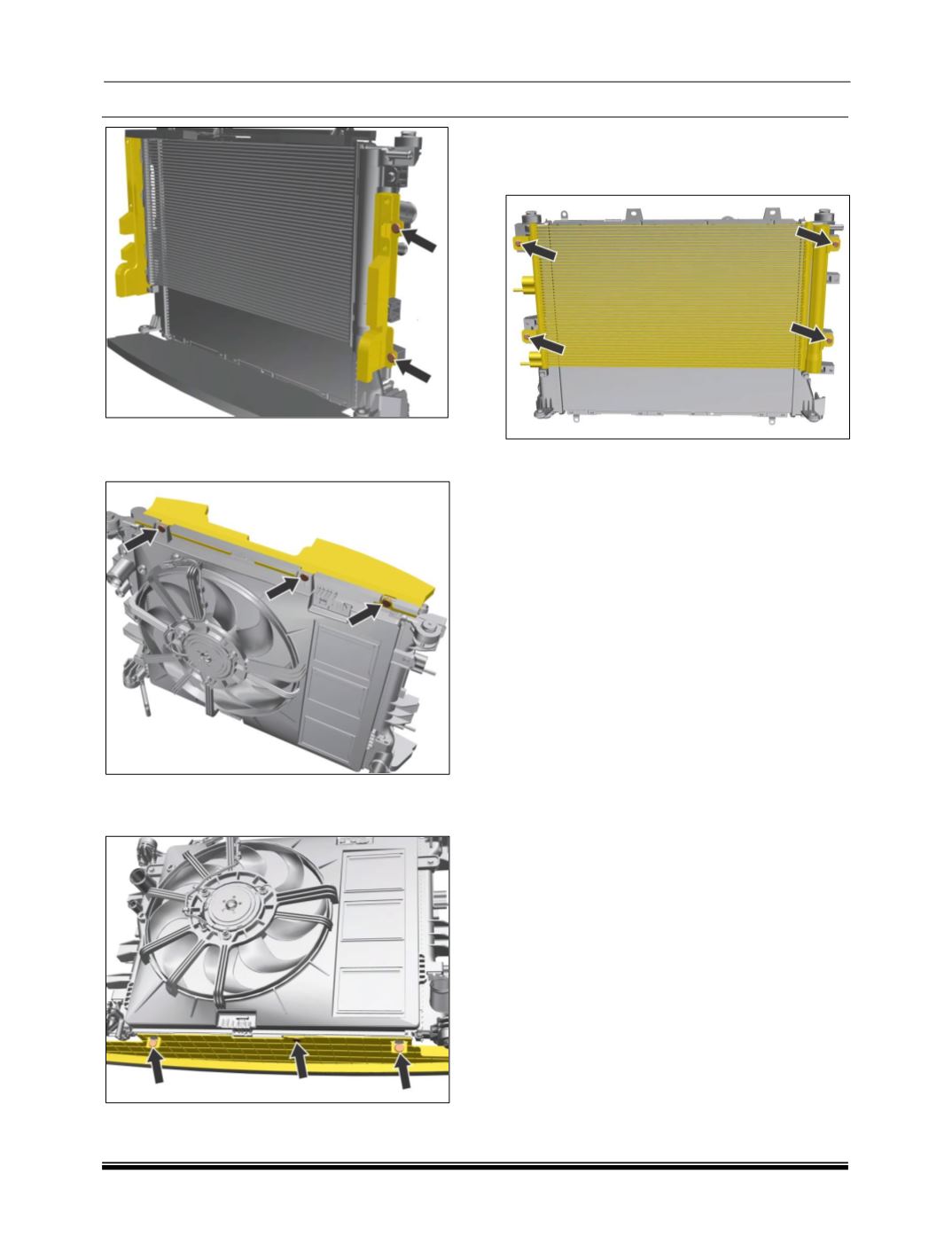

14.Pry out the sealing rivets and remove top
radiator sealing.
15.Pry out the sealing rivets and remove bottom
radiator sealing.
16.After removing the radiator and condenser
assembly out, separate the condenser from
the radiator, by removing fasteners.
FITMENT
For fitment follow the reverse order of removal.
Tighten the following fasteners to the
recommended torque.
