1.2L REVOTRON ENGINE
91

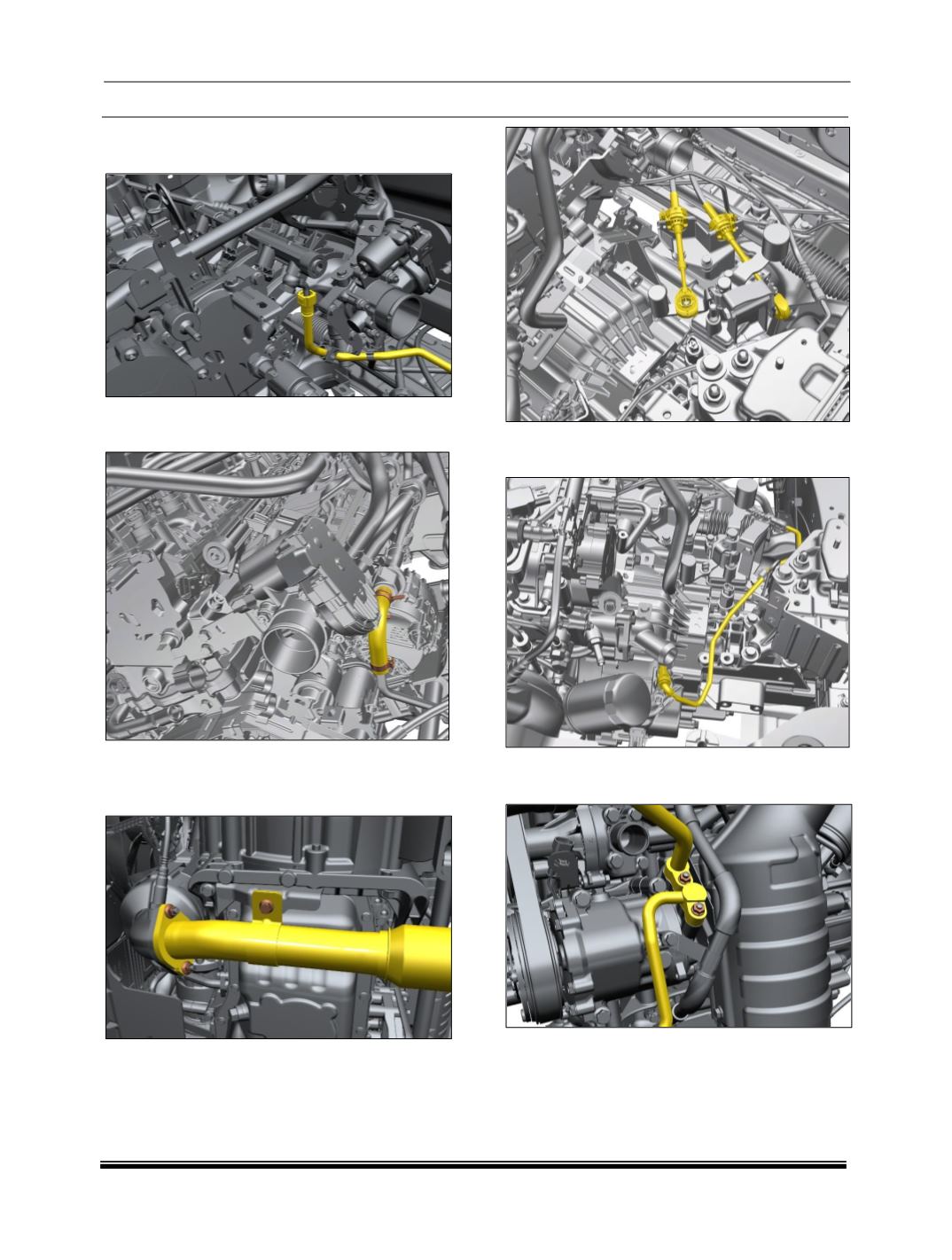

21. Disconnect the fuel supply connection to
Engine by relieving the fuel pressure.
22. Remove canister connections from canister
purge valve mounted on intake manifold.
23. To disconnect the exhaust front pipe loosen
the clamp near Catcon and remove the bolt
on the engine.
24. Disconnect the gear shift cable and selector
cable from the transaxle.
25. Disconnect the clutch cable connection from
the transaxle.
26. Disconnect suction and discharge hoses
connected to the compressor.
27. Remove front two tyres.
28. Disconnect the left and right drive shafts from
the vehicle.
29. Use suitable belt/chain to fix a zip crane to the
engine lifting hooks located at front and rear
of the engine.
