FATC

26

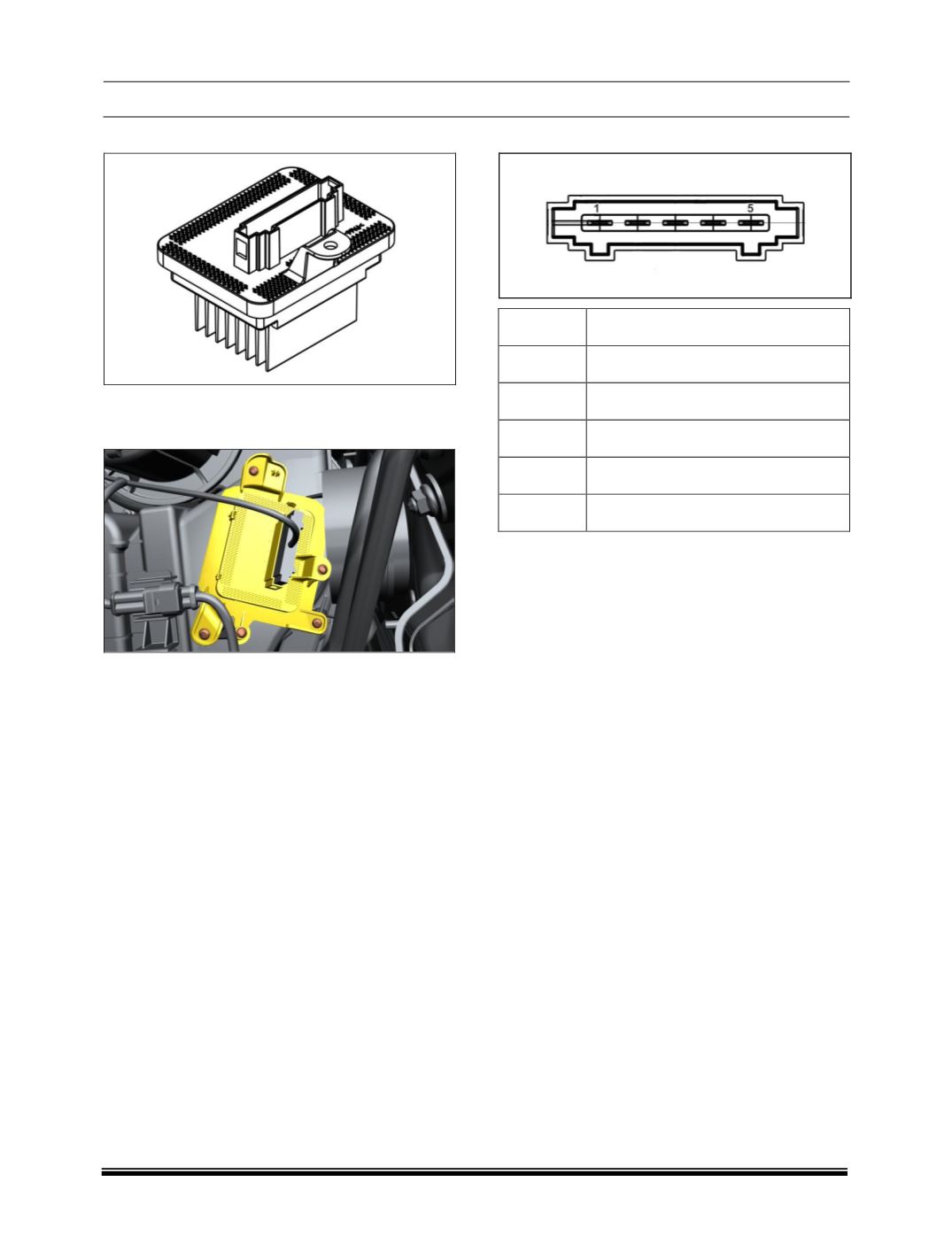

H. BLOWER CONTROL MODULE

Location:

It is mounted on evaporator housing.

PINOUT

PIN NO

DESCRIPTION

1

CONTROL

2

DIAGNOSTICS

3

- MOTOR

4

+ BAT

5

GND
