7. FATC UNIT

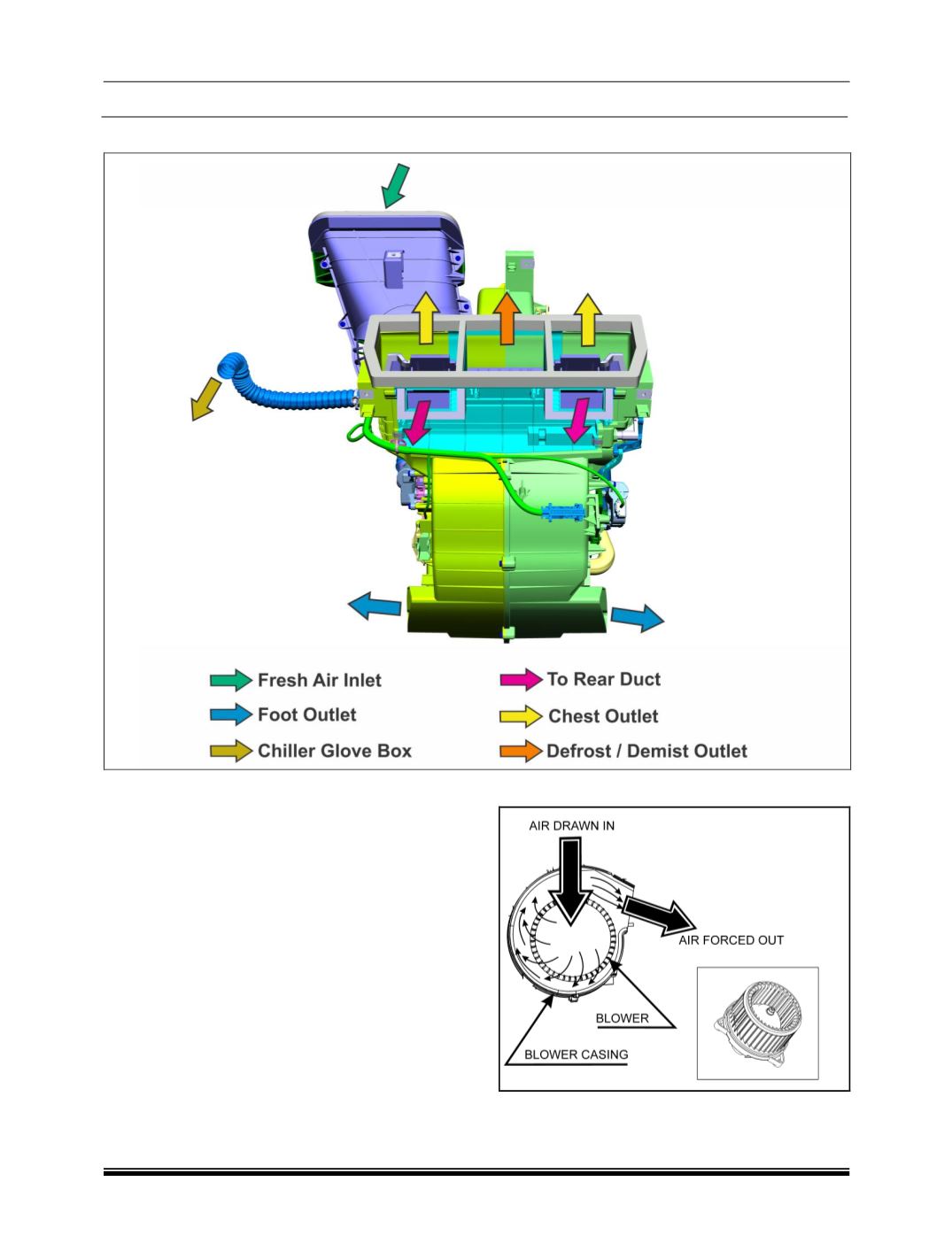

The front HVAC unit comprises of the following parts:

i. Blower

ii. LPM

iii. Evaporator Coil and TXV

iv. Heater Coil

v. Air Circulation Duct

i. BLOWER

The Blower is located on the right top side of the

HVAC unit when viewed from inside the car. It acts

as a centrifugal pump drawing in air from the center

and pushing it out diagonally. The air flows through

the evaporator and the heater coil and then to the

cabin. The Blower speed is control by blower resis-

tor.
