HV ELECTRICAL SYSTEM
10

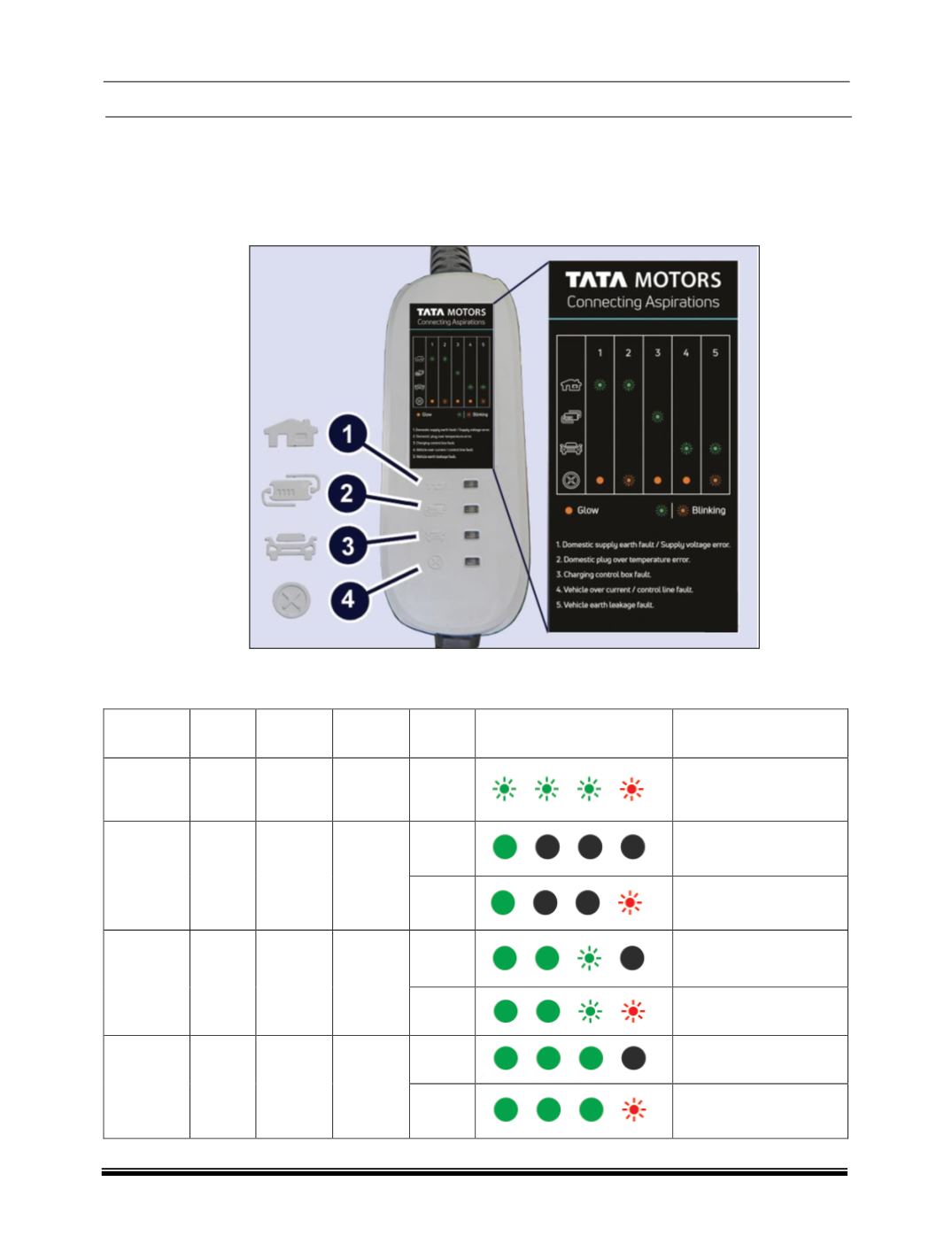

NORMAL CHARGING CONTROL BOX INDICATIONS:
1.Home
2.Control Box
3.Vehicle
4.Fault
Normal Charging Control Box
Normal Charging control box indications
Working
state
Home
Control
box
Vehicle
Fault
Example
Description
Self-
inspection
state
Blink
Blink
Blink
Blink
Self-inspection
for
system
Standby
state
On
Off
Off
Off
No fault
Blink
Plug temperature is
high
Charging
state
On
On
Blink
Off
No fault
Blink
Plug temperature is
high
Charging
stopped
On
On
On
Off
No fault
Blink
Plug temperature is
high
