ELECTRICAL
102

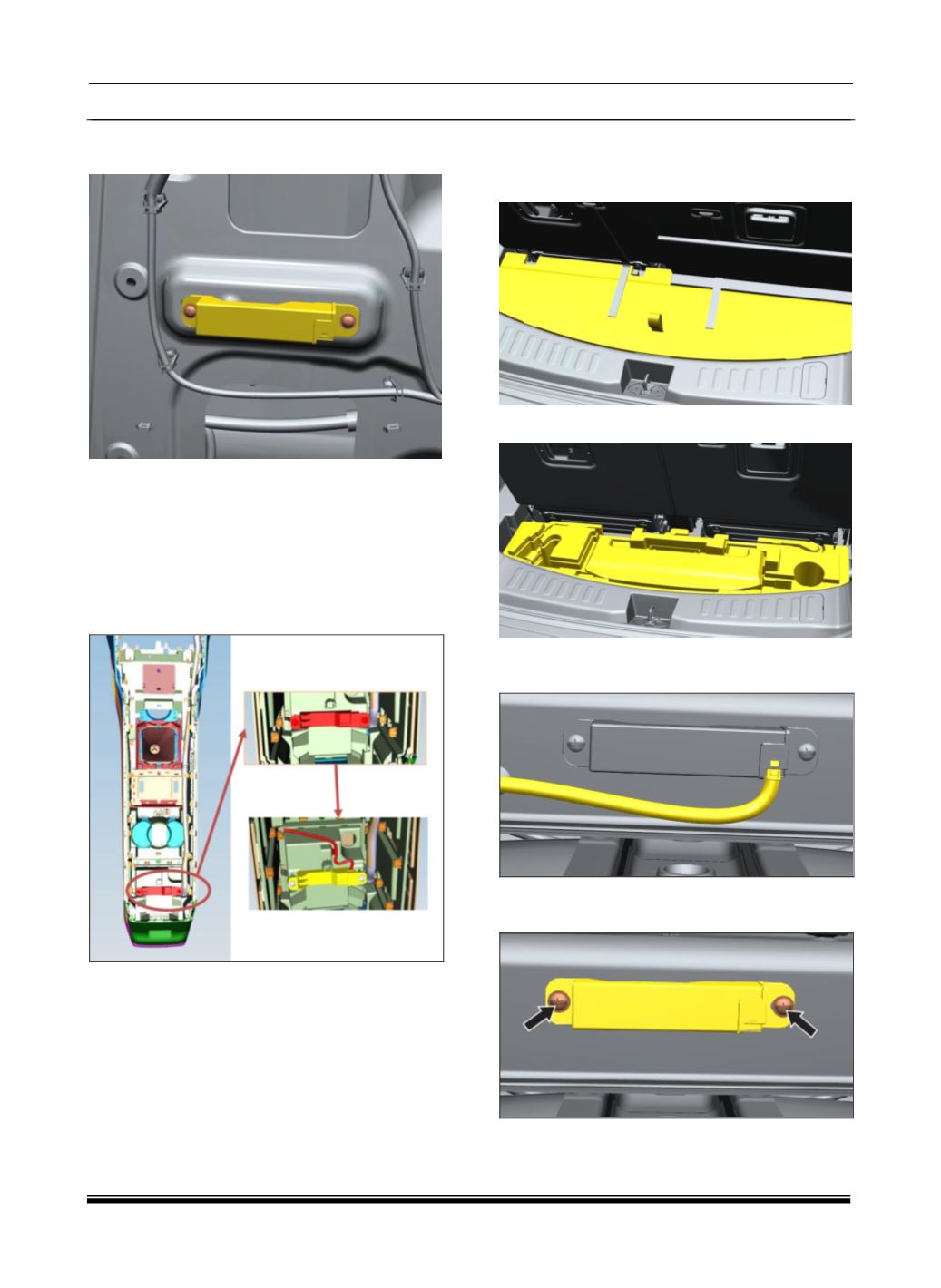

3. Remove the mounting fasteners and take out
the LF antenna.
B. Centre console antenna.
4. Remove the arm rest and console (
Refer Body
Section for removal procedure).
5. Disconnect all the electrical connections to the
units on the console bin.
6. Remove the mounting screws and take out the
LF antenna.
C. Tailgate antenna
7. Remove the tailgate sill cover. (
Refer Body
Section for removal procedure).
8. Remove tool kit tray along with tools.
9. Disconnect the electrical connection to the
tailgate antenna.
10.Remove the mounting screw and take out the
tailgate antenna.
REFITMENT
Follow the removal process in reverse.
