661 / 745
ELECTRICAL
19

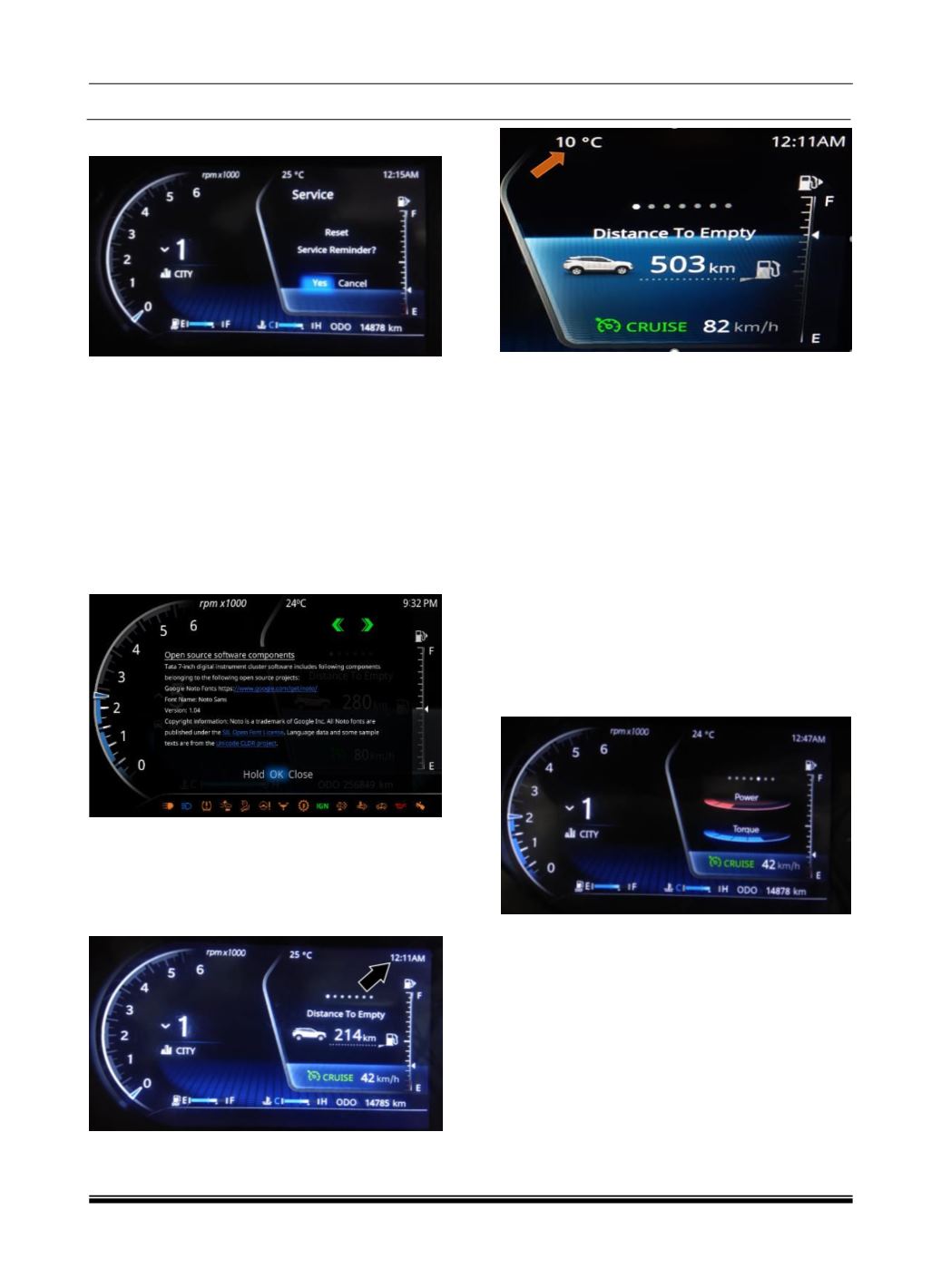

Screen.
User can reset (Yes / Cancel) the Service
Reminder by UP / DOWN & SET Buttons.
NOTE
In the Setting menu if there is no user input for 10
sec the previous screen shall be displayed.
12. About Screen
On pressing set button it displays open source
license disclosure
13. Clock
Instrument Cluster equipped with digital clock
which indicates current time in 12 / 24 hours
mode.
14.
Outside ambient temperature
This displays outside ambient temperature in units
of °C with the resolution of 1 °C.
The temperature sensor is in the front bumper of
the vehicle, therefore the temperature reading can
be affected by heat reflection from the road
surface, engine heat and the exhaust from
surrounding traffic.
This can cause an incorrect temperature reading
when your speed is under low speeds (30 km/h)
or when stopped.
Note: If display shows OAT temp as “- - “, take
your car to a TATA authorized service Centre.
15. Power and Torque
This feature indicates the value of Power and
Torque delivered by engine in the particular
driving condition.
