FATC
29

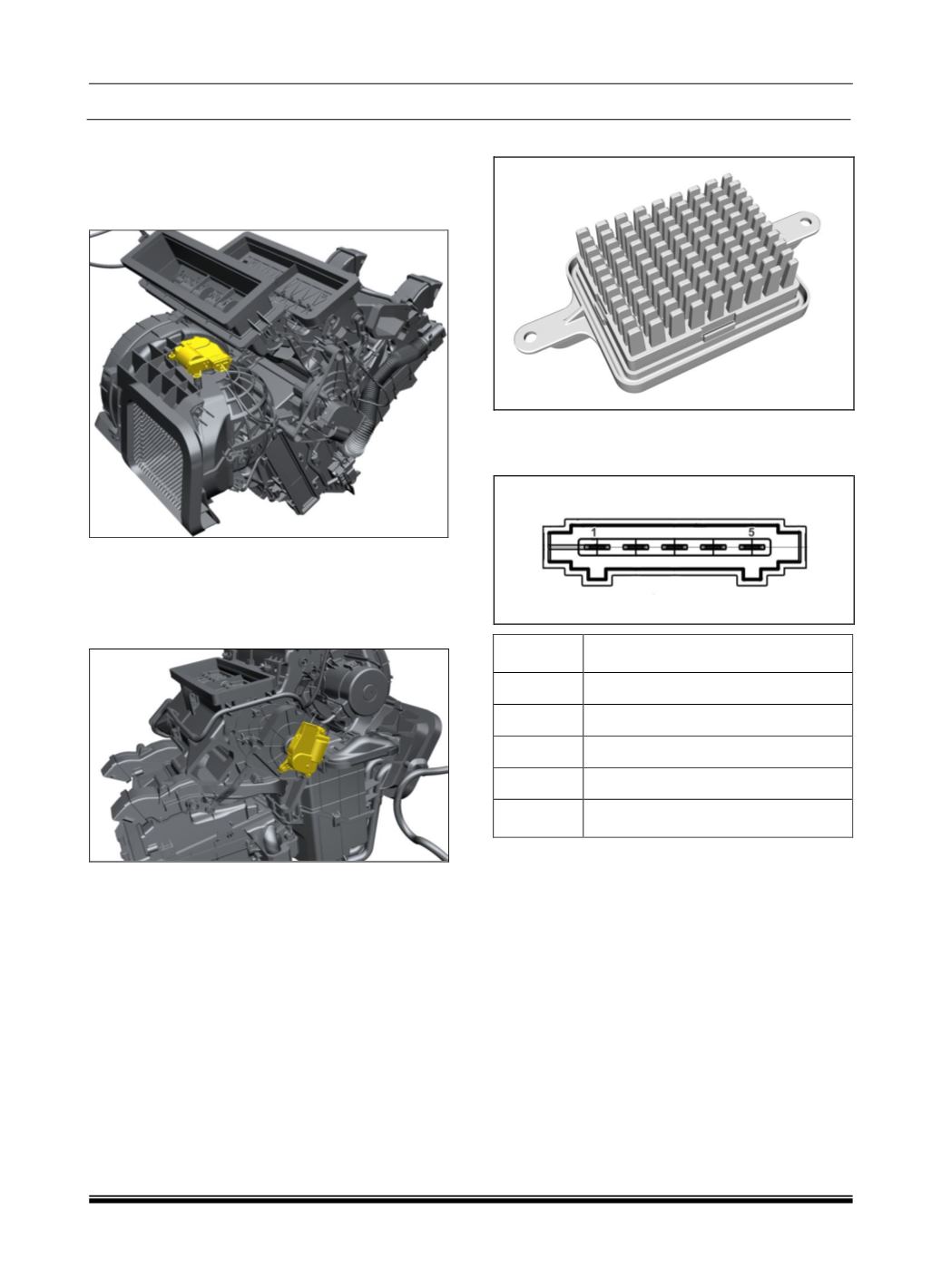

G. TEMPERATURE ACTUATOR
The Actuator operates heater flap inside HVAC Unit,
this flap diverts Hot & cold air inside HVAC Unit.
LOCATION
H. MODE ACTUATOR (B-PILLAR SIDE)
The actuator operates this flap in order to control the
airflow direction inside the FATC unit.
E.g., B Pillar Duct
I. BLOWER CONTROL MODULE
It is mounted on evaporator housing.
PINOUT
PIN NO
DESCRIPTION
1
CONTROL
2
DIAGNOSTICS
3
- MOTOR
4
+ BAT
5
GND
