ELECTRICAL
154

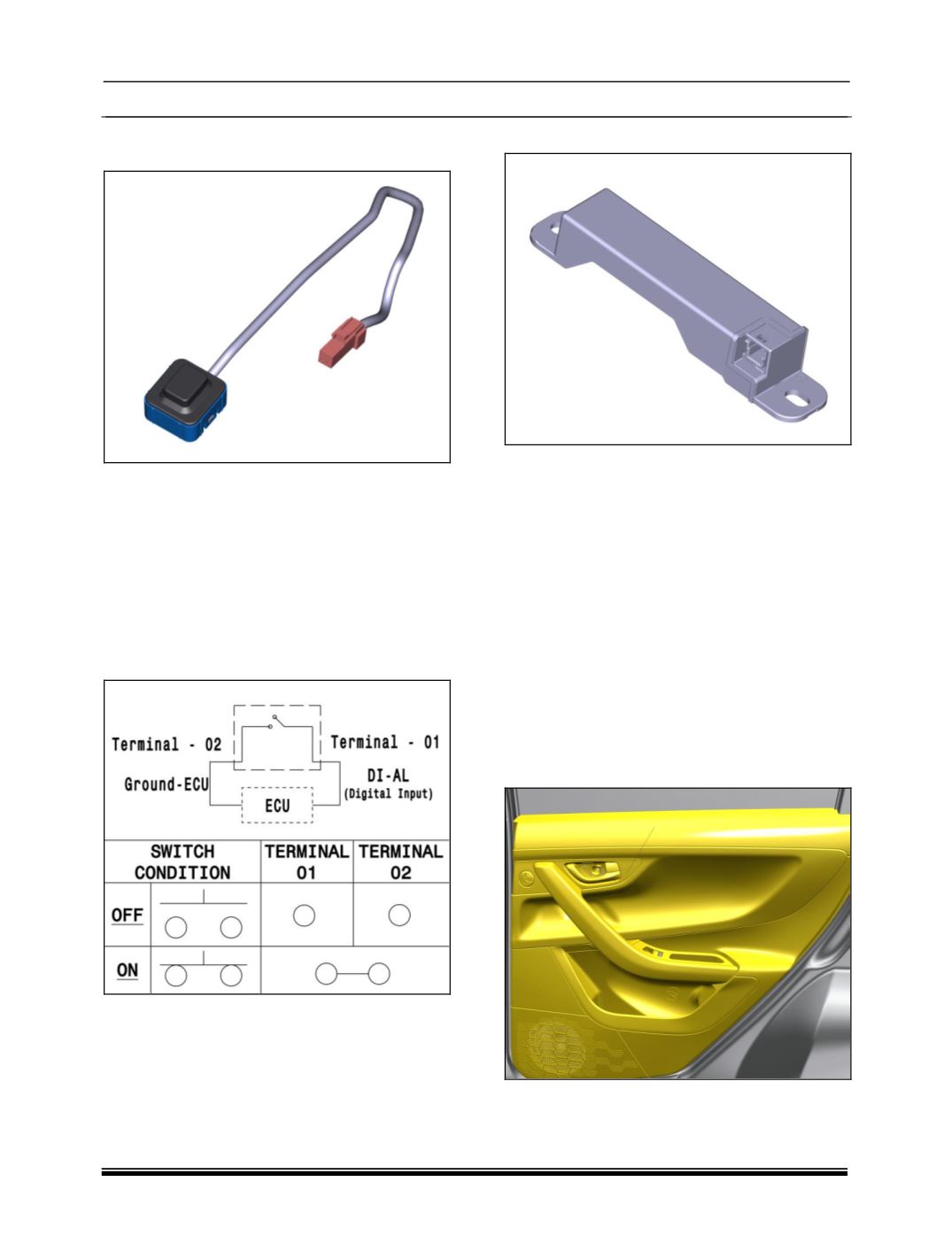

30.4 DOOR HANDLE SWITCHES WITH
HARNESS
Door handle switches are responsible for
accessing vehicle doors for passive entry.
LOCATION
Three switches are available in vehicle –
1. Driver door switch
2. Co-driver door switch,
3. Tail gate switch
CIRCUIT SCHEMATICS
REMOVAL
For removal refer door handle switch and tailgate
switch removal in above sections.
30.5 LF ANTENNAS
LF antennas are responsible for detection of valid
Smart Key. These are responsible for LF
transmission for valid smart key searching
inside/outside the vehicle for Passive Start Stop
and Passive Entry.
LOCATION
LF antenna is located at following
A. RH rear door antenna.
B. Centre console antenna.
C. Tailgate antenna
REMOVAL
A. RH rear door antenna.
1. Remove the door trims.
(Refer door trims
removal for the procedure in Body Section)
.
