ELECTRICAL
151

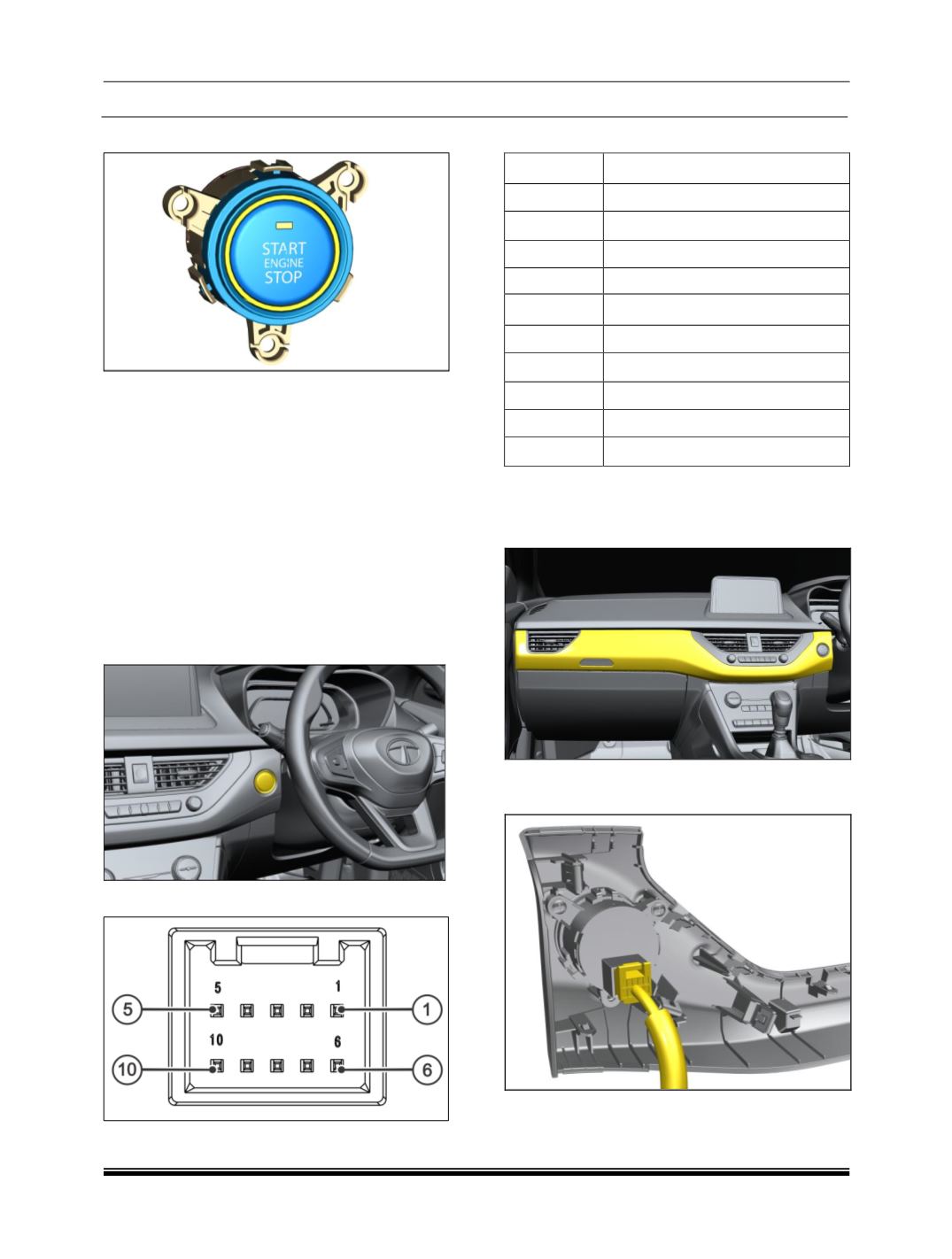

30.2 START STOP SWITCH
A Start Stop Switch (SSSW) or Push to Start
Button is a main component of Passive (Engine)
Start and Stop system. It is used to control ACC,
IGN outputs as well as to start and stop the
engine. It is provided with LED to indicate different
states.
OFF (No color)
ACC ON (Amber)
IGN ON (Green)
CRANK ON (Green)
Engine Run (Green)
LOCATION
PINOUT DETAILS
CONNECTOR DETAILS
PIN
DESCRIPTION
1
Switch 1 Signal
2
Switch 1 GND
3
Switch 2 Signal
4
Switch 2 GND
5
ACC LED
6
IGN LED
7
BACK LIGHT + ve
8
BACK LIGHT - ve
9
RING LED - ve
10
RING LED (+)
REMOVAL
1. Remove dashboard mid panel.
(Refer Body
Section for removal procedure)
.
2. Disconnect the electrical connection to the
switch.
