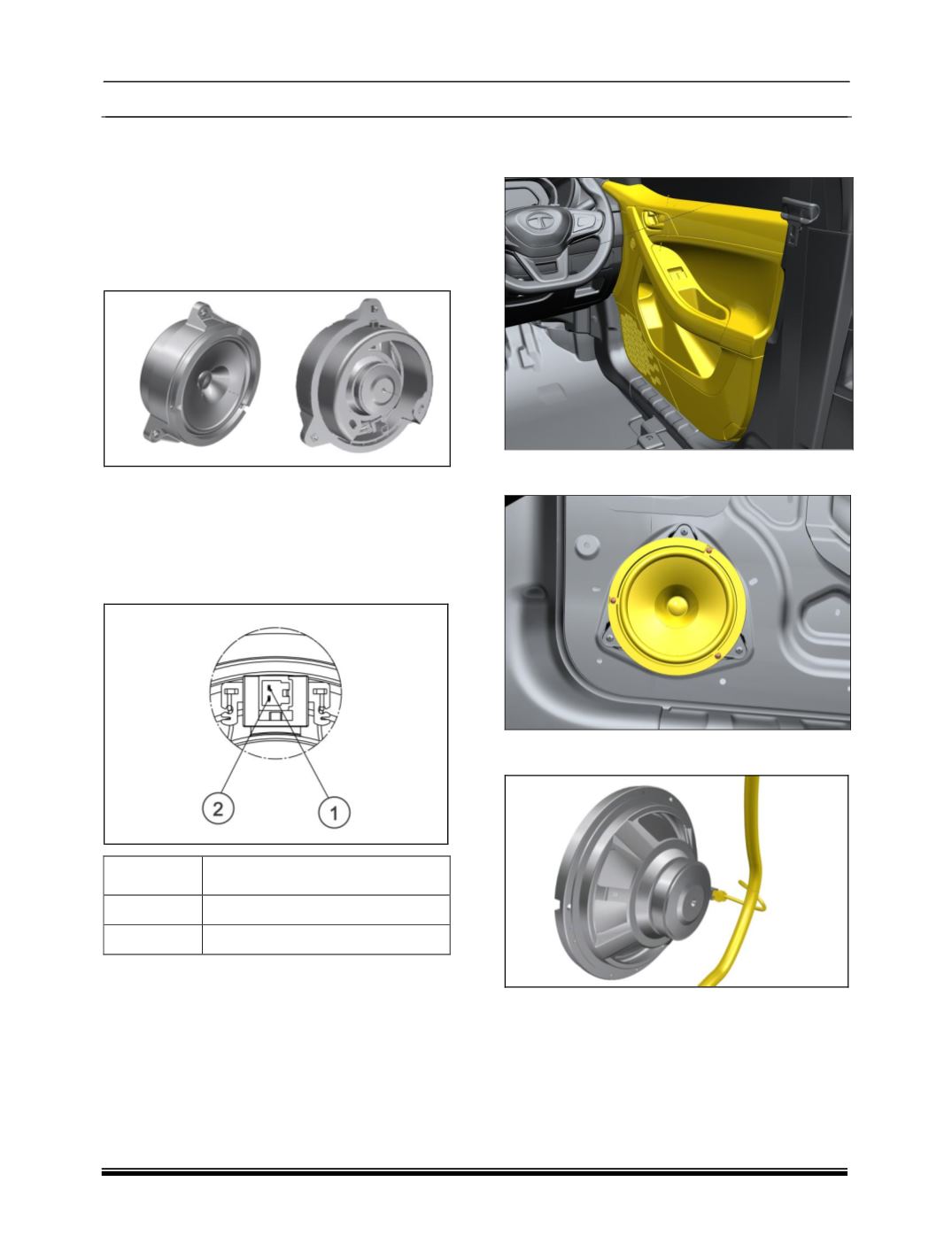

17.1 SPEAKERS
Front & rear door speakers are component
speaker which consist of woofer only
Speakers and tweeters are provided on models with
infotainment system. Provisions are given for music
system and speakers on models without
infotainment system.
LOCATION
There are total 4 speakers fitted in the vehicle of
which two are fitted in the front door and rear door
respectively.
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
+ve
REMOVAL
1. Remove the door trim (
refer Body section
).
2. Loosen and remove the three mounting screws
of speaker.
3. Pull out the speaker. Disconnect the
connection and take out the speaker.
REFITMENT
1. Connect the electrical connection.
2. Fit the speaker on speaker spacer and tighten
the three mounting screws of speaker.
Tightening torque for screws – 0.3 Kgfm
3. Refit the door trim.
