ELECTRICAL
47

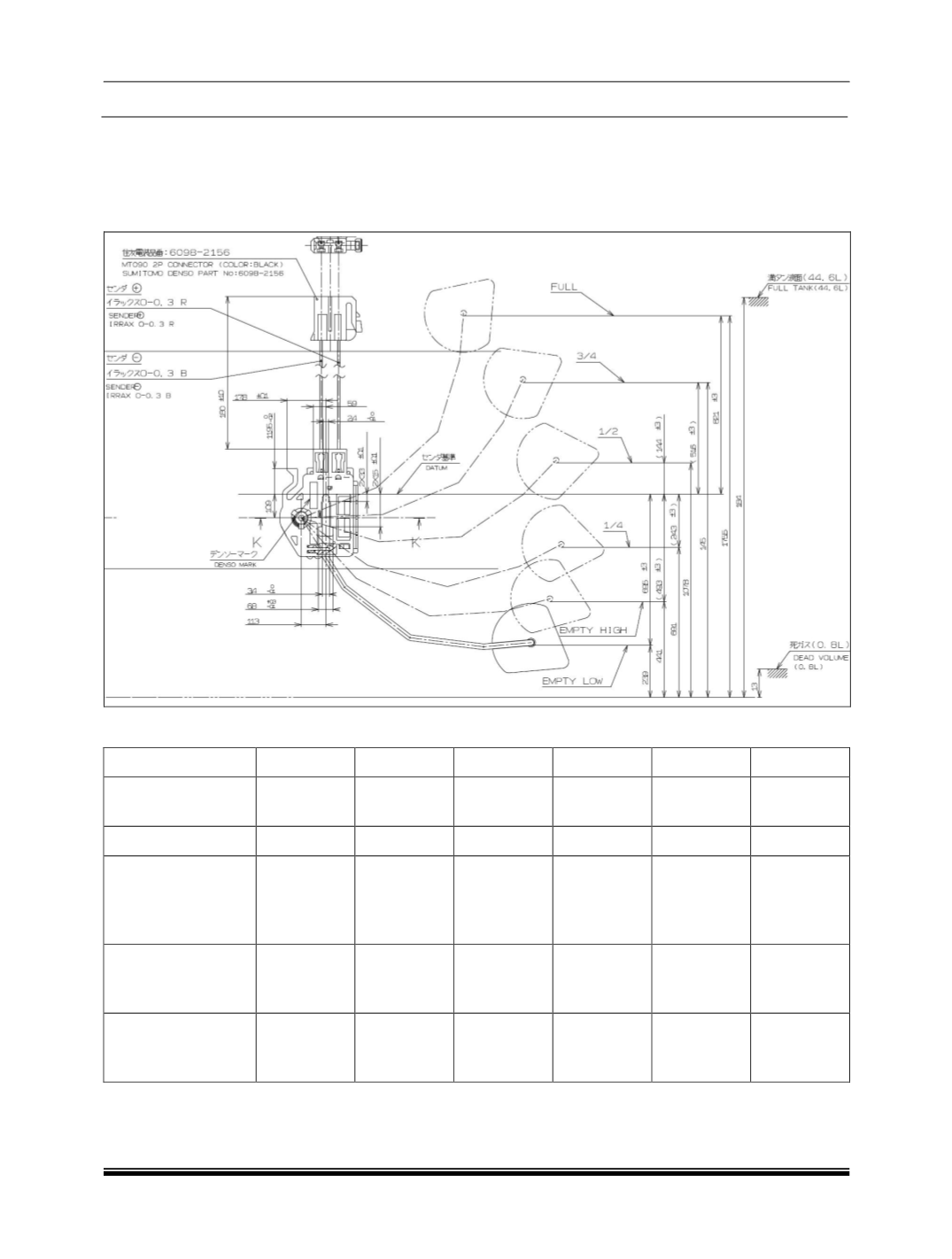

INSPECTION OF FUEL GAUGE
Use an ohmmeter to confirm that the resistance of the fuel level sensor changes with the level of float
position. The specified resistance values of the fuel gauge are given below.
A. PETROL VARIANT
The specified resistance values of fuel level sensor w.r.t fuel tank level given in below table:
Float Position
Full
3/4
Half
1/4
Empty High Empty Low
Resistance value in
Ohms
8
34
58
89
100
120
Tolerance in Ohms
± 2
± 2
± 2
± 2
± 2
± 2
Arm Lower height
from Fuel Tank
Bottom Surface in
mm
175.5
145.0
107.8
69.1
44.1
23.9
Volume (Liters)
(Including dead
Volume)
42.6
34.2
23.7
13.6
7.4
3.0
Fuel Height from
fuel tank bottom
surface in mm
176.0
146
109
70.0
45.0
25.0
