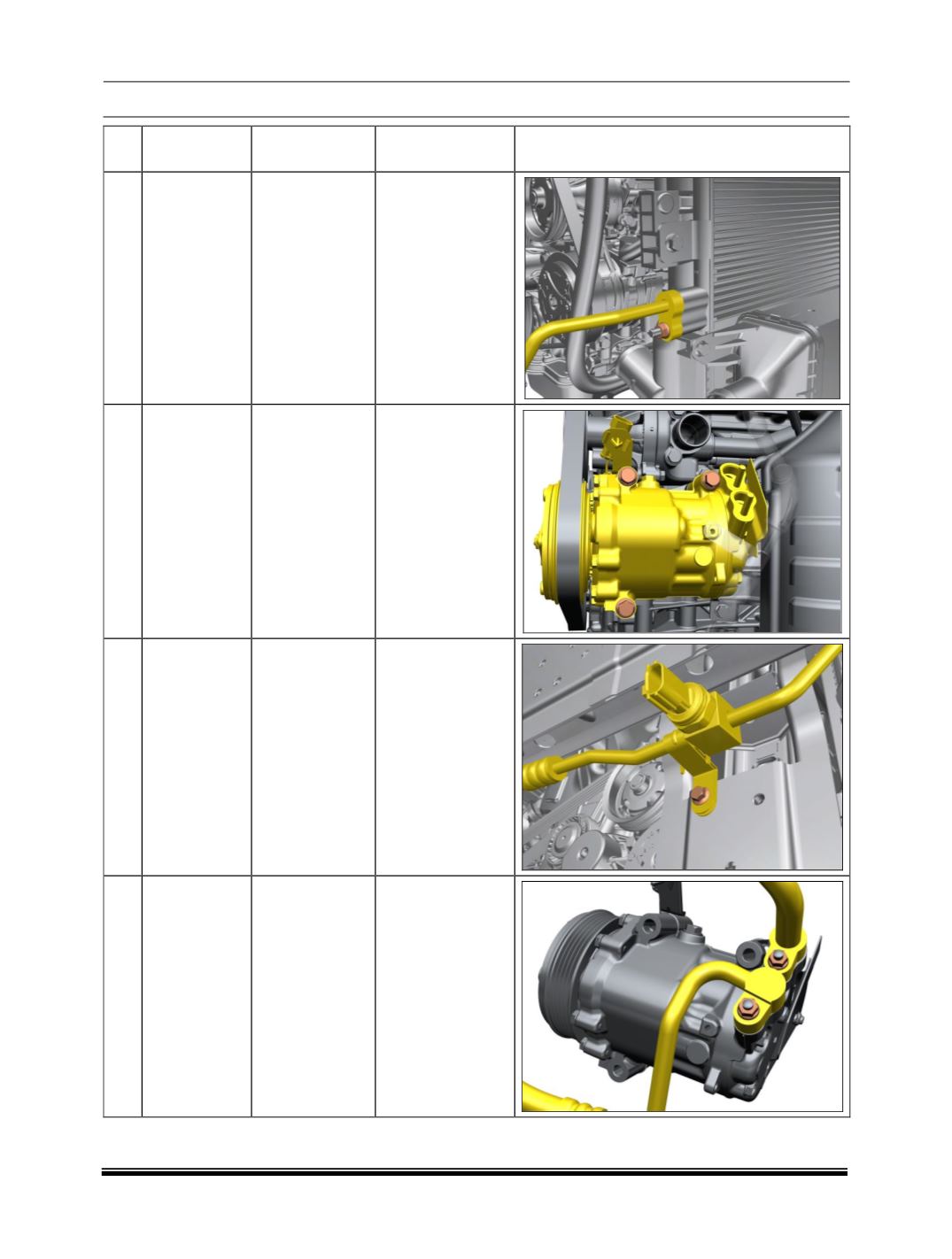

727 / 1003
HVAC
4
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
4B
Refrigerant
line on con-
denser outlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 - 8
5
Compressor
mounting
M8 X 95
30
7
Pressure sen-
sor mounting
HEX FL BOLT
M6X20
6 - 8
8
Compressor
Pipe joints
Hex FL nut AM6
10 - 12
