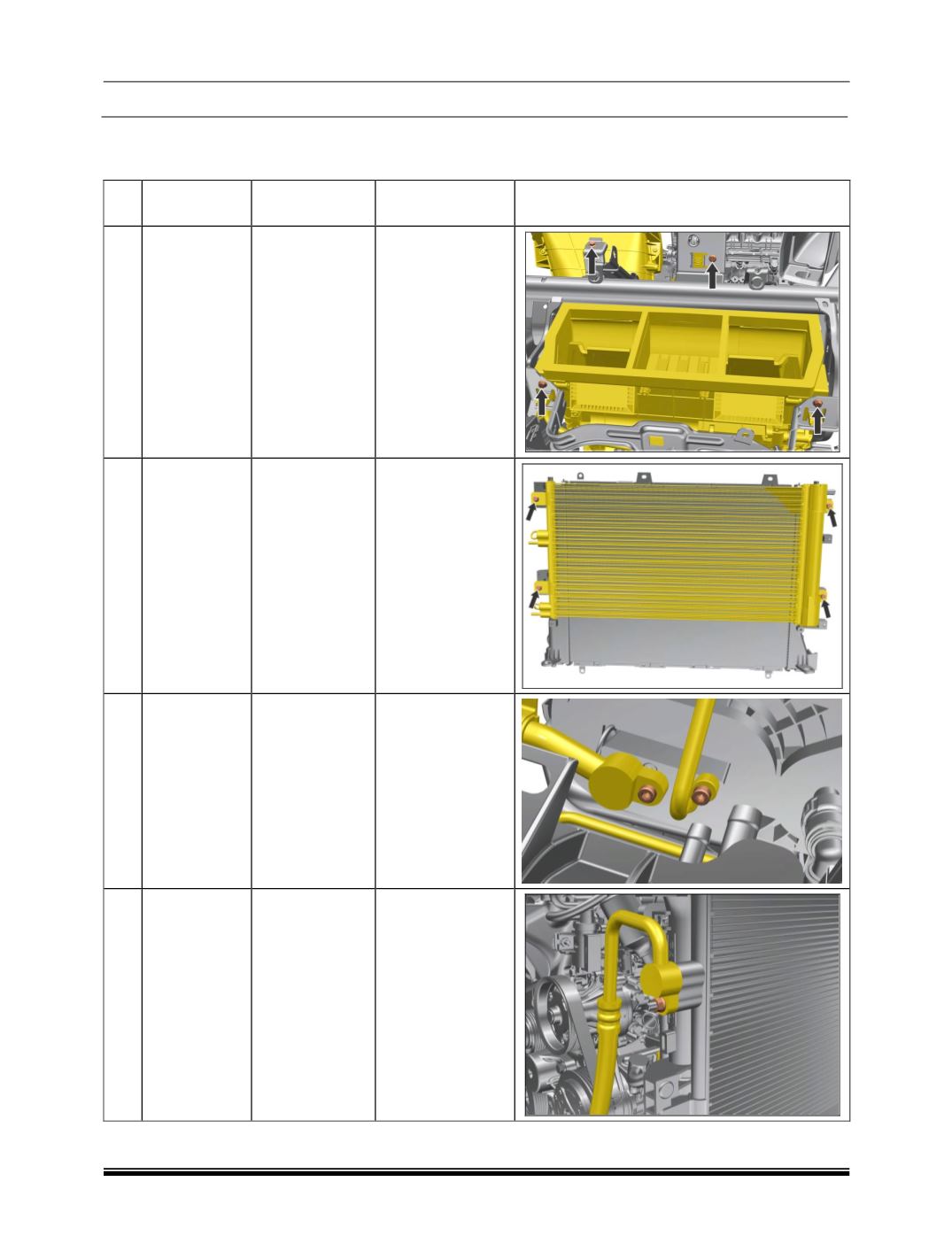

2. TIGHTENING TORQUES
FOR PETROL VERSION
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
1
Front HVAC
mounting
Hex FL nut AM6
TS17430-8-
SS8451S2
5 – 7
2
Condenser
mounting
on radiator
M6 X 18
6 – 8
3
Refrigerant
lines to HVAC
unit
M6 X 20
6 – 8
4A
Refrigerant
line on con-
denser inlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 - 8
