BRAKES
38

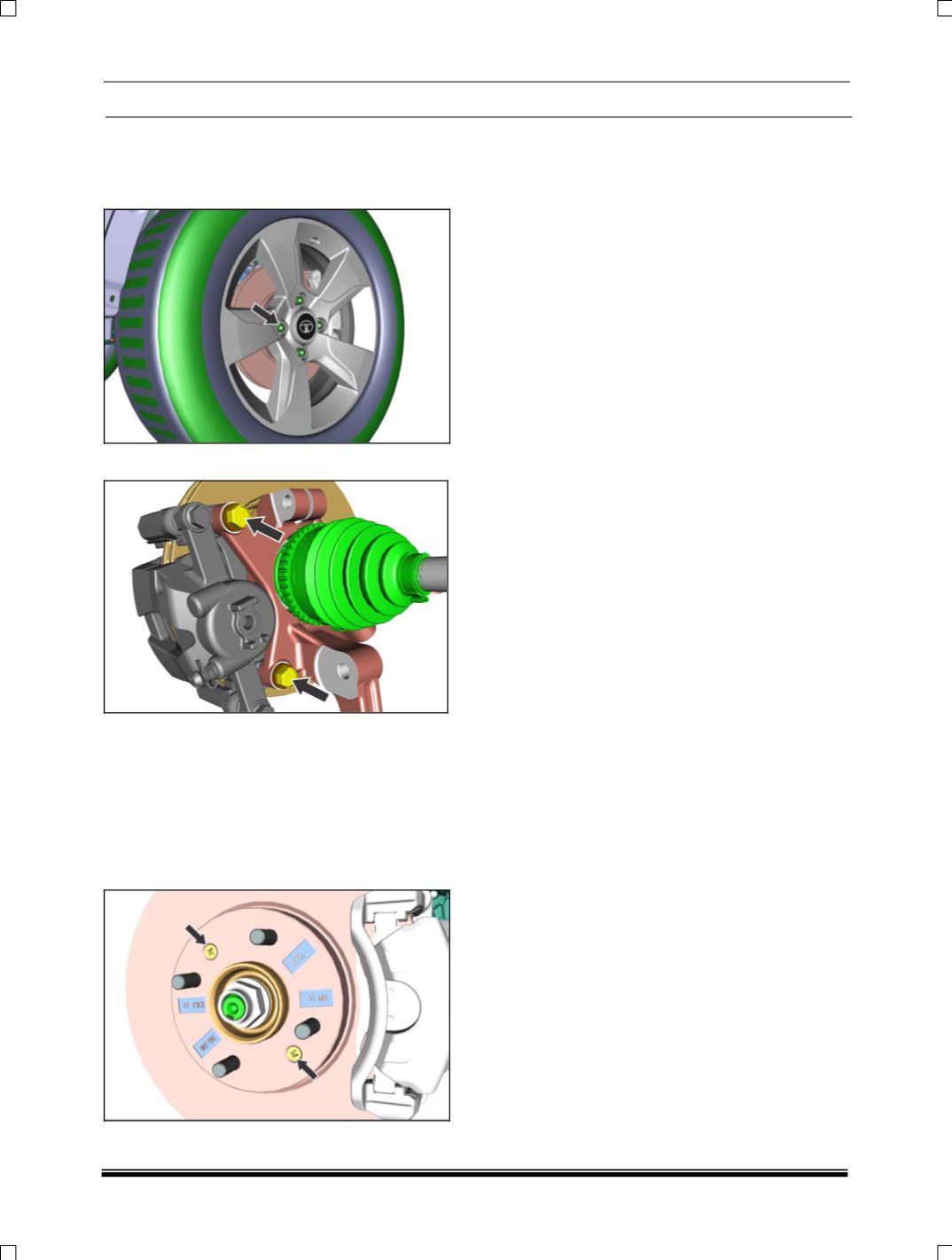

13.2. REMOVAL OF FRONT BRAKE DISC
1. Position the vehicle on two-post lift and
remove front wheel/s by removing wheel
mounting banjo nuts.
2. Remove two bolts of brake caliper assembly.
Release caliper assembly and tie aside clear off
from brake disc.
CAUTION:
Do not allow caliper to hang on brake hose as
it may damage the hose.
3. Remove brake disc screws (02 nos.) securing
brake disc to the hub.
4. Pull off the brake disc.
INSPECTION
Refer Maintenance, Adjustment and Test for
Brake Disc inspection.
INSTALLATION
1. Clean mating faces of hub and new brake
disc.
2. Mount brake disc onto hub and tighten two
screws to specified torque (0.6 – 0.8 Kg-m)
3. Install the caliper assembly to the steering
knuckle and tighten two bolts to specified
torque (7.0 – 8.0 Kg-m)
4. Tighten wheel mounting nuts to specified
torque (7.9 – 8.1 Kg-m) and fit wheel/s.
