BRAKES

36

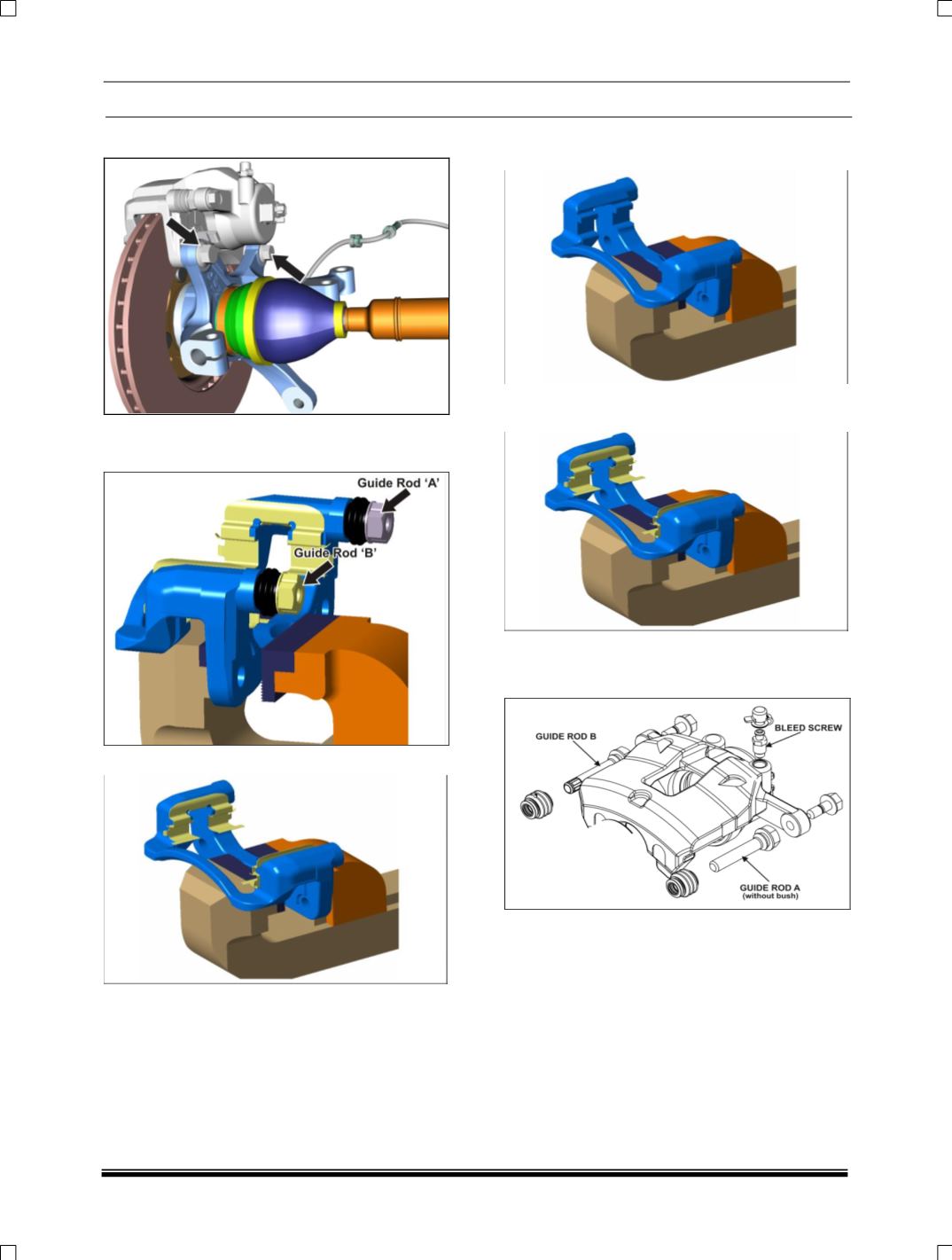

2. Remove bolts from knuckle to remove carrier.

3. Remove boot guide rods, guide rod A and

guide rod B.

4. Remove pad spring.

ASSEMBLY OF CARRIER

1. Hold carrier in the holding device firmly.

2. Assemble the new pad spring the carrier on

both leading side and trailing side.

NOTE:



Guide rod ‘A’ (without bush) (always near

bleed screw side both LH & RH).
