1.2L REVOTRON ENGINE
53

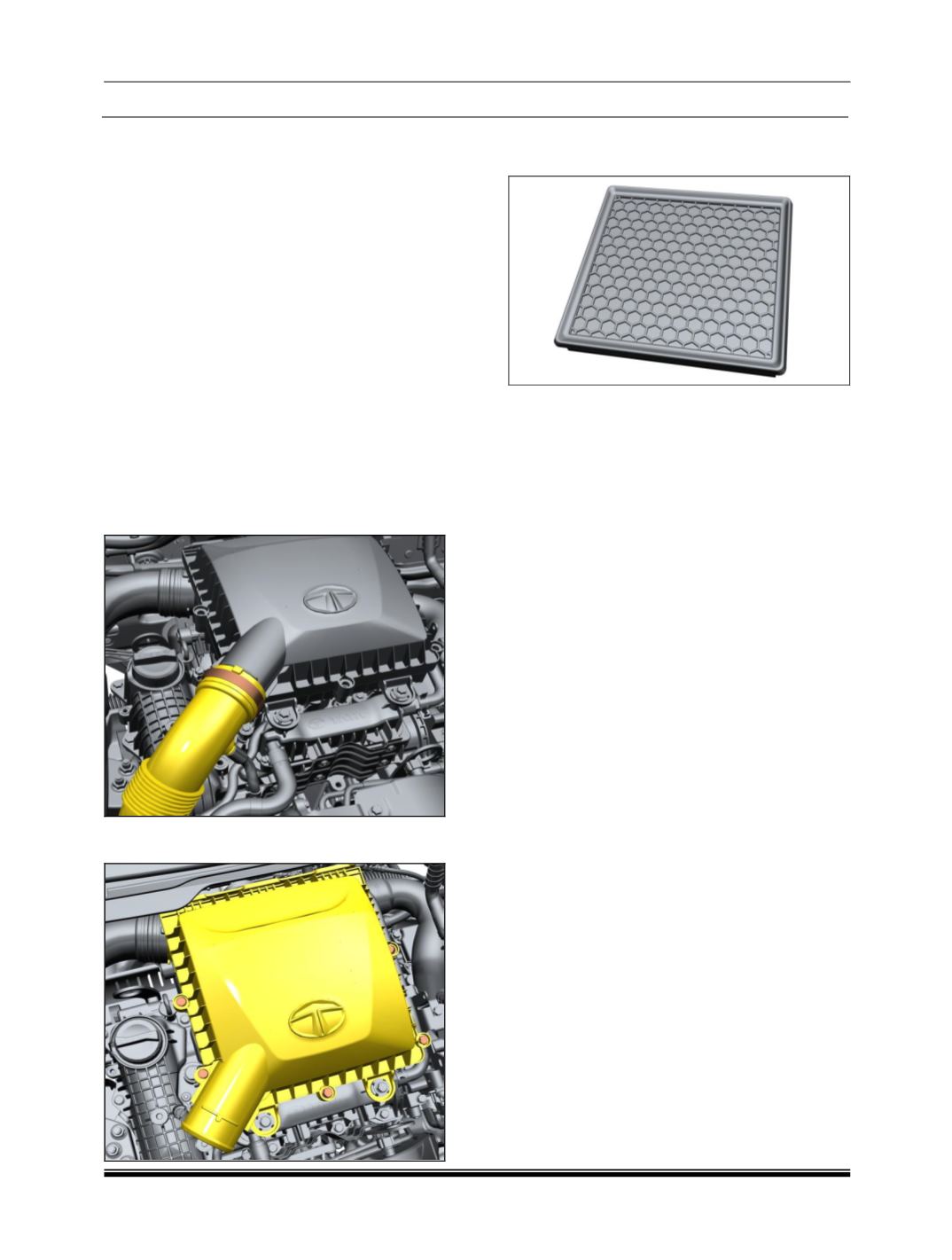

III. AIR FILTER ELEMENT REPLACEMENT
DESCRIPTION
Proper maintenance of the air filter is essential
for vehicle performance and fuel economy.
The air filter element removes foreign material
such as dust, dirt, and other material from the
intake air, thereby preventing the engine from
damage due to contaminated air.
Inspect and clean the air filter element at every
routine service. Replace the air filter element
every 45,000 km.
REMOVAL
1. Park the vehicle on a level surface, engage
the parking brake, and raise the hood.
2. Gently tap loose any dirt or debris from the
filter. Clean the housing and air ducts as
well. Take care not to allow dirt and debris
to enter the air inlet to the engine.
3. Remove the clamp and take out the air filter
outlet hose.
4. Unscrew the top cover mounting bolts of air
filter assembly.
5. Detach the cover through hinge action.
6. Remove the air filter element.
INSPECTION
1. Hold the air filter element up to a light
source. Light should be visible through the
element. There should be no holes or tears
in the element.
2. The filter can also be cleaned using low
pressure compressed air.
3. Replace the filter element if torn or light is
not visible through the filter.
INSTALLATION
1. Place the air filter element.
2. For re-assembling the cover, please ensure
that all the hinge lugs are properly
assembled in the slot of the air filter housing
body, before tightening the screws.
