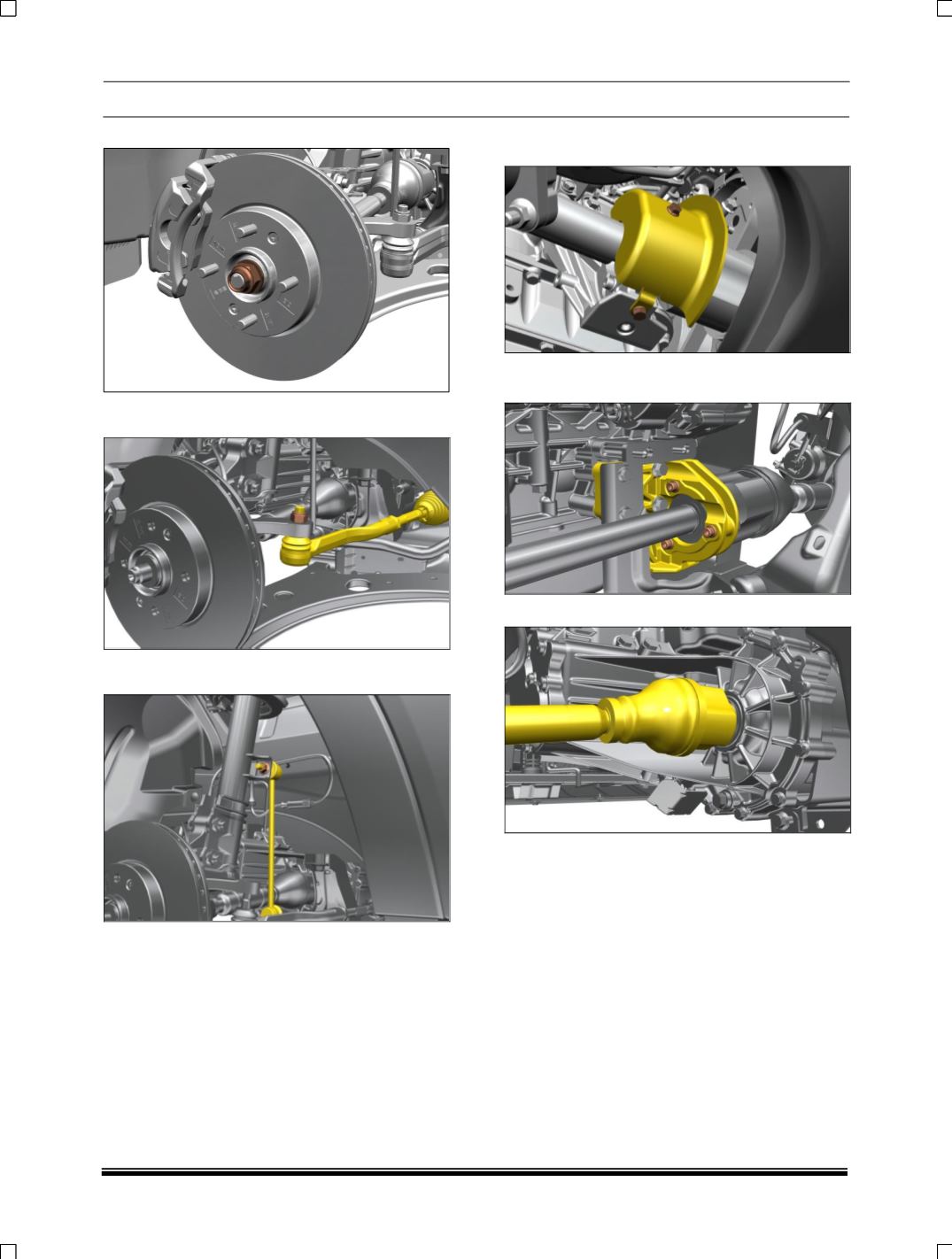

6. Remove driveshaft lock nut LH& RH.
7. Remove ball joint (steering rack) from steering
knuckle from both sides.
8. Remove vertical link mountings on
suspension rod for both RH & LH sides.
9. Remove 2 mtg bolt of intermediate shaft heat
shield & take out heat shield.
10. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side.
11.
Remove Drive shaft from co-driver side.
NOTE:
C
are should be taken not to damage
driveshaft oil seal and its boots (do not use
hammer).
CAUTION:
Do not pull drive shaft excessively as the plunge
joint will come out of housing and damage the
boot Pry. Plunge joint housing for taking out joint
out of splines. Do not place the CV drive shaft on
rough / uncleaned surfaces. This might damage
the drive shaft boot.
FITMENT
For fitment follow the reverse procedure of
removal.
