DRIVESHAFT MT
11

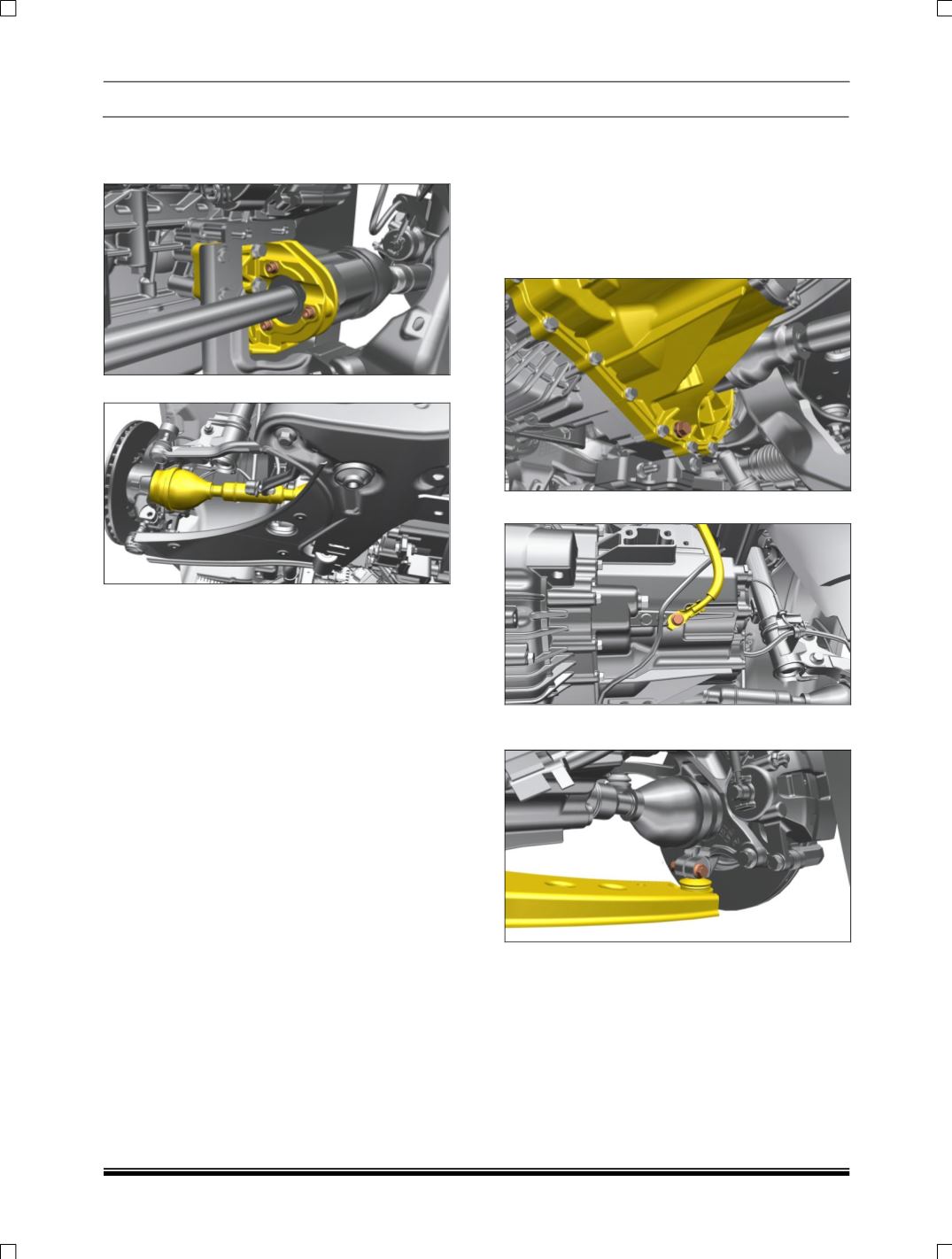

9. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side/Engine
side.
10. Remove Drive shaft from co-driver side.
NOTE:
C
are should be taken not to damage
driveshaft oil seal and its boots (do not use
hammer).
CAUTION:
Do not pull drive shaft excessively as the plunge
joint will come out of housing and damage the
boot Pry. Plunge joint housing for taking out joint
out of splines. Do not place the CV drive shaft on
rough / uncleaned surfaces. This might damage
the drive shaft boot.
FITMENT
For fitment follow the reverse procedure of
removal.
B. DRIVE SHAFT (LH / RH) REMOVAL (DIESEL
VEHICLE)
1. Position the vehicle properly on the two-post
lift.
2. Lift the vehicle on using two-post lift and
remove the front wheels LH & RH.
3. Drain the Transaxle oil through Drain Plug.
4. Remove earthing cable from gear box.
5. Remove stub axle ball joint Mounting &
Loosen Lower Control Arm on LH & RH side.
