40 / 1003
1.2L REVOTRON ENGINE
29

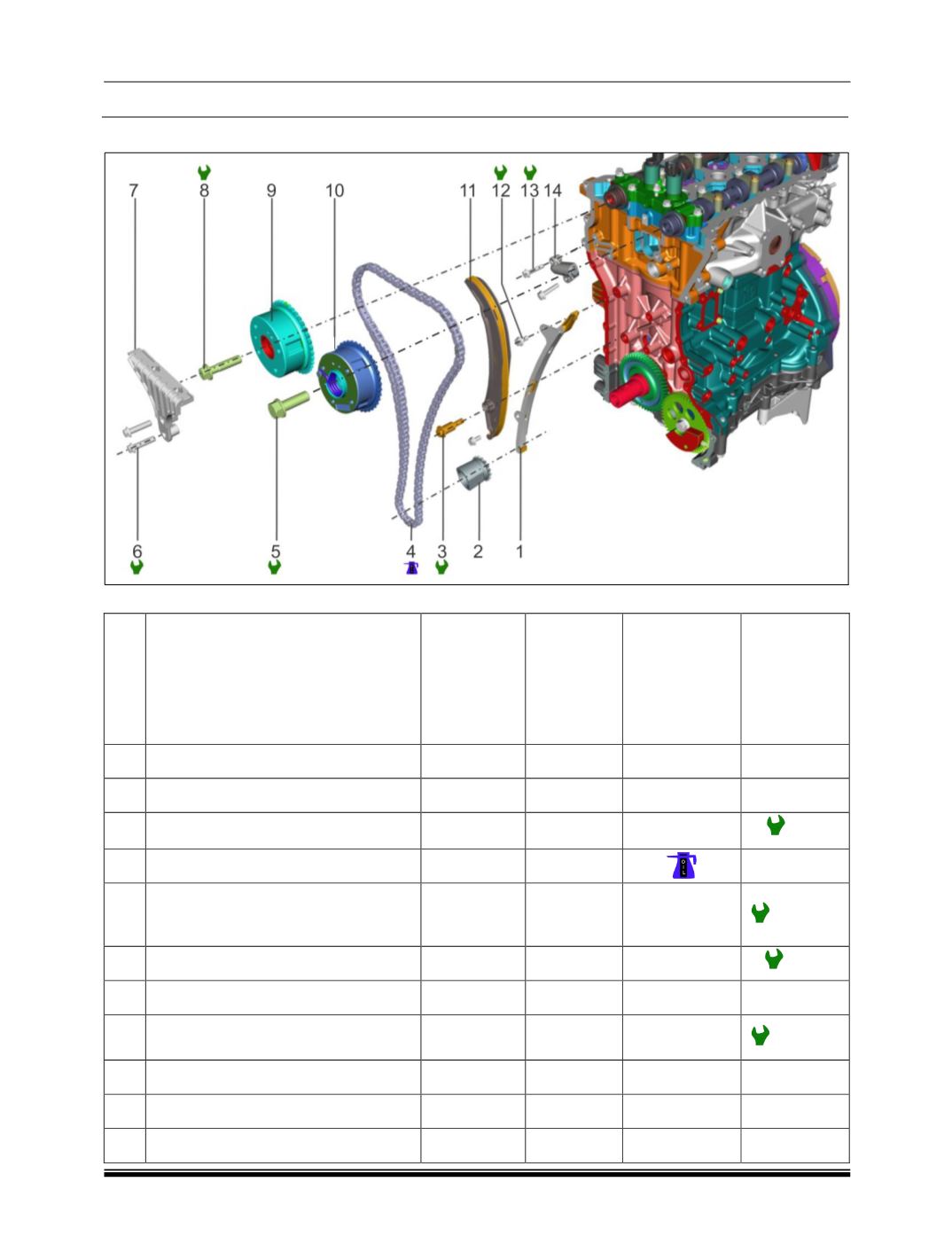

I. Engine Timing
Engine Timing
No.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TORQUE
(Kgf.m)
1 Fixed Blade
2 Sprocket Crankshaft
3
Hex Pivot Bolt for Chain Guide
(Movable)
2.5
4 Chain
5
Hex Bolt, Camshaft Bearing Cap
(Exhaust Camshaft VVT )
•
6.0 ± 0.5
6 Hex Fl Bolt M6x25 (2 Qty)
1.0
7 Cam Guide Valve
8
Hex Bolt (Intake Camshaft VVT)
•
6.0 ± 0.5
9 Controller Assy, Valve Timing
10 Variable Cam Timing
11 Tensioner Guide Rail
