1.5L REVOTORQ BS VI ENGINE
97

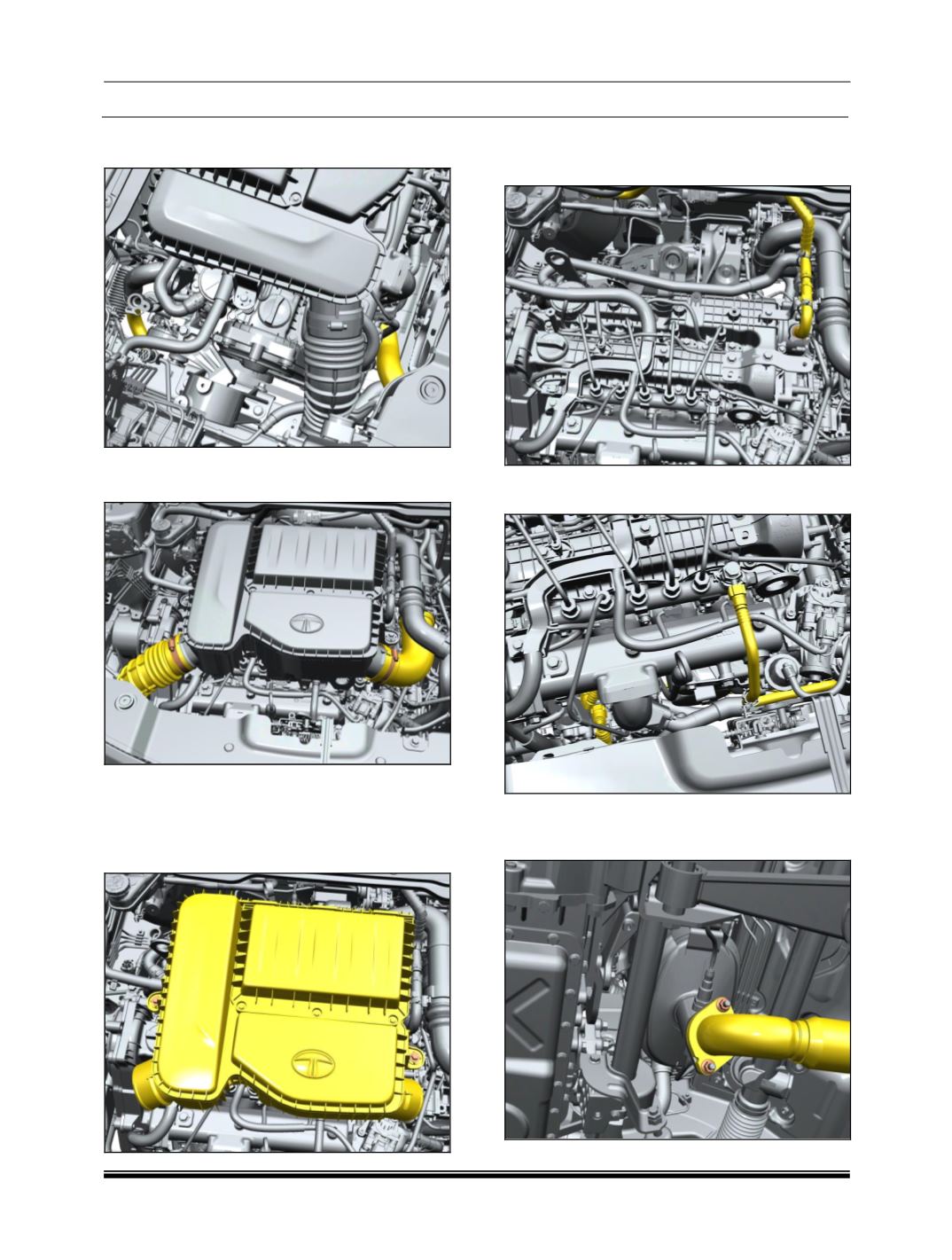

15. Disconnect the intercooler outlet hose and
coolant inlet hose.
16. Remove the clamps and disconnect the air
filter hoses.
17. Remove the air filter mounting bolts and pull
in outward direction to dislocate the filter
assembly from the locating bush on the rear
side. The air filter assembly will be come out
along with the foam.
18. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
19. Disconnect the fuel supply connection
between fuel filter and the HP pump.
20. Remove the mounting bolts of the
intermediate exhaust pipe and disconnect the
pipe.
