NEXON BS VI - SERVICE MANUAL

26 / 1003

1.2L REVOTRON ENGINE
15

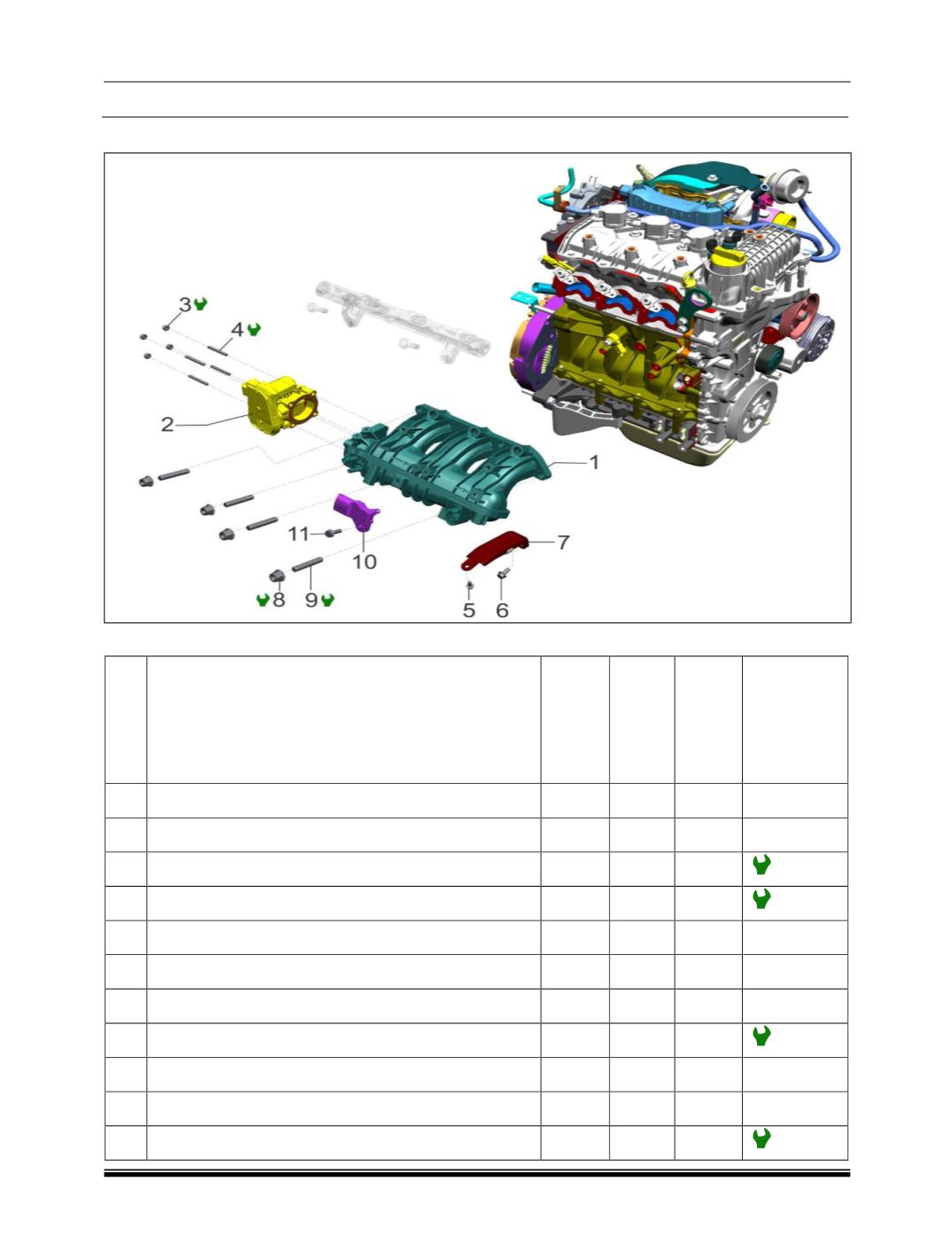

B. Intake Manifold
 Intake Manifold
No. DESCRIPTION
NO REUSESEALANT
LUBRICATION
TORQUE(Kgf.m)
1 Intake Manifold Assy.
2 Electronic Throttle Body
3 Hex Flange Nut AM6 (4 Qty) 1.0
4 Stud CM6x45 (4 Qty.) 1.0
5 Hex Flange Screw M6x14
6 Hex Flange Screw M8x18
7 Bracket Assy., Intake Manifold (Plenum Side)
8 Hex Flange Nut M8 (4 Qty.) 2.0 + 0.3
9 Hex Flange Screw M6x18
10 Pressure/Temperature Sensor (Map Sensor)
11 Stud CM8x30 (4 Qty.) 2.5
