ELECTRICAL
112

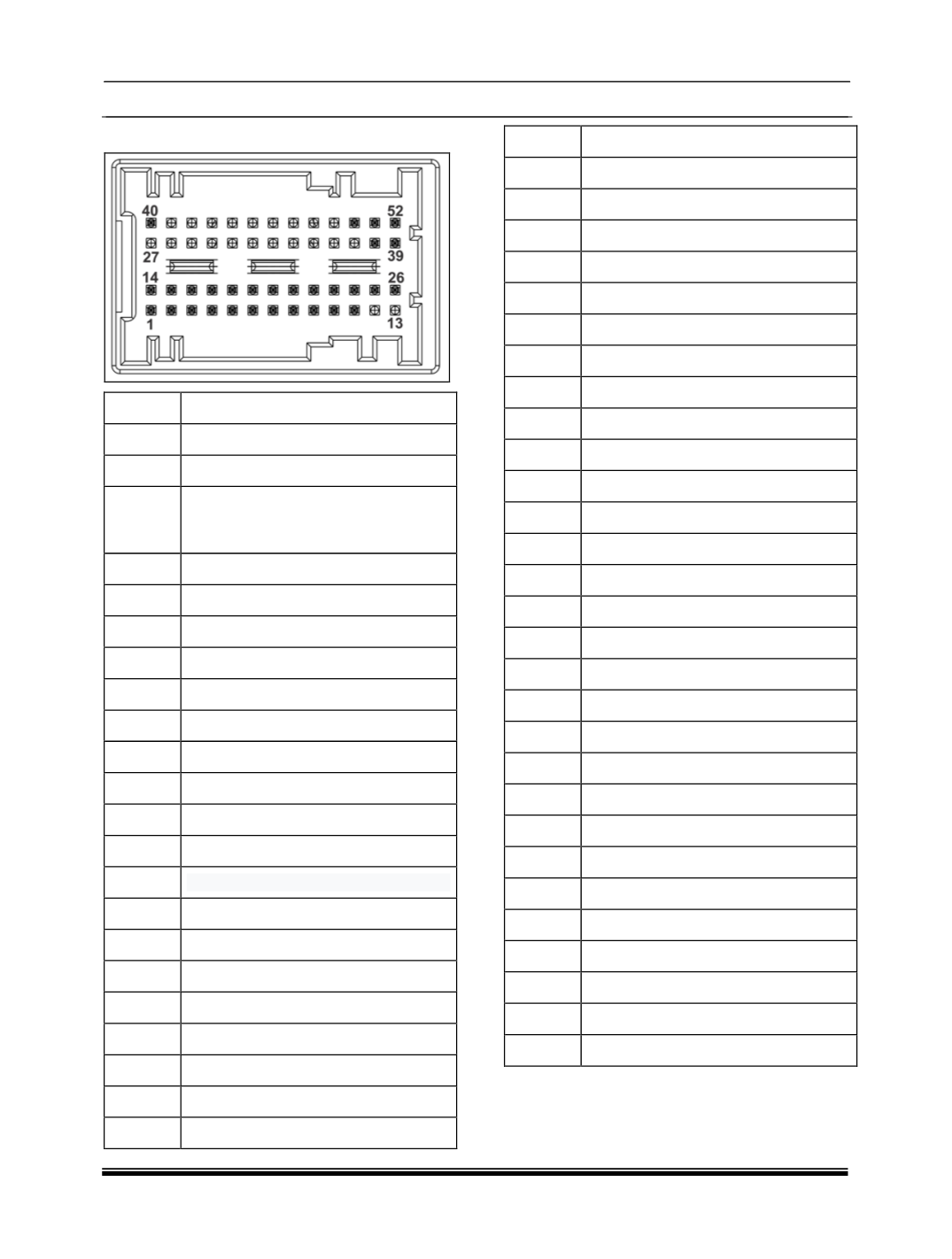

5. CONNECTOR
PIN
DETAILS
1
Wiper Front Low High Relay Control
2
Global Closing Signal
3
Central
Lock
Internal
Switch
Signal/Internal Lock Unlock Switch
Signal
4
Bonnet State
5
Rear Right Door State
6
Low Beam Switch Signal
7
Wiper Front Low Speed Signal
8
Mirror Fold Unfold Switch
9
Smart Entry Wakeup Signal
10
Spare3
11
Auto Light ON Signal
12
CAN_Body_H
13
CAN_Body_L
14
Key Hole LED control
15
Tailgate State
16
Cent Unlock Internal Switch Signal
17
Rear LH Door State
18
Main Beam Switch Signal
19
Wiper Front High Speed Signal
20
Cockpit dimming Signal
21
Crash Signal_PWM
22
Wiper Rear Fixed Internal Signal
23
ML Fail safe Switch Signal
24
Spare4
25
LIN 2
26
Battery GND3
27
-
28
-
29
-
30
-
31
-
32
-
33
-
34
-
35
-
36
-
37
-
38
Roof Lamp LED Out
39
DRL Position Lamp Control RH
40
Head Lamp High Beam Relay
41
-
42
-
43
-
44
-
45
-
46
-
47
Mirror Fold
48
Mirror Unfold
49
-
50
Cockpit Illumination
51
Spot LED Out
52
DRL Position Lamp Control LH
