ELECTRICAL
111

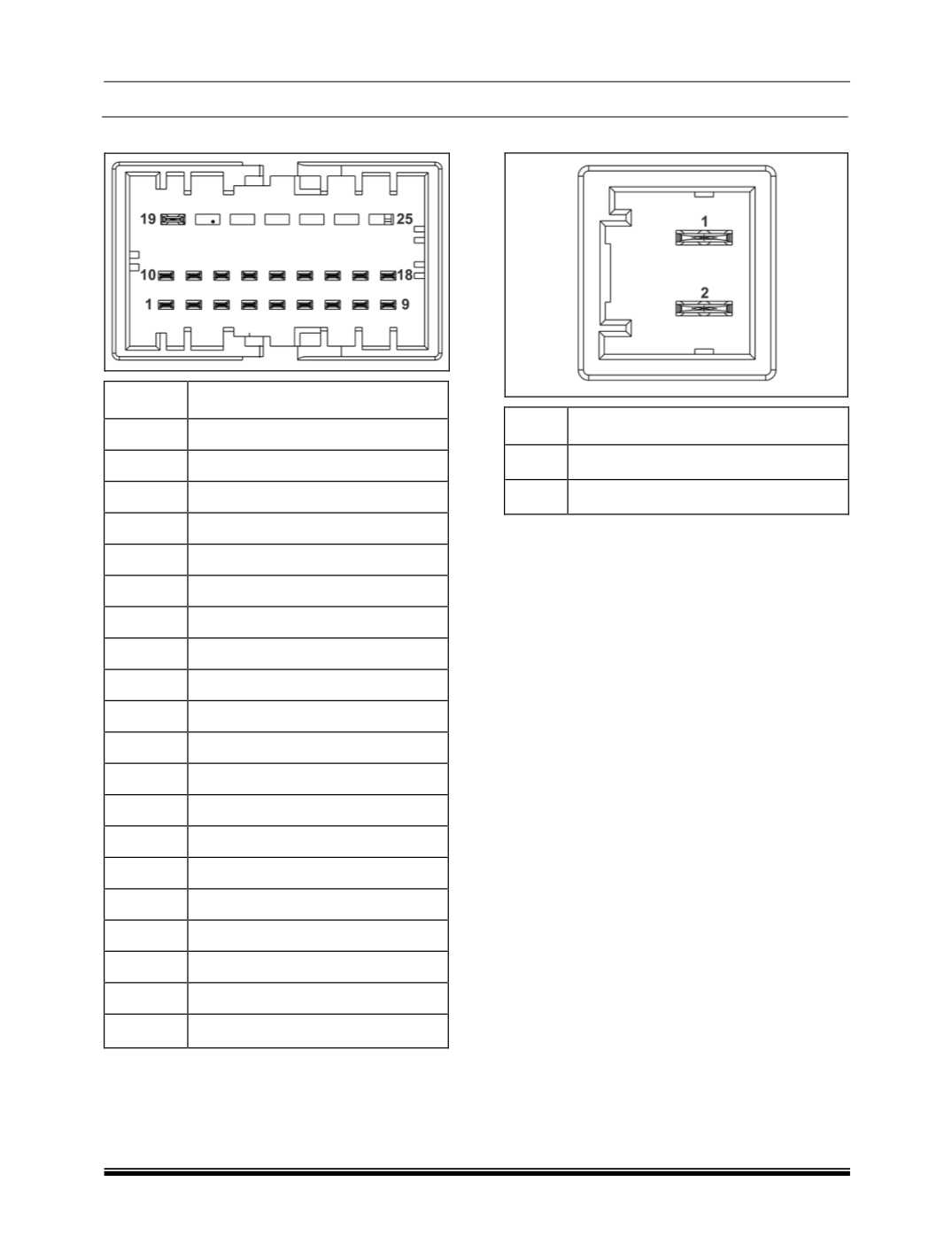

3. CONNECTOR
PIN
DETAILS
1
Reverence Lamp Signal Right
2
Rear Fog Lamp Control LH
3
Front Roof Lamp Control
4
ACC Delay Control
5
Rear Fog Lamp Control RH
6
Position Lamp Control LH
7
Wash Front Pump Ctrl
8
Turn Left Indicator
9
Brake Lamp Signal LH
10
Fog Lamp Control Front LH
11
Reverse Lamp Signal LH
12
Door Pocket LED Out
13
Foot well LED Out
14
Brake Lamp Signal RH
15
Turn RH Indicator
16
Wash Rear Pump Control
17
Position Lamp Control RH
18
Battery Saver Control
19
Fog Lamp Control Front RH
20 to 25 -
4. CONNECTOR
PIN
DETAILS
1
Power Supply 2
2
Power Supply 1
