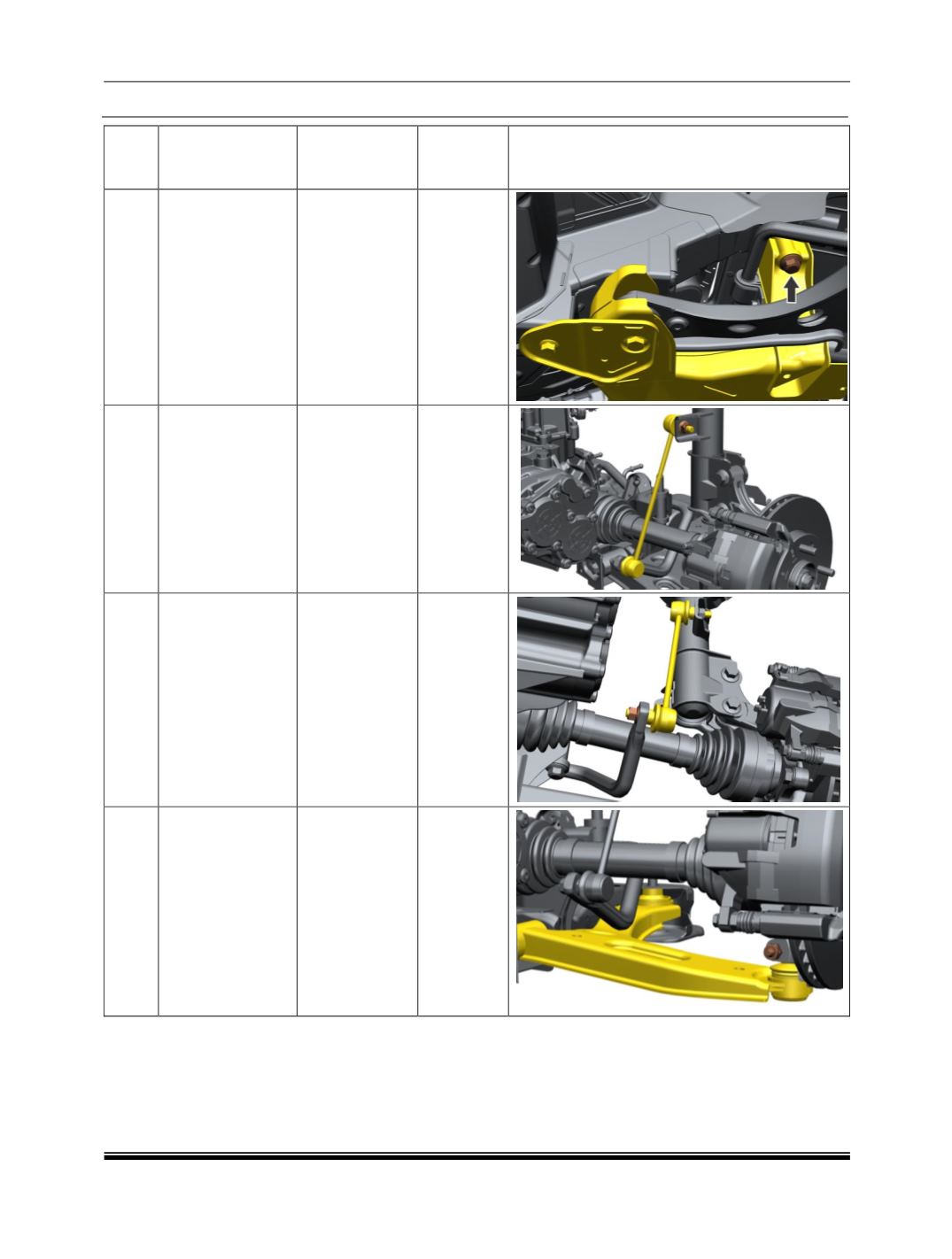

SUSPENSION
8
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE
VALUE
(Kg-m)
LOCATION
8
Sub frame mount
bolt
M14X1.25X10
5
21 (step
torqueing
to be done
in steps
10 kg-m,
17 kg-m,
21 kg-m
9
ARB link
mounting on strut
HEX FL NUT
M10X1.5
Self Locking
Nut
7 ± 0.5
10.
ARB mounting on
ARB link
HEX FL NUT
M10X1.5
Self Locking
Nut
7 ± 0.5
11
Lower ball joint
mounting on
knuckle
NYLOC NUT
M10
5.5 ± 0.3
