TRANSAXLE - TA5260
44
I.

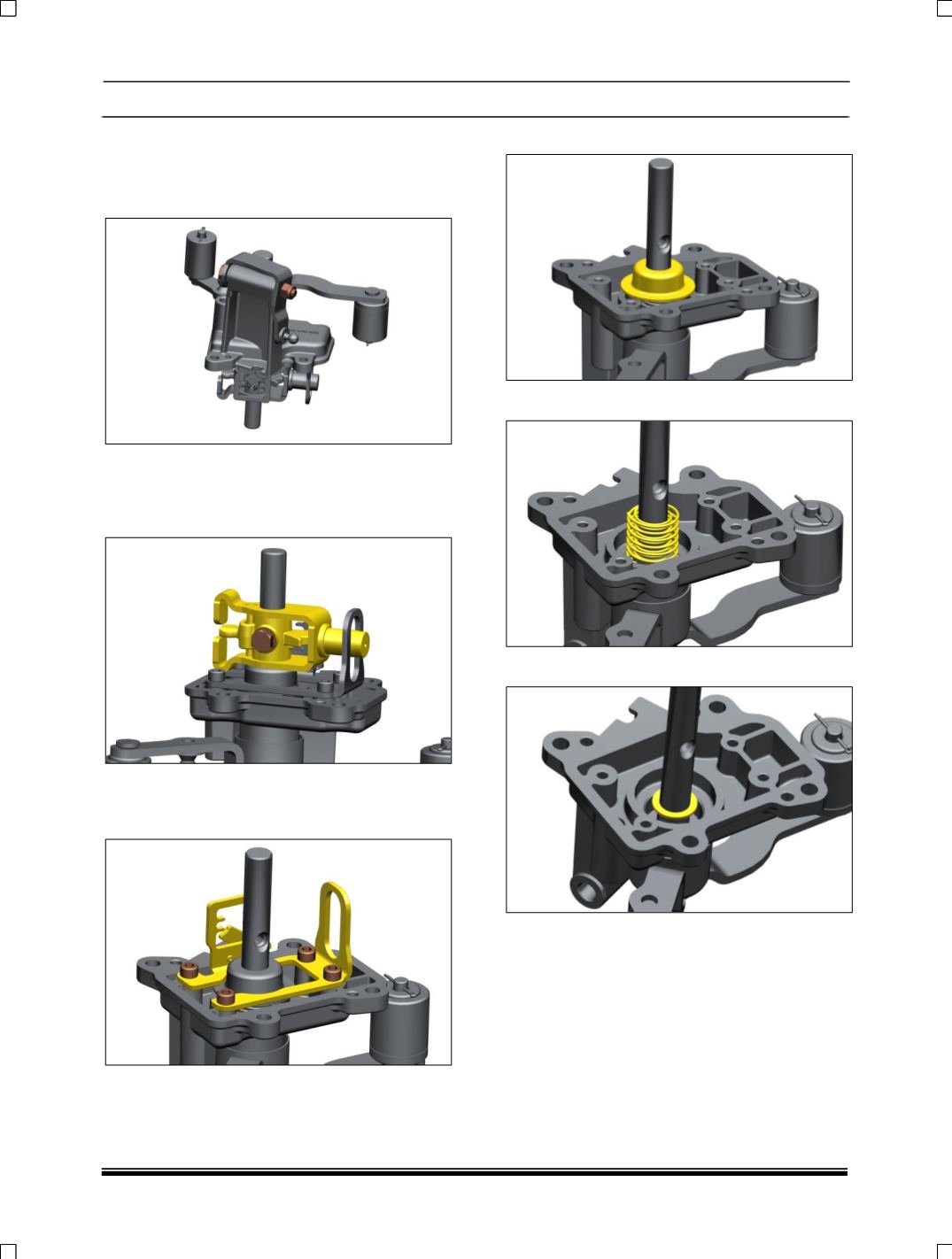

DISASSEMBLY OF TOP COVER:
1. Loosen the M8 Nut and remove the bell crank
lever assembly along with bellow and bush,
spacer & sealing ring below figures.
2. Loosen the cross pin bolt of selector shifter
shaft to remove the interlock piece along with
barrel spring, Central Detent and finger
(selection and shifting).
3. Loosen the M6 bolts to remove the Top cover
plate, Cup, springs and spacer from the top
cover in below figures.
4. Remove Cup.
5. Remove selection spring.
6. Remove spacer for selector shifter shaft.
