415 / 1119
CLUTCH_PETROL
8
3.

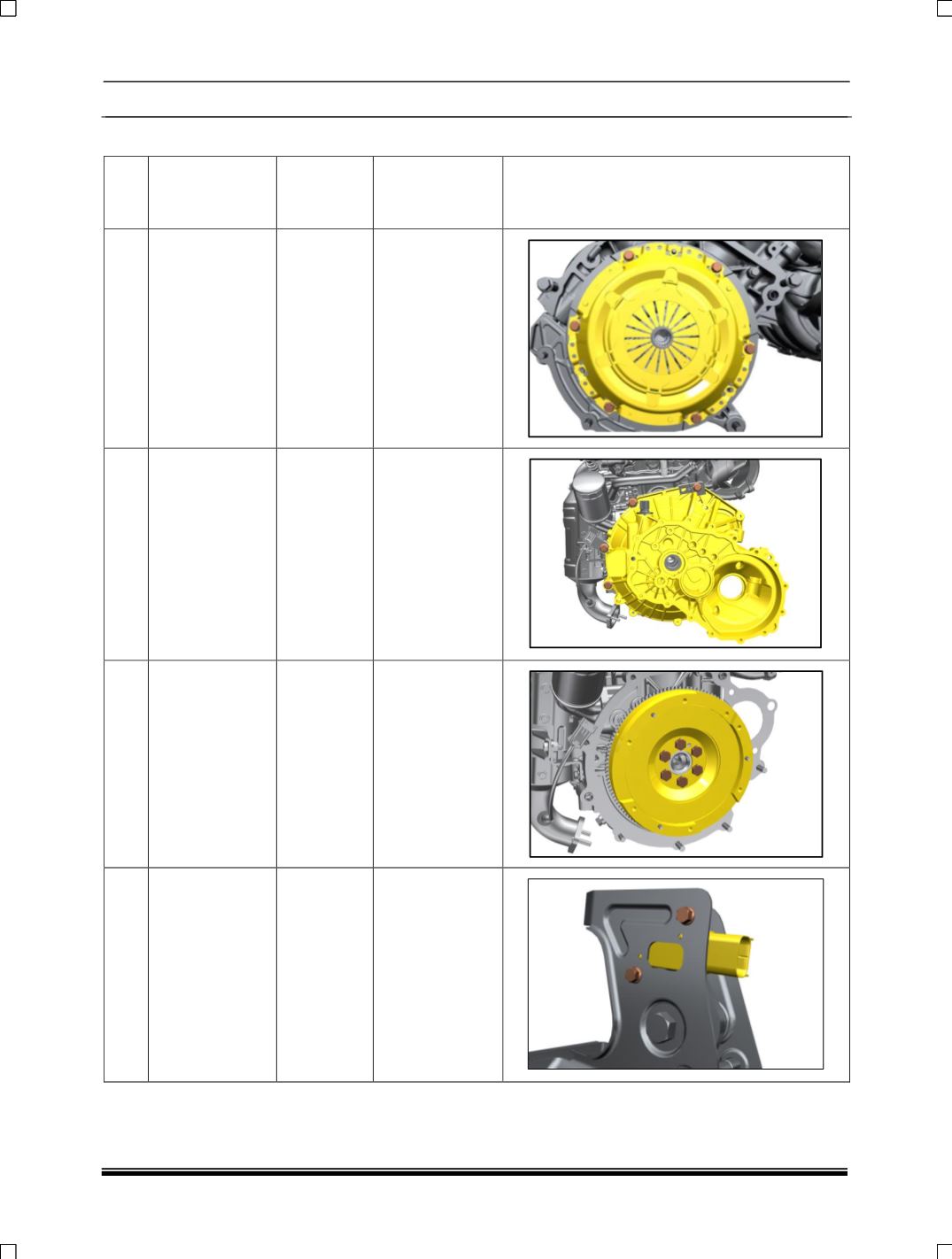

TIGHTENING TORQUE
SR
NO.
DESCRIPTION
FASTNER
TIGHTENING
TORQUE (Kg-
M)
LOCATION
1
Mounting
Screws (Clutch
Cover
Assembly to
flywheel)
Hex Screw
M7x15.5
2.4
2
Mounting Bolts
(Clutch Housing
To Cylinder
Block)
Hex FL.
Bolt M10 X
60
&
Hex FL.
Bolt M10 X
65
4.6
3
Mounting Bolt
(Flywheel to
crank shaft)
Hex Bolt
for
Flywheel
A
. Initially
tighten the bolt
to torque of 3.3
± 0.3.
B
. Finally
tighten the bolt
by 55
o
± 5
o
angle
4
Clutch Sensor
Mounting
Hex FL
Screw
M5X12
0.6
