1.2L REVOTRON ENGINE
29

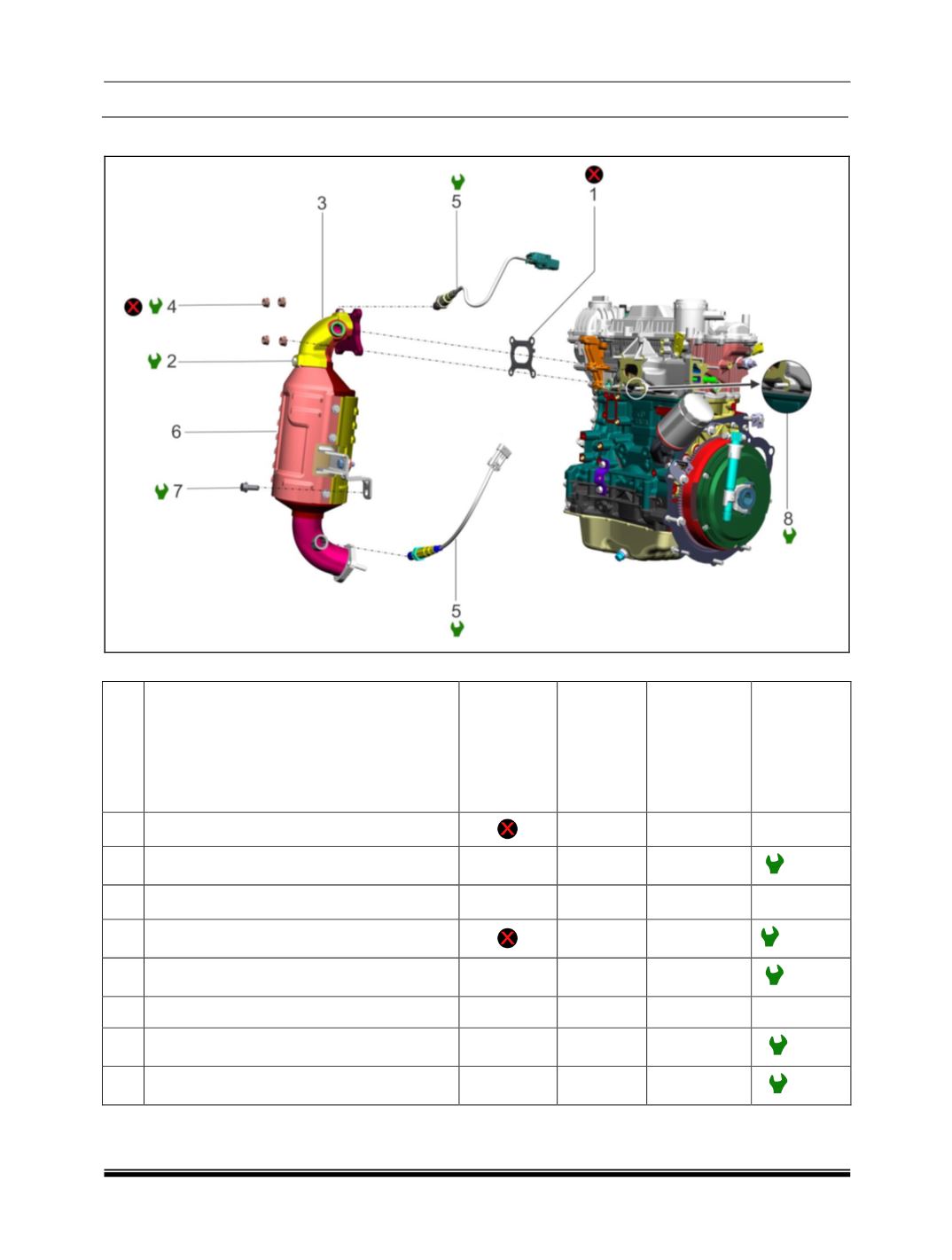

I. Exhaust Manifold :
Exhaust Manifold :
No.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TORQUE
(Kgf.m)
1 Gasket (Exhaust Manifold))
2 H/FL Bolt M6 for heat shield (3 Qty)
1.5
3 Heat Shield
4 M8X1.25 Flange P/T Nut. (4 Qty)
2.0+0.3
5 Lambda Sensor
5.0±0.5
6 Exhaust Manifold
7 H/FL Screw M8X18 (2 Qty)
2.5
8 Stud C M8X25 for Exhaust (4 Qty)
2.5
