368 / 1119
1.5L REVOTORQ ENGINE
180

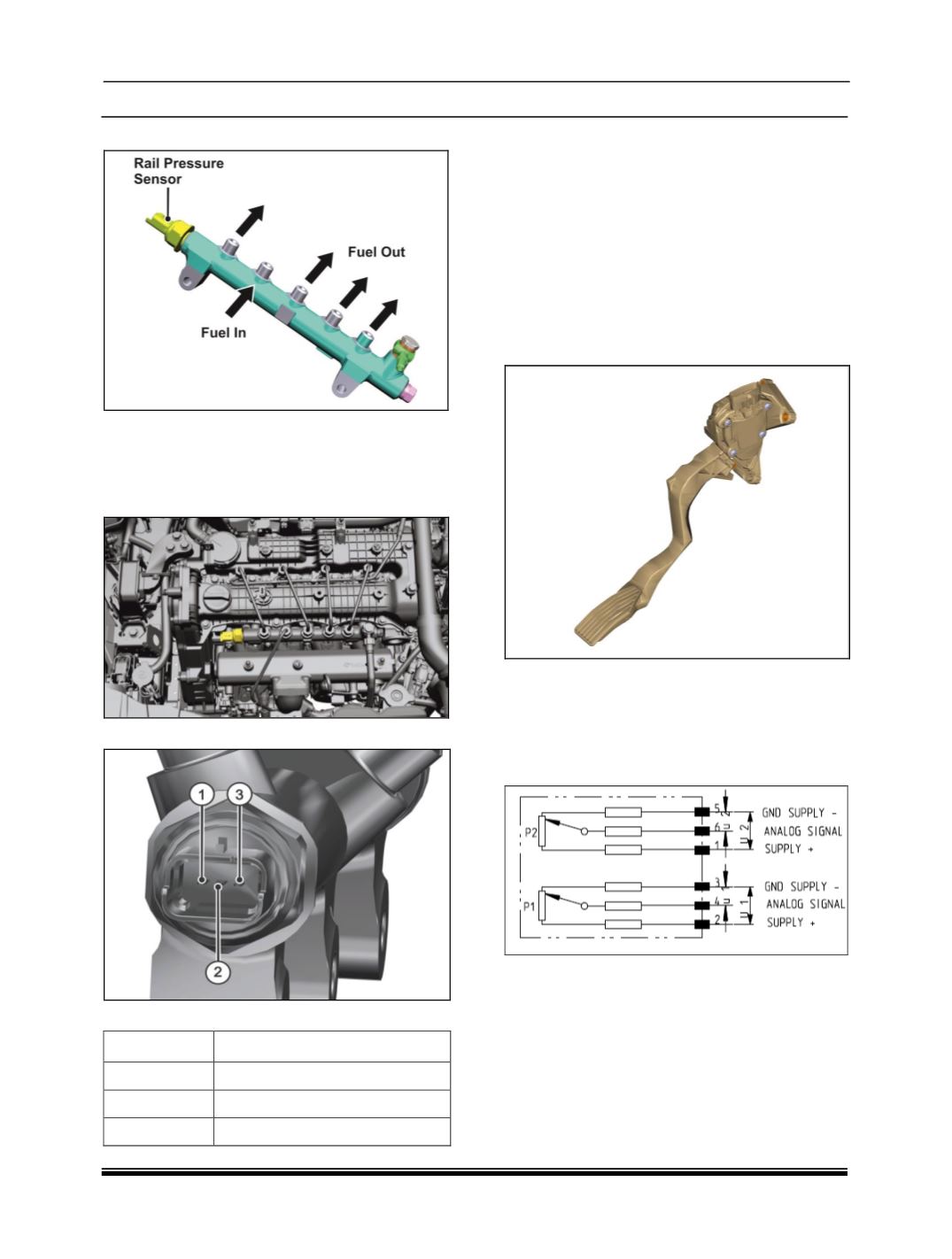

vi. RAIL PRESSURE SENSOR
This sensor is fitted on the fuel rail and gives a
close loop control of the rail pressure. Fuel is
maintained at a high pressure in the fuel rail
depending on requirement of the engine.
SENSOR LOCATION
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Output Signal
2
Ground
3
Supply Voltage
vii. THROTTLE PEDAL SENSOR
This sensor tells the ECU about the position of the
accelerator pedal. This input is used to determine
the torque required to drive the vehicle which in
turn determines the requirement of fuel quantity.
This is a dual potentiometer sensor for the safety
& correct inputs (Driver's request/Throttle position)
to ECU.
Throttle Pedal sensor checking values
1.25K ohm +/- 20% between terminals 1 & 5
0.9K ohm +/- 20% between terminals 2 & 4
Operating Voltage :
5V±10%
Operating Temperature :
-30
0
C to 85
0
C
Storage Temperature :
-40
0
C to 90
0
C
Maximum Load Current :
≤ 10mA
WIRING DIAGRAM
