1.5L REVOTORQ ENGINE
49

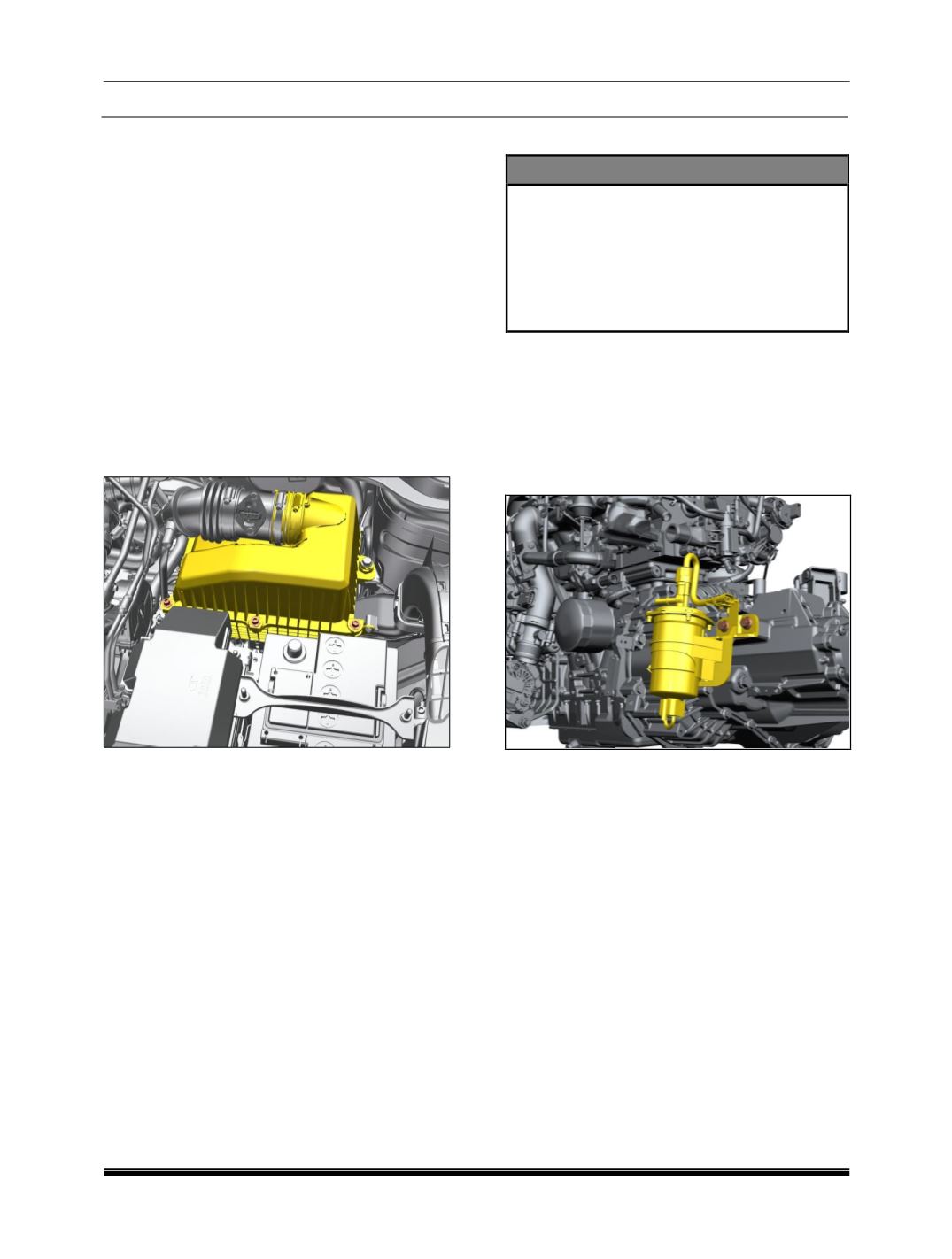

iii. AIR FILTER ELEMENT REPLACEMENT
DESCRIPTION
Proper maintenance of the air filter is essential
for vehicle performance and fuel economy. The
air filter element removes foreign material such
as dust, dirt, and other material from the
intake air, thereby preventing the engine from
damage due to contaminated air.
Inspect and clean the air filter element at every
routine service. Replace the air filter element as
per service schedule.
REMOVAL
1. Park the vehicle on a level surface, engage
the parking brake, and raise the hood.
2. Unscrew the front top three mounting bolts of
air filter assembly & three locator at back
side.
3. Detach the cover through hinge action, with
clamp and throttle intake pipe intact with
cover.
4. Remove the air filter element.
5. Gently tap loose any dirt or debris from the
filter. Clean the housing and air ducts as
well. Take care not to allow dirt and debris to
enter the air inlet to the engine.
INSPECTION
1. Hold the air filter element up to a light
source. Light should be visible through the
element. There should be no holes or tears
in the element.
2. The filter can also be cleaned using low
pressure compressed air.
3. Replace the filter element if torn or light is
not visible through the filter.
INSTALLATION
Follow the removal procedure in reverse
order.
iv. FUEL FILTER REPLACEMENT
WARNING
If diesel leakage is detected, do not start
the vehicle or allow an open flame or spark
near the vehicle. Have the fuel leak
repaired immediately.
The fuel system is under pressure. Relieve
fuel system pressure before replacing the
filter.
DESCRIPTION
The fuel filter is mounted on transaxle on the front
side in the vehicle. A band clamp secures the fuel
filter in place. Replace the fuel filter as per
service schedule. When the vehicle is operated in
adverse conditions or where fuel quality is
questionable, more frequent replacement may be
necessary.
REMOVAL
1. Relieve fuel system pressure by removing the
power supply to the system fuel pump and
cranking the engine.
2. Disconnect the negative (-) battery cable.
3. Disconnect both electrical connection to the
fuel filter.
