1.2L REVOTRON ENGINE
120

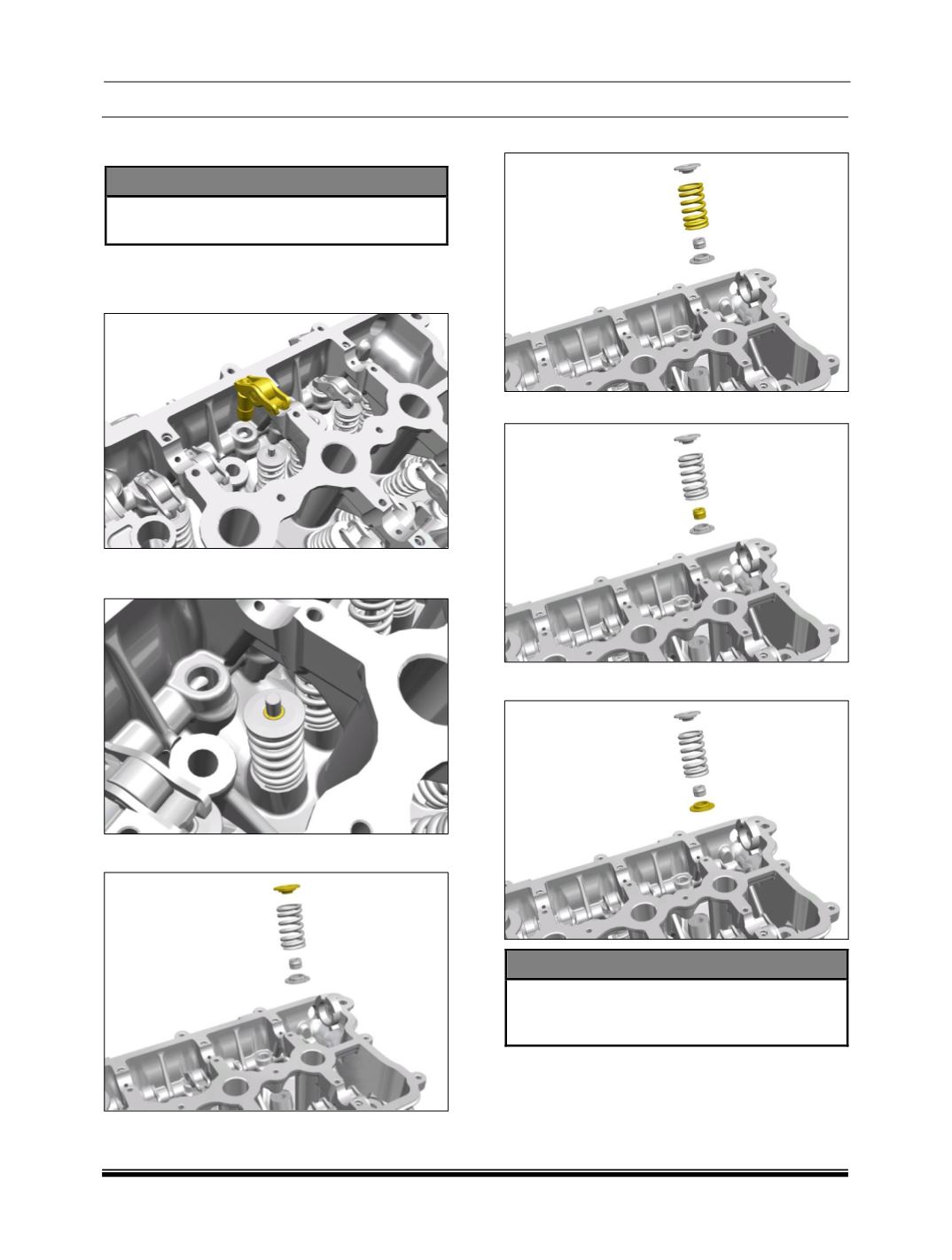

VIII. Removal of Cylinder Head Sub-
Assemblies
NOTE
To avoid damage to valve tips, do not
rotate the camshaft.
1. Remove the RFF along with Hydraulic Lash
Adjuster from the cylinder head as shown in
below figure.
2. Using Special Tool, to compress and remove
the valve spring lock halves.
3. Remove the valve spring retainer.
4. Remove the valve spring.
5. Remove the valve guide seal.
6. Remove the spring seat.
NOTE
Valve guide cannot be removed directly as
it is press fit, first tilt the head and remove
valves from bottom.
