1.2L REVOTRON ENGINE
119

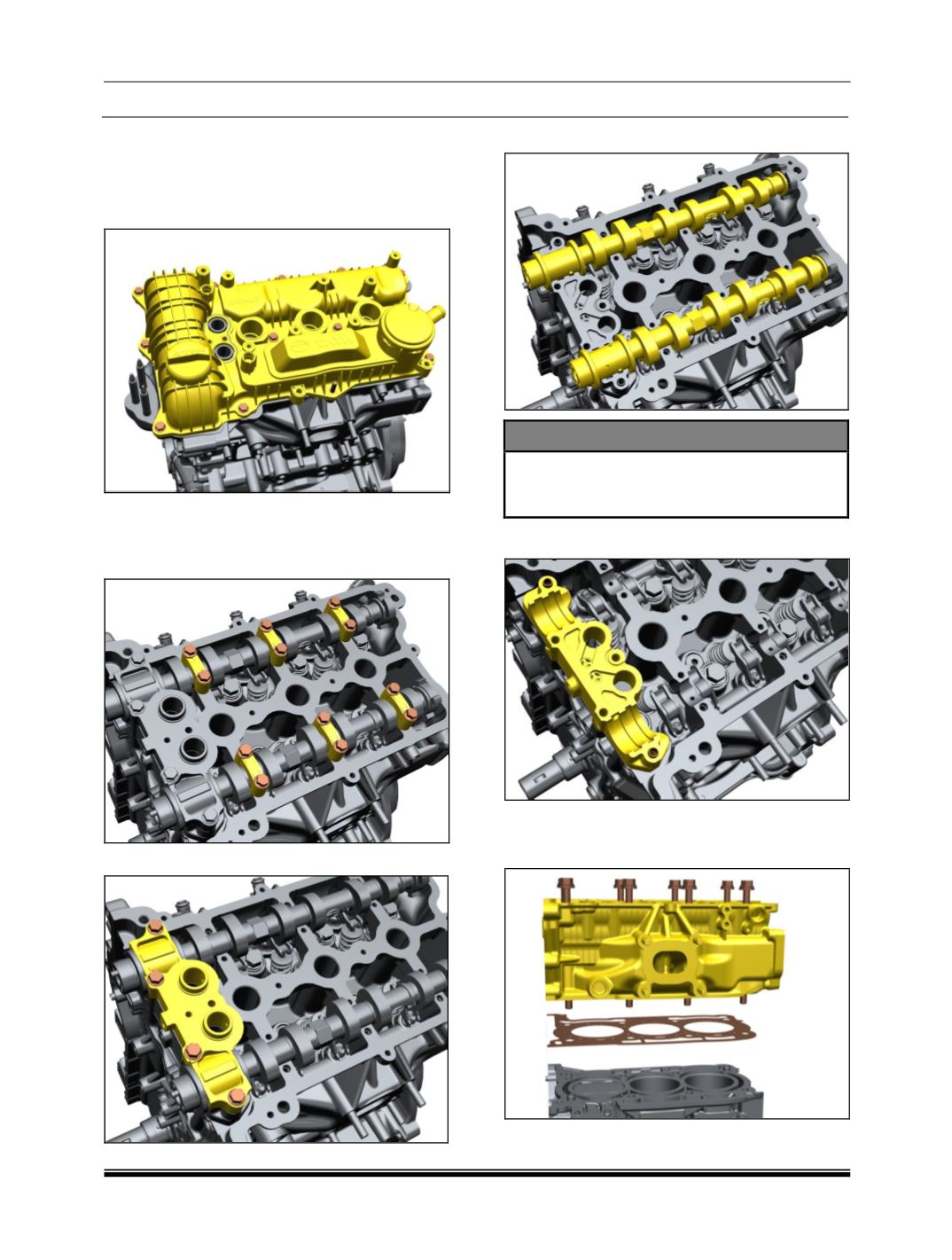

VII. Removal of Cylinder Head and
Camshaft.
1. Remove the Cylinder Head Cover from the
engine & carefully placed the rubber gasket
apart.
2. Remove the Cylinder Head attaching bolts
along with the washers, starting from the ends
of the cylinder head and working inwards to
the center.
3. Remove ITG Bearing Cap Upper.
4. Remove two camshafts.
CAUTION
When removing the camshaft, use care to
avoid damaging the bearing surfaces of the
cylinder head and the camshaft.
5. Remove ITG Bearing Cap Lower.
6. To dislocate cylinder head, use a soft mallet
or dead-blow hammer to break the head free
from the block, if necessary.
7. Place the cylinder head on the dismantling
table.
