SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
3

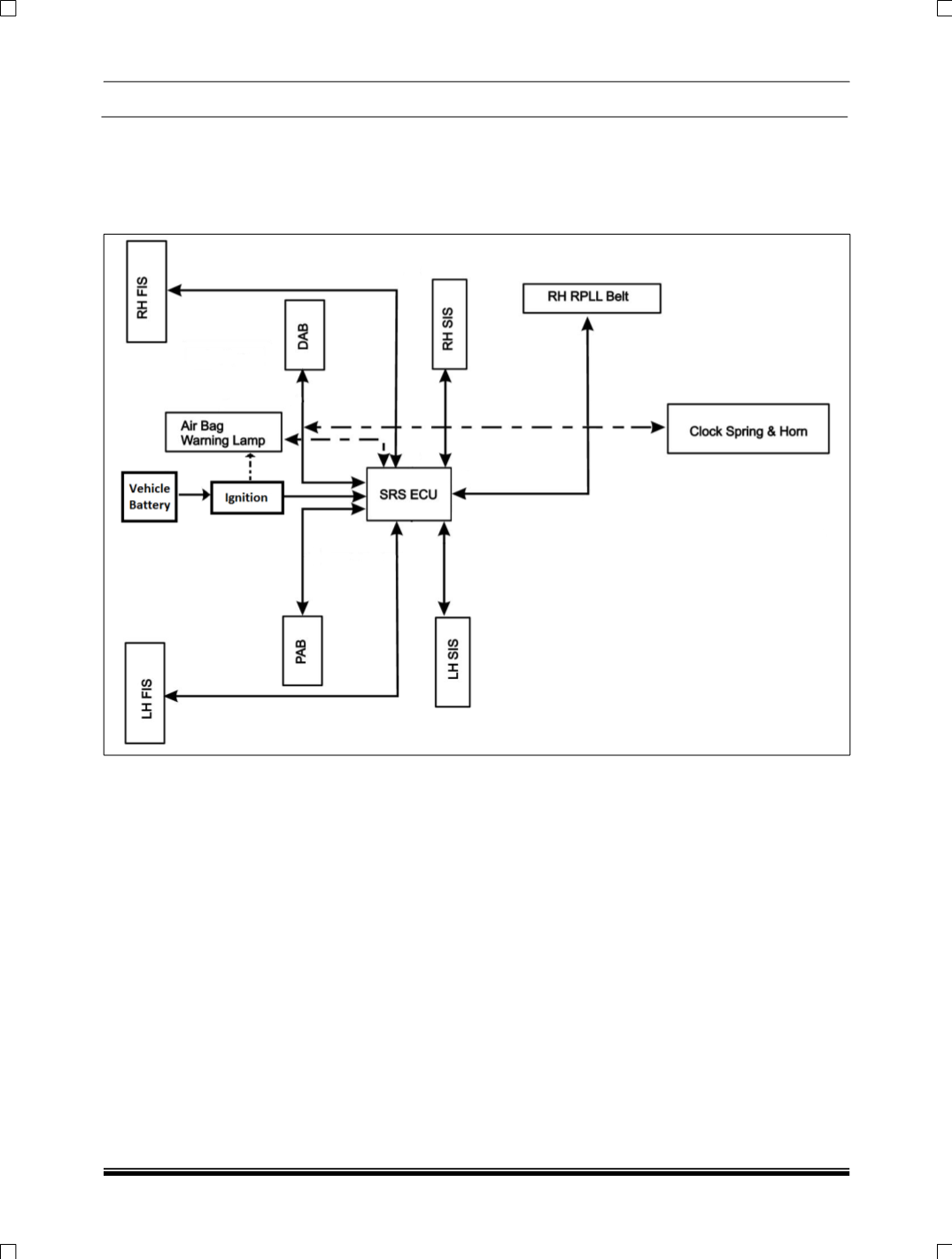

1.2. SYSTEM LAYOUT
RESTRAINT WITH AIRBAG
This Vehicle is equipped with 4 loops of Air bag systems.
The layouts of this loop is given below
A. DRIVER AIRBAG MODULE (DAB)
Fitted on the steering wheel with a horn pad
having tear seams.
B. PASSENGER AIRBAG MODULE (PAB)
Integrated type, rigidly attached to cross member
with dashboard visible surface having tear seams
in the area covered by the PAB module.
C. SRS CONTROL UNIT
Fitted on the floor tunnel along the centre line of
the vehicle under the center console.
D. AIRBAG WARNING LAMP
Fitted inside instrument cluster.
E. RETRACTOR PRETENSIONER AND LOAD
LIMITER (DRIVER) & LOAD LIMITER ONLY
(PASSENGER) CONFIGURATION BELTS
(RPLL) & (LL ONLY)
Fitted inside B pillar - RH side & LH side.
F. FRONT IMPACT SENSOR
(FIS) (RH & LH)
These sensors are mounted on vertical members
of front-end module on the both side i.e. RH & LH.
