1070 / 1119
FATC
47

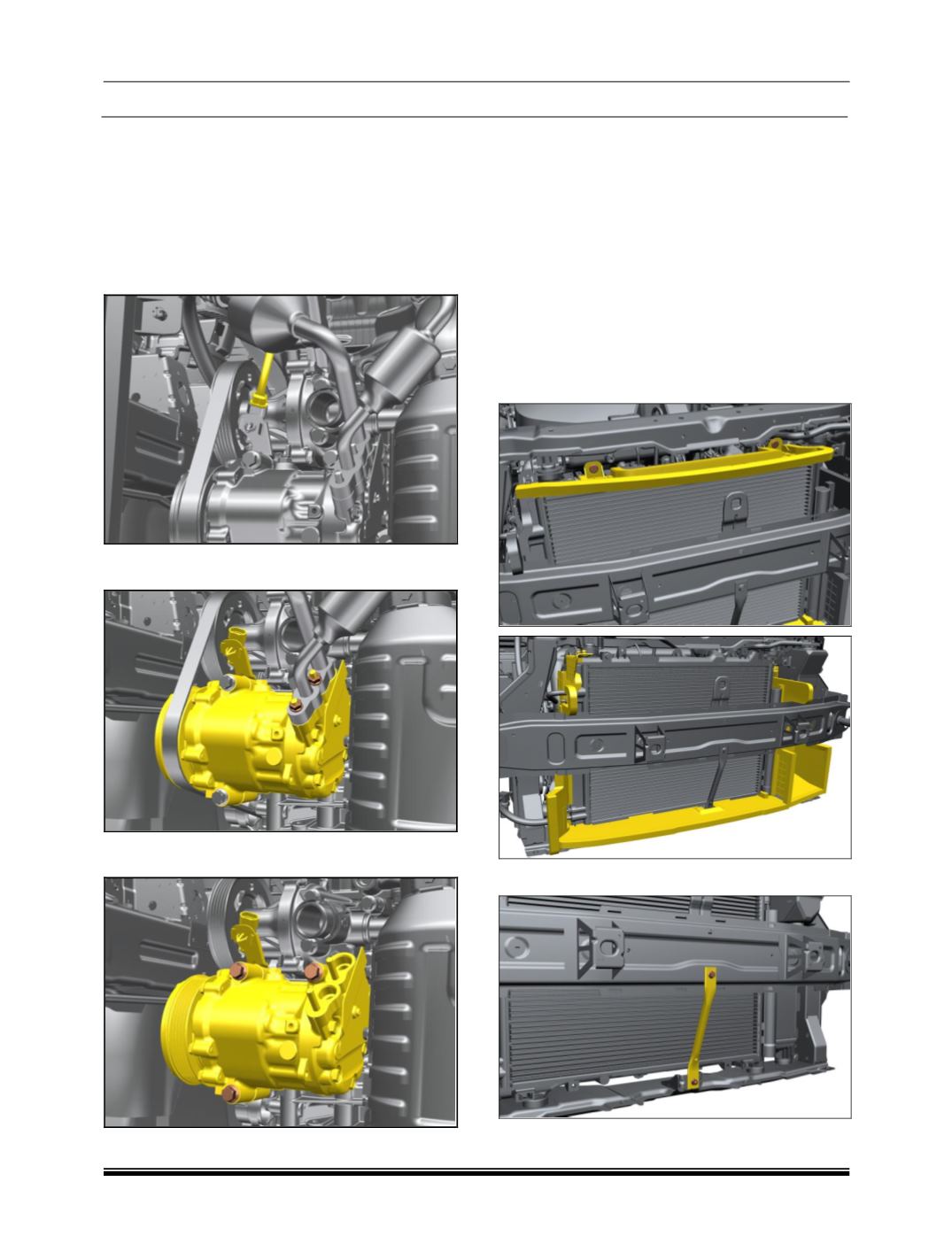

F. COMPRESSOR
REMOVAL
AND
ASEMBLY
1. Discharge the refrigerant using standard recover-
ing equipment. (
Refer maintenance section.)
2.
Remove the AC Compressor belt; (
refer AC
Compressor belt removal procedure in Engine
section.)
3. Remove Electrical Connection to compressor.
4. Disconnect the Suction line and the discharge
line.
5. Loosen and remove four mounting bolts and re-
move Compressor.
FITMENT
For fitment follow the reverse order of removal.
Tighten the following fasteners to the recommended
torque.
i) Compressor mounting.
ii) Refrigerant lines on compressor.
G. CONDENSER REMOVAL AND ASSEM-
BLY
1. Discharge the refrigerant.
2. Remove front bumper assembly
(refer front
bumper removal procedure in body section).
3. Remove Radiator seals.
4. Remove Support Tube.
