STEERING
10

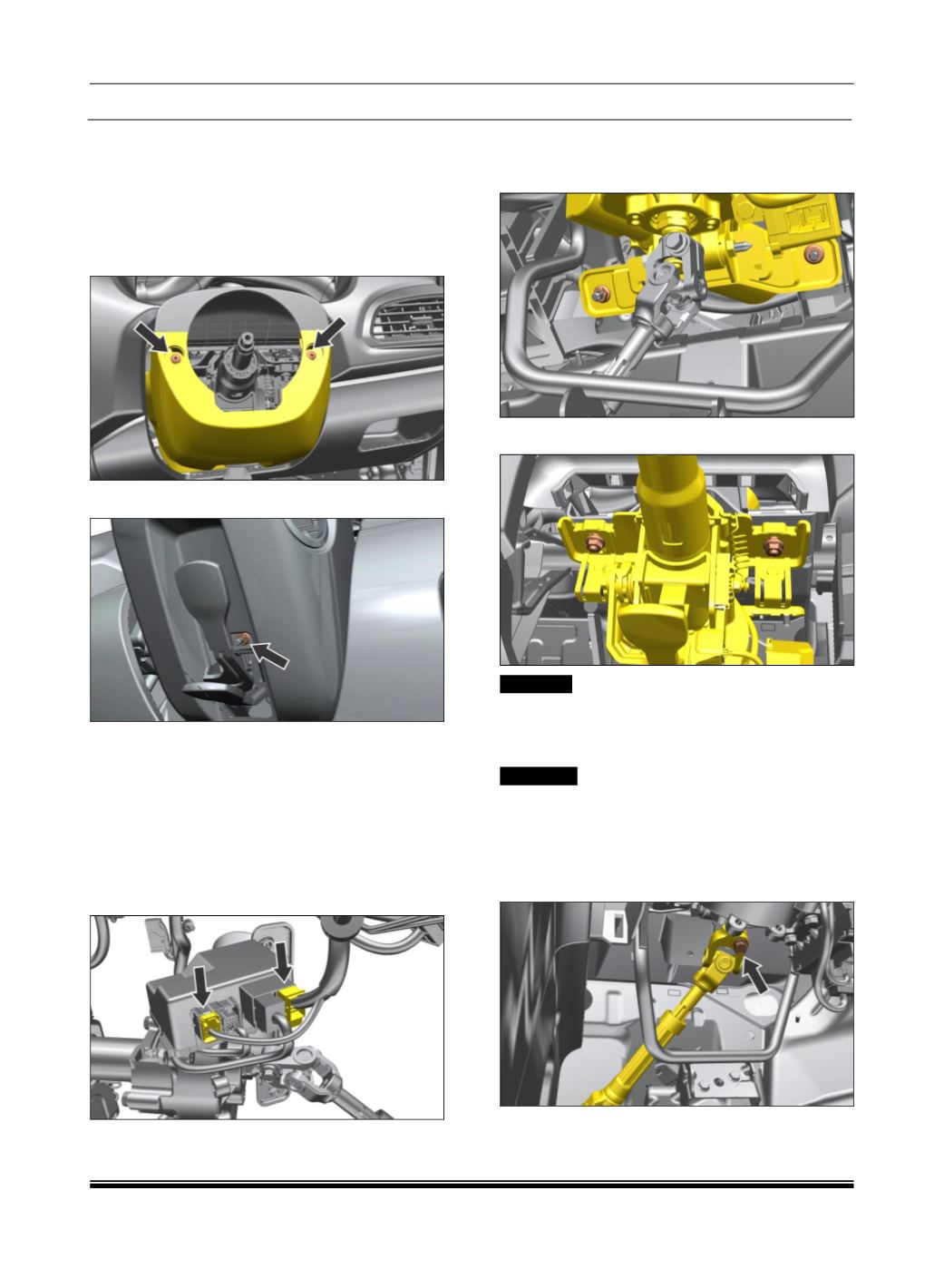

2.3.2 STEERING COLUMN REMOVAL
1. Disconnect the connection of battery.
2. Remove steering wheel (
Refer Steering wheel
removal procedure).
3. Remove 2 nos screws of nacelle bottom cover
& take out the nacelle bottom cover.
4. Remove the mounting nut of steering column.
5. Remove combination switch.
(Refer body
section / Electrical section.)
6.
Remove the clock spring. (Refer body section /
Electrical section.)
7. Remove the dash board bottom cover (
Refer
body section
).
8. Disconnect the electrical connector’s from the
ECU.
9. Remove the bolt nut of the lower mounting
bracket of steering column which is mounted
on CCB.
10.Remove the 2 nos mounting nuts.
CAUTION
Hold the steering column to aviod sudden fall and
damage to steering column while removing
mounting nuts of column.
WARNING
Hold the steering column to aviod sudden fall of
the steering column that can cause injury to
operator.
11. Remove the mounting screw of upper
universal joint.
12.Disengage the steering column assembly from
the upper universal joint and take out the
steering column.
