ELECTRICAL
152

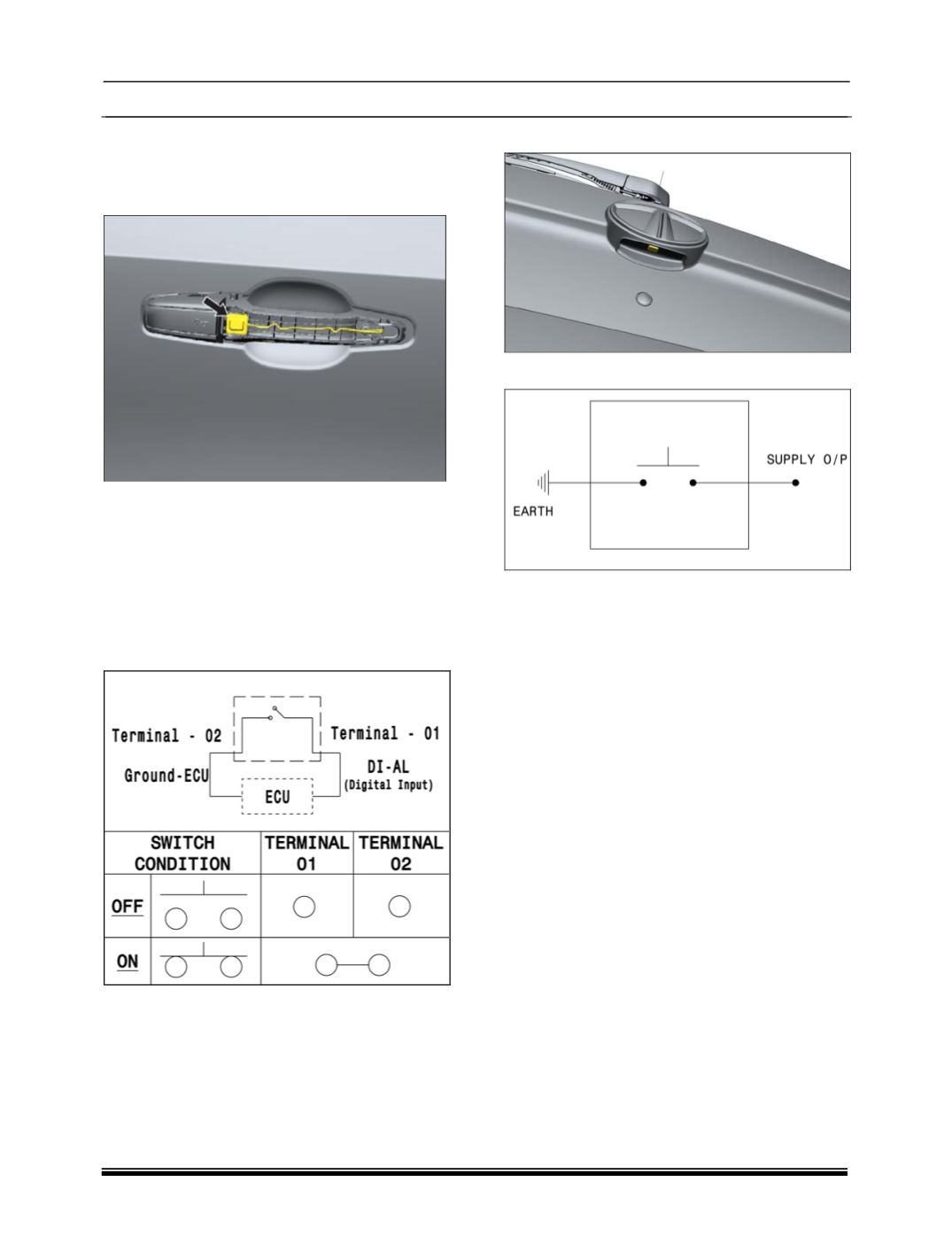

4 DOOR AND TAILGATE HANDLE SWITCHES
WITH HARNESS
It is passive device which provides trigger to
PEPS ECU to access the vehicle i.e. lock / unlock
Door handle switches are responsible for
accessing vehicle doors for passive entry.
LOCATION
Three switches are available in vehicle –
1. Driver door switch
2. Co-driver door switch,
CIRCUIT SCHEMATICS
REMOVAL
For removal refer door handle switch and tailgate
switch removal in above sections.
Tail gate switch
CIRCUIT SCHEMATICS
