728 / 924
ELECTRICAL
110
16
Door Latch Reset Switch Signal Driver
/ Door Window Down Switch
17
Tailgate Switch Input
18
Wiper Front Park Signal
19
Turn Left Switch Signal
20
Driver Door Lock Signal
21
Ignition Key State CRANK
22
Brake Light Switch Signal
23
Ignition Key State ACC
24
Wash Front Switch Signal
25
Wiper Front Switch Signal Intermittent
26
Crash Signal_HW
27
Door UnLock Control Driver/ Door
UnLock Control TailGate
28
Hazard Switch LED Signal/ / Door
Window Output
29
Door Lock Control All
30
Horn Signal
31
Head Lamp Low Beam Relay/ Follow
me home relay
32
Internal 5V
33
Internal GND1
34
Battery GND1
35
LIN 1
36
Wiper Front Speed Switch Signal
37
Fog Lamp Front Switch Signal
38
Ambient Light Switch Signal
39
Reverse Gear Signal
40
Wiper Front On Off Relay Control
41
Wiper Rear Relay Control
42
Door Unlock Control Others
43
Wake Up Input
44
Front Fog Lamp Relay / Front fog
facsia switch telltale
45
Rear Defogger Relay Control
46
Internal_12V
47
Battery GND2
48
CAN Chassis H
49
CAN Chassis L
50
Fog Lamp Rear Switch Signal
51
Rear Defogger Switch Signal
52
Hazard Switch Signal

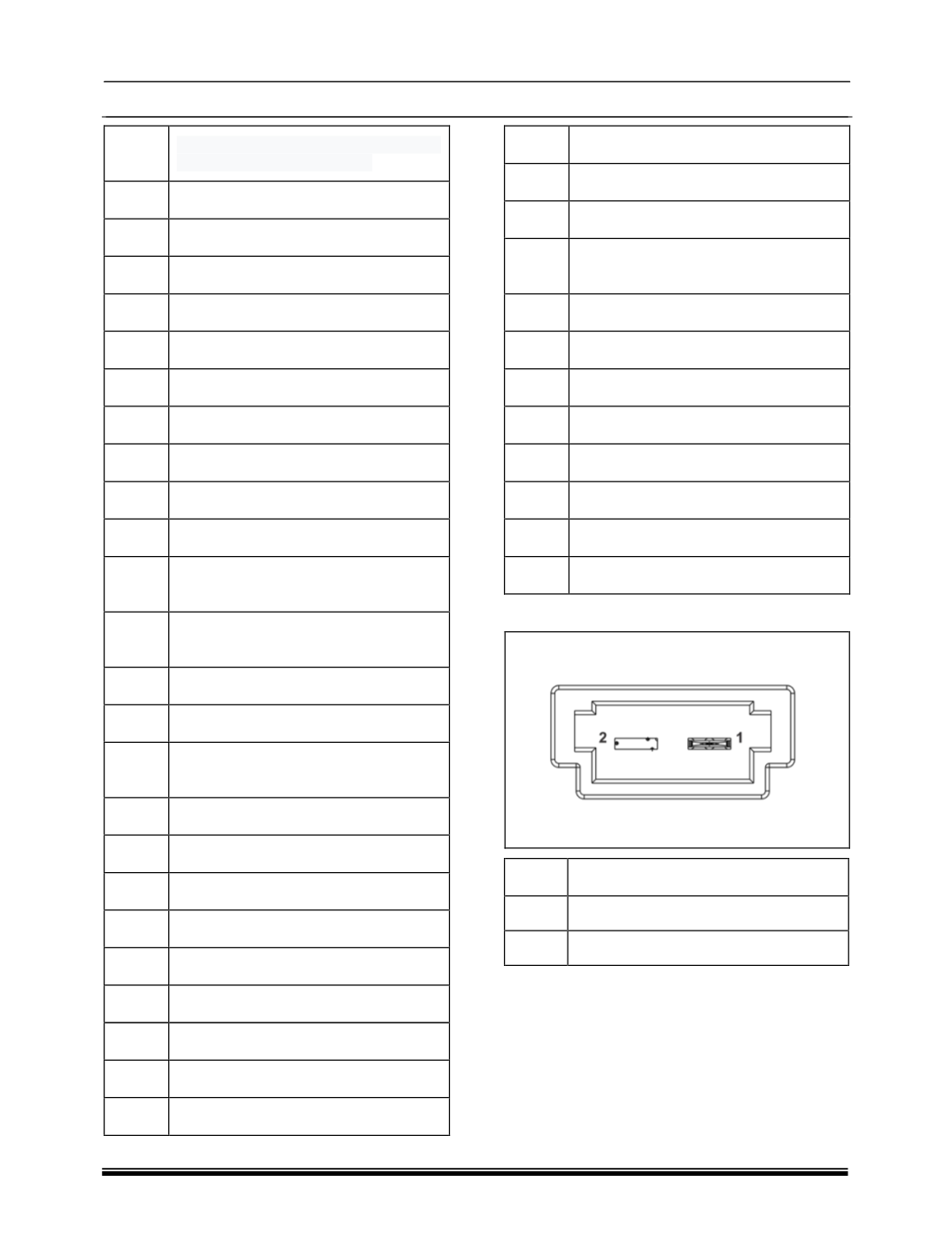

2. CONNECTOR E
PIN
DETAILS
1
Power Supply 3
2
-
