ELECTRICAL
109

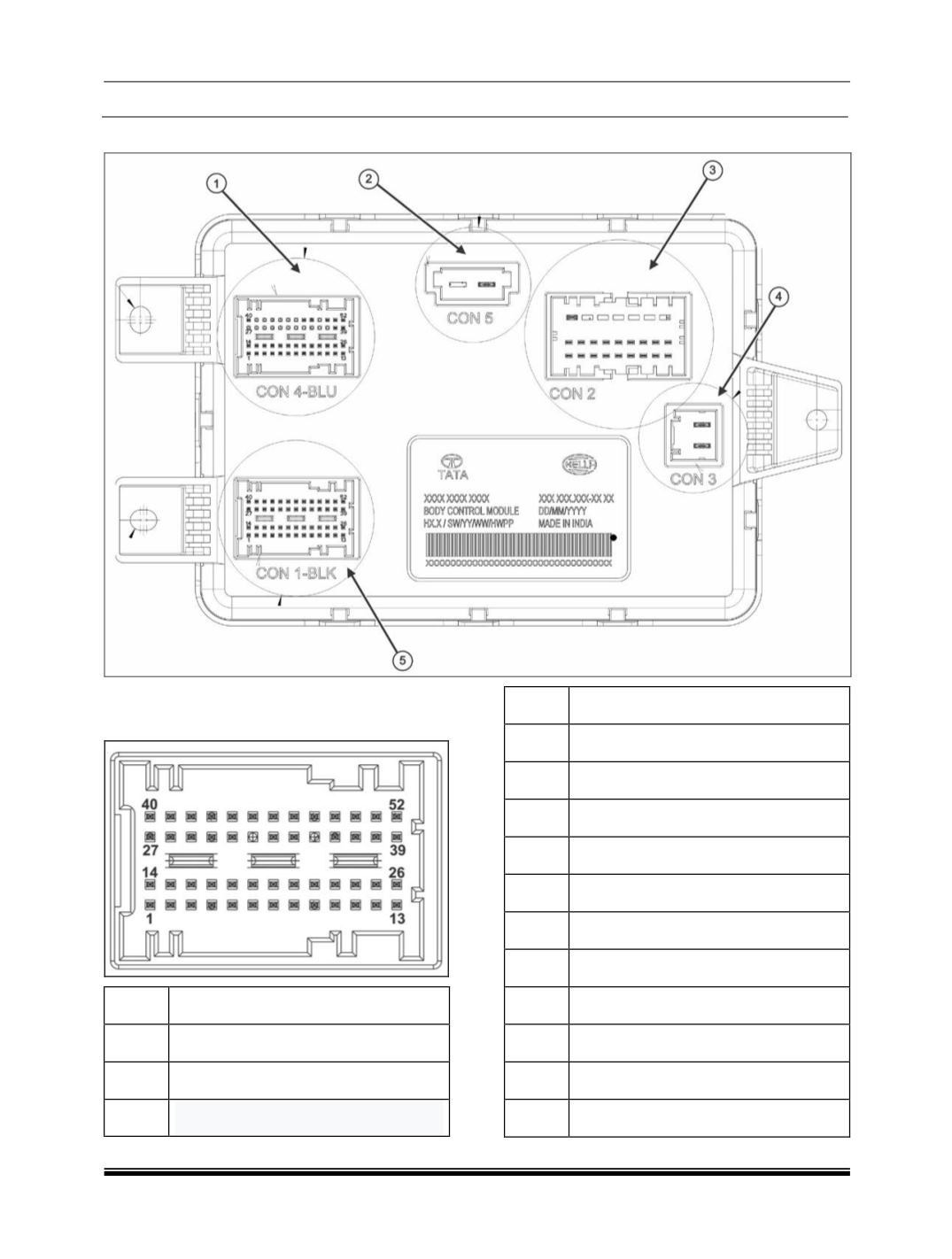

28.1 CONNECTION DETAILS (PINOUT DEATAILS)
PINOUT DETAILS
1. CONNECTOR A
PIN
DETAILS
1
Driver Door State
2
Transport Link Signal
3
Door Latch Set Switch Signal Driver /
Door Window Up Switch
4
Head Lamp ON Signal
5
Wiper Rear park Signal
6
ESS switch Signal
7
Turn Right Switch Signal
8
Driver Door Unlock Signal
9
Ignition Key State IGN
10
Key IN Signal
11
Infotainment Removal Detection
12
Wash Rear Switch Signal
13
Wiper Rear Mode Switch Signal
14
Co-driver / Other Door State
15
Position Lamp Switch Signal
