2.41 FRONT FENDER
REMOVAL
1. Open the Bonnet
2. Remove the mounting clip of Plenum cover
both side.

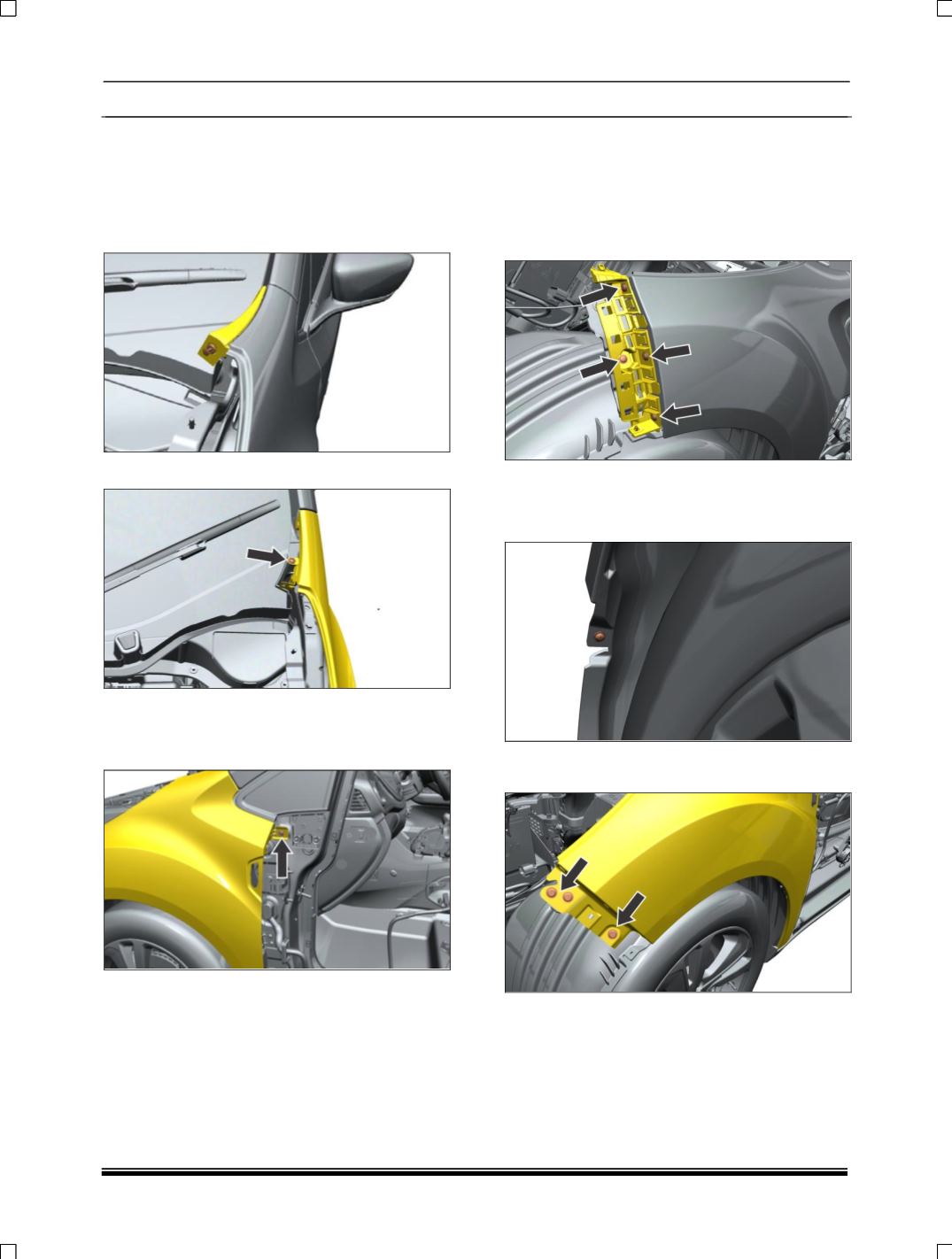

3. Remove mounting screw as shown in figure.
4. Remove front door. (For procedure refer front
door removal removal)
5. Remove fender mounting bracket bolt.
6. Remove the Head lamp (For procedure refer
Head lamp removal process.)
7. Remove front Bumper. (For procedure refer
Front Bumper removal process.)
8. Remove the mounting screw of mounting
bracket.
9. Remove front wheel arch liner. (For procedure
refer front wheel arch liner removal process.)
10.Remove lower mounting screw.
11.Remove front mounting screw as shown in
figure.
12.Remove front fender assembly.
FITMENT
For fitment follow reverse procedure of removal.
