7. EXPLODED VIEWS FRONT SUSPENSION

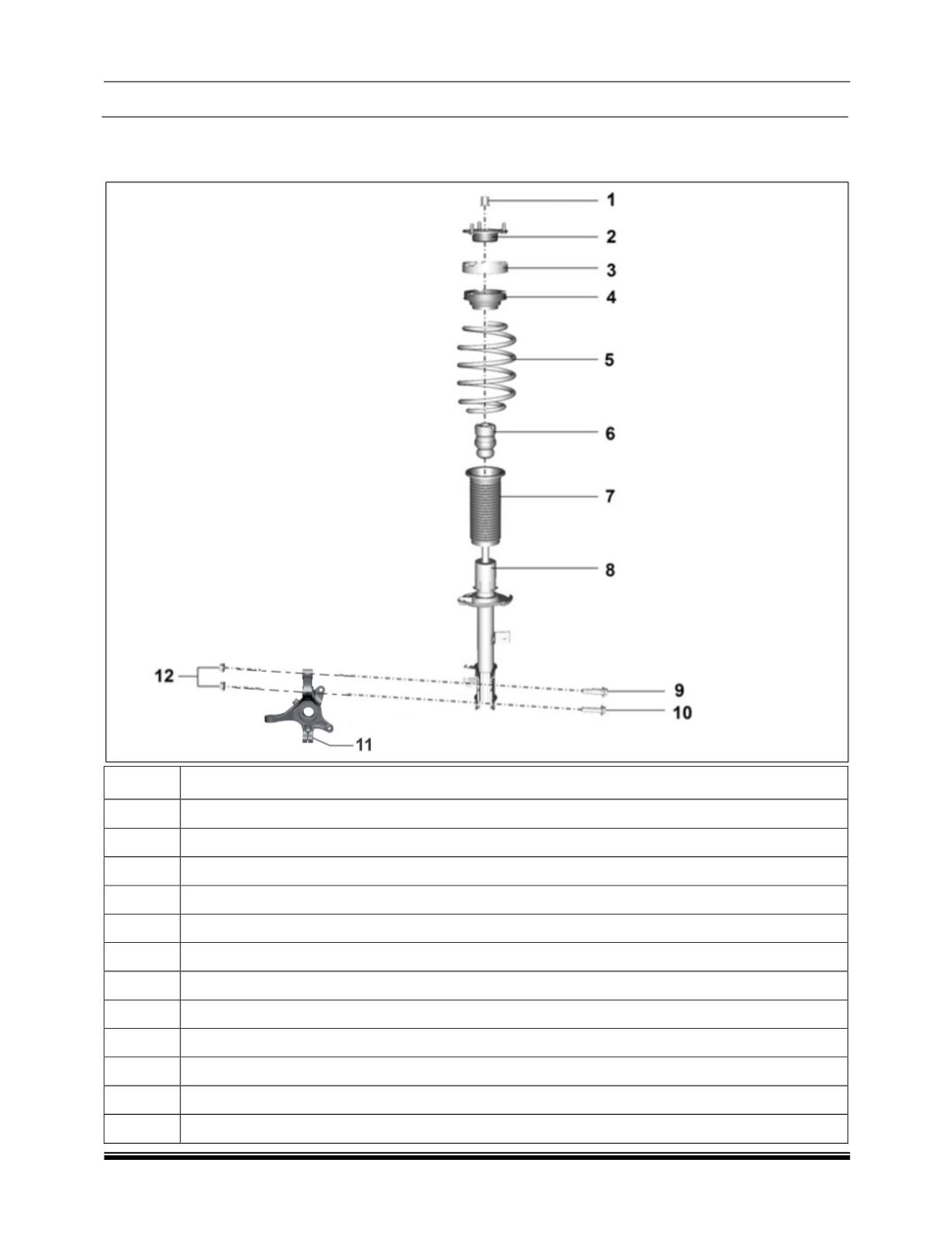

A) ASSEMBLY FRONT STRUT EXPLODED VIEW
SR NO.
DESCRIPTION
1
H/FL NYLOC NUT M12X1.25 TOP
2
ASSEMBLY TOP MOUNT
3
BEARING DUST COVER
4
ASSEMLY BEARING COMPLETE
5
SPRING FRONT SUSPENSION
6
FRONT ASSEMBLY BUMP STOPPER
7
DUST COVER
8
ASSEMBLY FRONT DAMPER
9
ECCENTRIC BOLT
10
STEPED SUPPORT BOLT
11
KNUCKLE
12
H/FL NUT M12X1.25
