1.2L REVOTRON ENGINE
32

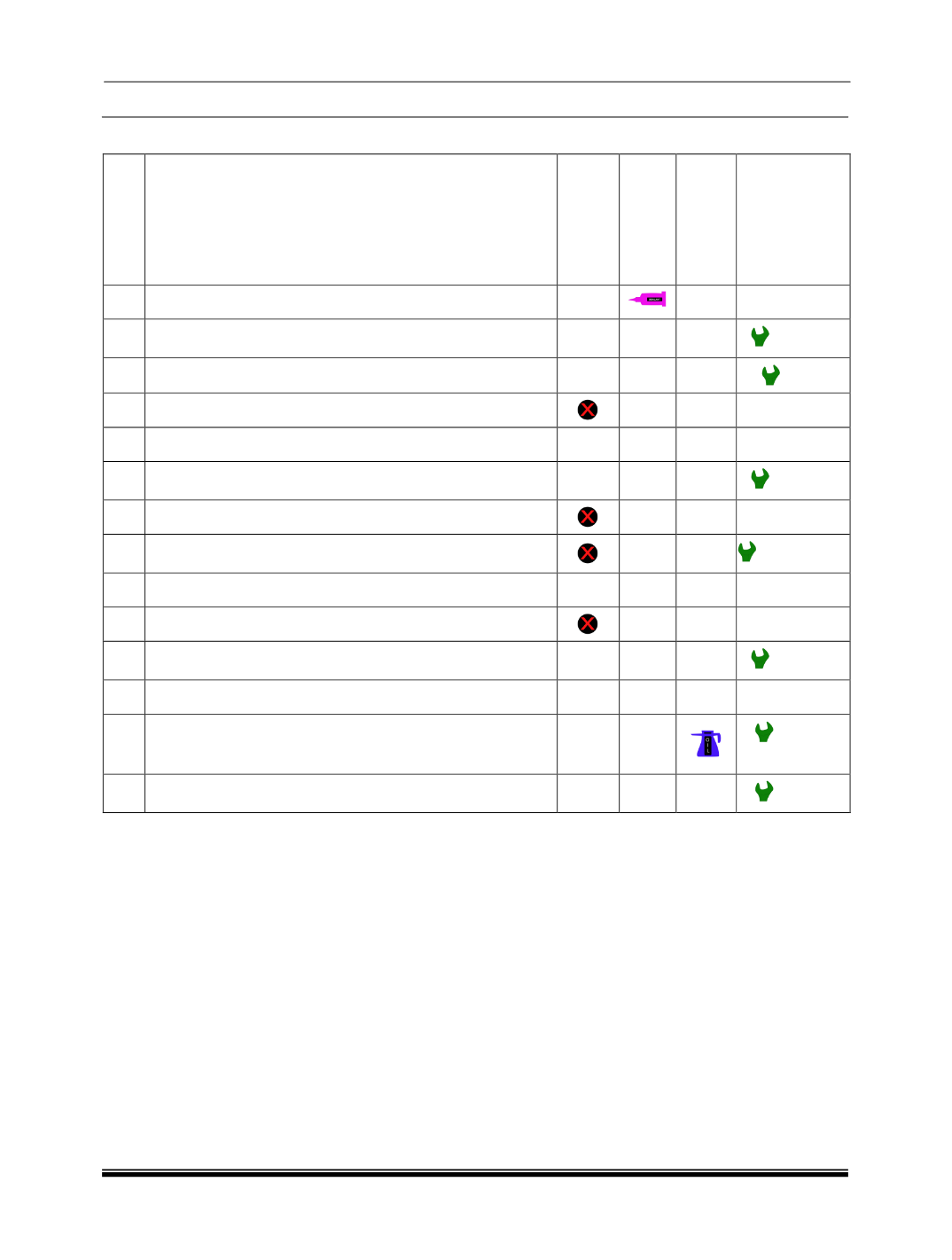

Lubrication Pump and Lines :
No.
DESCRIPTION
NO REUSE
SEALANT
LUBRICATION
TORQUE
(Kgf.m)
1 Oil Pump Assy Complete
2 Hex FL Bolt M8X55 for Oil Pump Assy (6 Qty)
2.5
3 Hex FL Bolt M8X30 (2 Qty)
4 Oil Seal (Crankshaft) (Front)
5 Oil Pump
6 Hex FL Bolt M6X28 (13 Qty)
1.0
7 O-Ring (For Strainer assy)
8 Flanged Clinch Nut M6 (2 Qty)
1 + 0.2
9 Strainer Assembly (For Oil Pump)
10 Gasket (For Filter)
11 HEX FL BOLT M8X22 (For Filter) (3 Qty)
2.5
12 Adaptor (For Oil Filter Mounting)
13 Oil Filter Assembly
¾
th
Turn
14 Oil Pressure Switch
3
