SUSPENSION
6

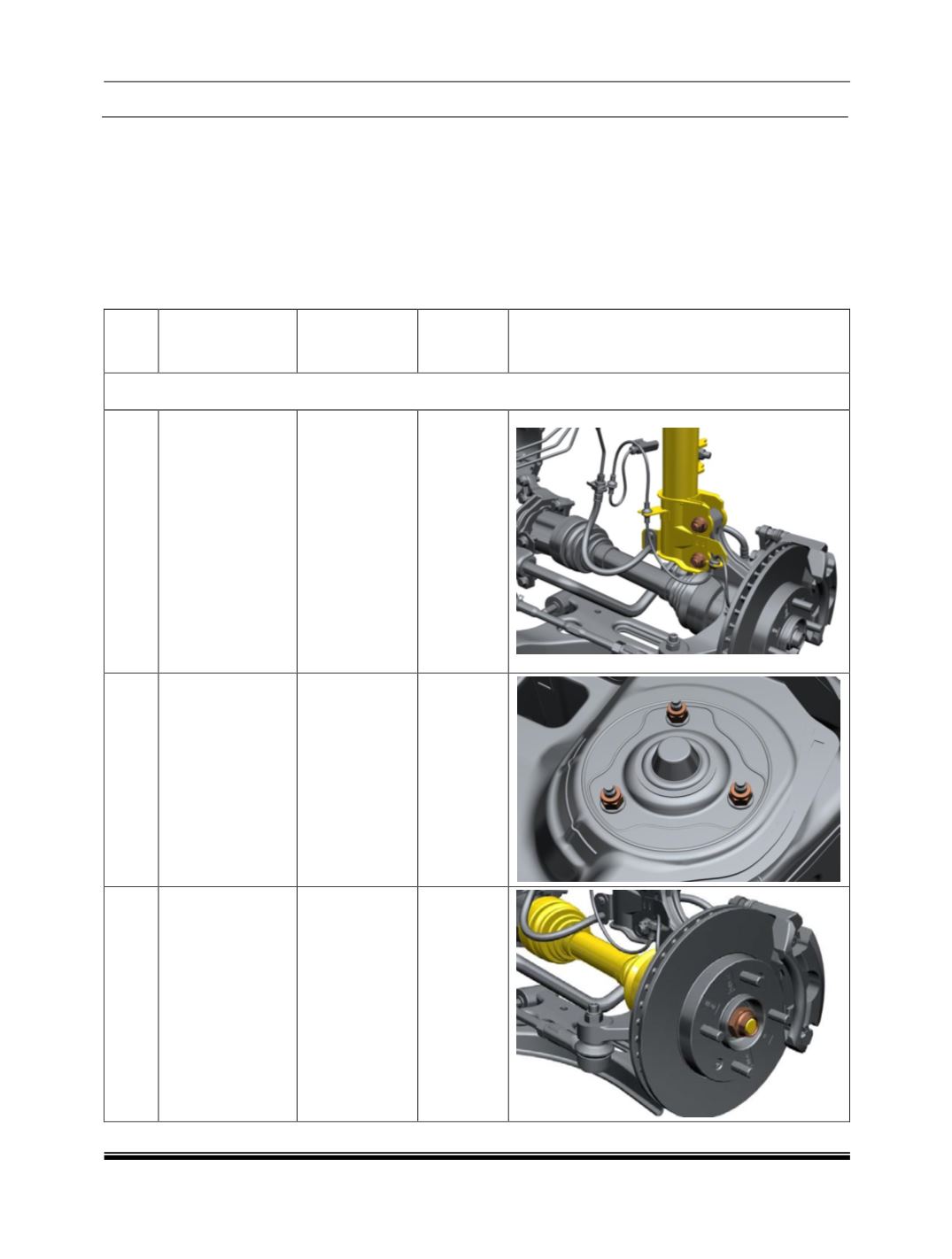

3. TIGHTENING TORQUES
NOTE:
Unless otherwise specified, no oil/lubricant/thread locker allowed on fastener, fastener bearing surface or
surface where the fastener will sit while assembly. All self-locking type fasteners not to be re-used once joint
is dismantled.
All fasteners to be paint marked after torque tightening is applied.
*
MARKED BOLTS TO BE TIGHTEN IN PRE-LOADING CONDITIONS.
SR.
NO.
DESCRIPTION
FASTNER
TYPE
TORQUE
VALUE
(Kg-m)
LOCATION
FRONT SUSPENSION
1.
Front strut
mounting on
knuckle
M12X30
12 ± 0.6
2.
Strut top
mounting
NYLOC NUT
M8
2.3 ±0.1
3
Driveshaft lock
nut
M22X1.5
24.5 ± 1.5
