DRIVESHAFT -

DIESEL

10

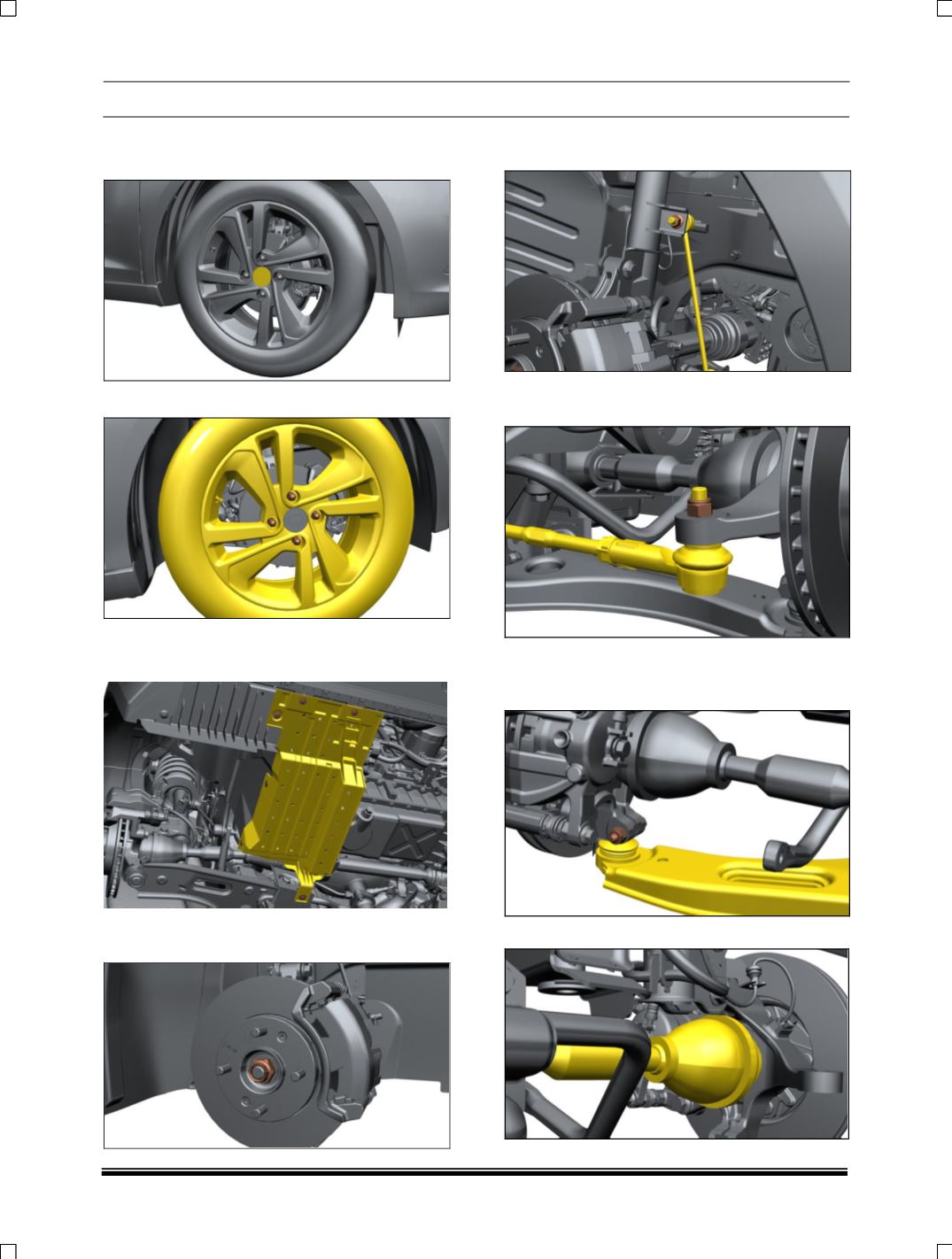

10. RH SIDE DRIVE SHAFT REMOVAL

1. Remove Wheel Cap.

2. Remove Front wheel.

3. Lift the vehicle.

4. Remove Mud liner front RH.

5. Apply Brake and Remove Drive shaft Lock

Nut.

6. Use allen Key and Disconnect Upper ARB

Link from Front Strut.

7. Remove ball joint (steering rack) into knuckle

using tool part no.

2702 5890 4602

.

8. Remove Nyloc Nut mounting on LCA and

Disconnect LCA (Lower Control Arm) ball joint

from Knuckle.

9. Remove Drive shaft from Knuckle End.
