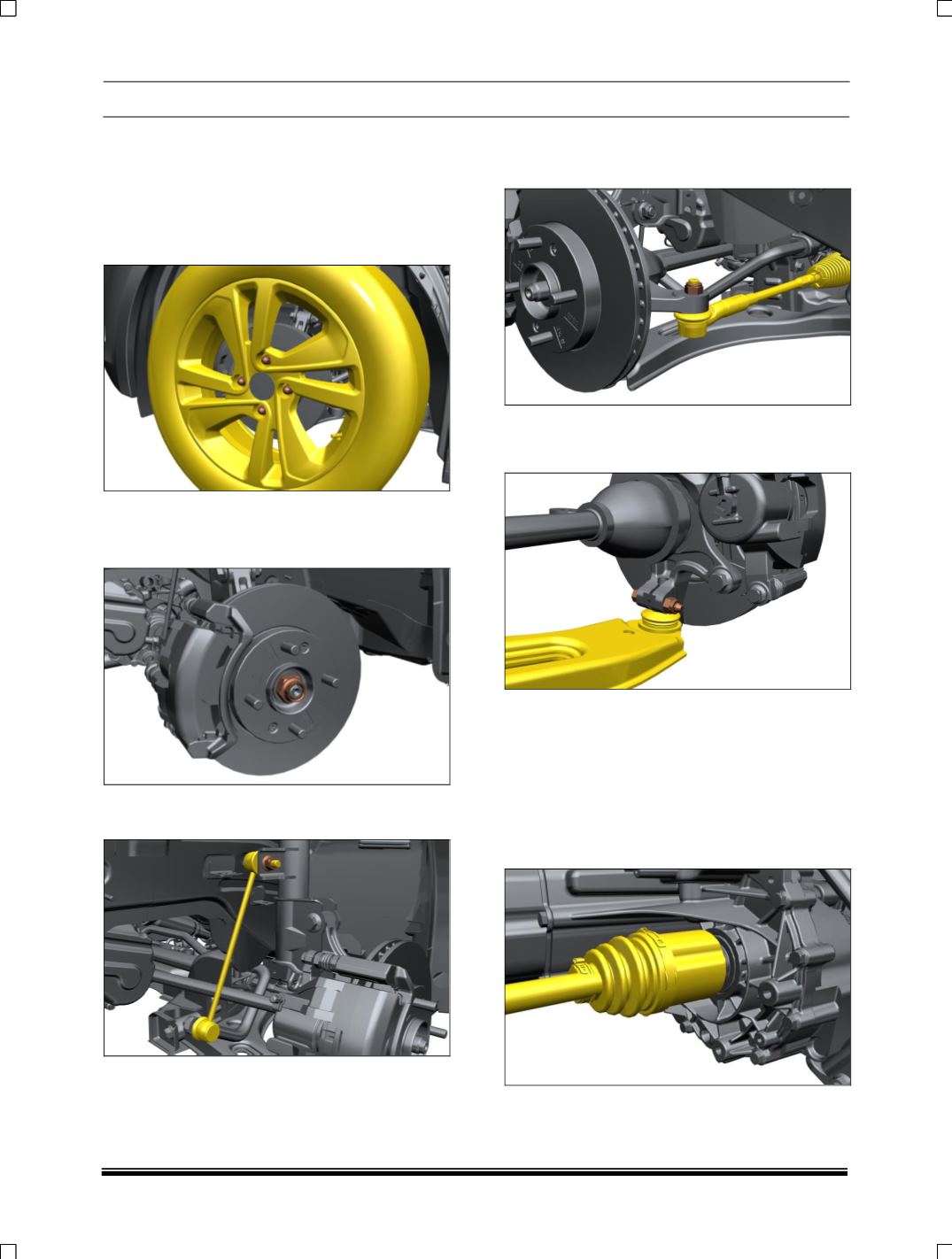

8. ON VEHICLE REMOVAL OF DRIVE SHAFT
(LH & RH SIDE)
1. Remove Wheel Cap.
2. Loosen Front wheel nuts.
3. Lift the vehicle
4. Remove Front Wheels.
5. Remove Mud Liner.
6. Apply Brake and Remove Drive shaft Lock
Nut.
7. Use Allen key and disconnect upper ARB link
from Front strut.
8. Remove ball joint (steering rack) from steering
knuckle from RH & LH sides using tool part
no. 2702 5890 4602.(Refer Steering Section)
9. Remove stub axle ball joint Mtg. & Remove
Lower Control Arm (LCA) using tool part no.
2702 5890 4602.(Refer suspension section)
10. Take out LH Drive shaft from Knuckle End.
11. Swing out drive shafts from transaxle and
place it suitably alongside.
Do not pull drive shaft excessively as the
plunge joint will come out of housing and
damage the boot Pry. Plunge joint housing for
taking out joint out of splines. Do not place the
CV drive shaft on rough / uncleaned surfaces.
This might damage the drive shaft boot.
