NOTE:
Do not mix clutch mounting bolts with other
fasteners. Do not use longer or shorter screws.
Longer screws may not tighten the clutch at all.
Shorter screws will not provide enough threads to
achieve desired tightening.
While tightening the clutch mounting screws
check aligning mandrel for continuous free
sliding to ensure concentric installation of
clutch disc which will avoid trouble during the
installation of the transaxle.

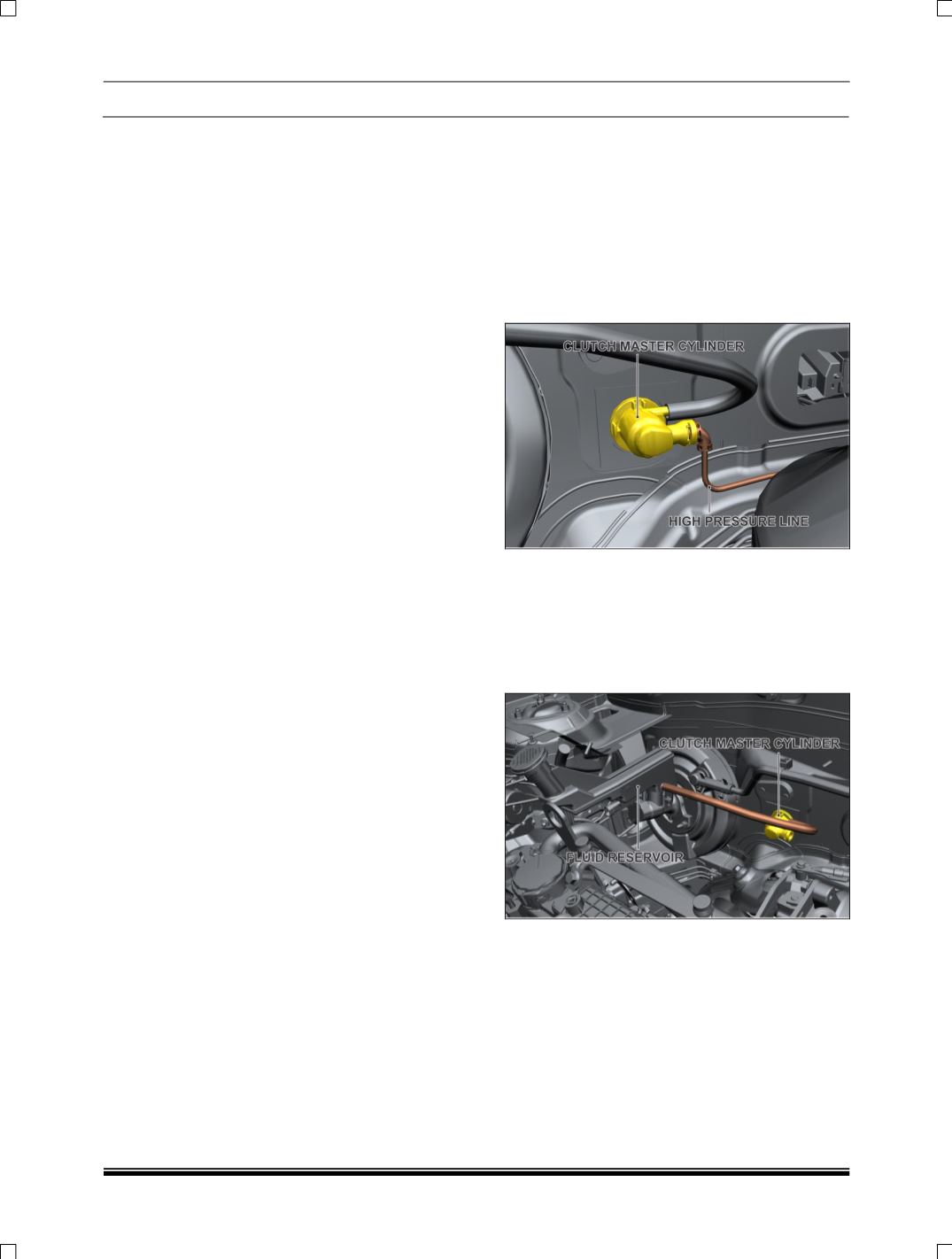

E. CLUTCH MASTER CYLINDER REMOVAL
1. Disconnect the battery connections.
2.
Remove the splash guard and drain the
clutch fluid from the hydraulic adapter.
(For
procedure refer clutch fluid draining
procedure in this section.)
3. Pull out the clip using a screw driver and
disconnect the high pressure line from clutch
master cylinder by pulling it out.
NOTE
After disconnecting the high pressure line, plug
the CMC opening with suitable cap to avoid entry
of any contaminants.
4. Disconnect the hose connecting clutch
master cylinder by removing the clamp.
NOTE:
Collect the fluid from the fluid reservoir in a clean
container. OR Ensure that fluid does not fall from
the hose.
